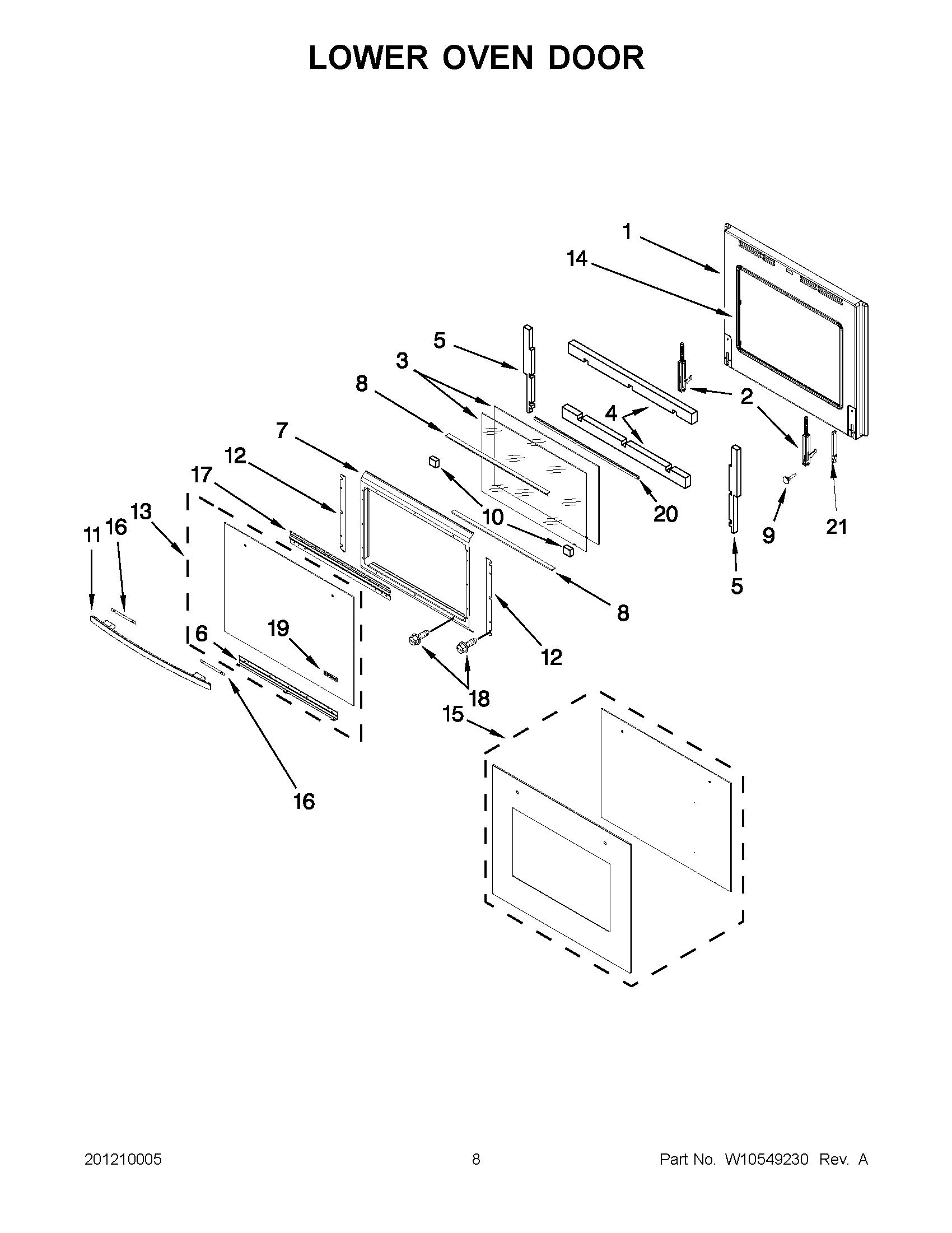

JJW3830WR02 04 – LOWER OVEN DOOR

Products

Position	Product
1	MAY W10187019
2	HINGE, DOOR (2) (STAINLESS)
2	HINGE, DOOR (2) (BLK/WHT/OILD BRNZ)
3	MAY W10176100
4	MAY W10273676
5	MAY W10273591
6	BRACKET, DOOR CLIP
7	MAY W10176103
8	INSULATION, OVEN DOOR
9	MAY W10176233
10	MAY W10296505
11	MAY W10186755
11	MAY W10186756
11	MAY W10186757
12	MAY W10186882
13	MAY W10186890
13	GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE)
14	MAY W10213803
15	KIT, GLASS ASSY. (BLACK)
15	MAY W10176224
15	KIT, GLASS ASSY. (STAINLESS)
16	MAY W10213722
17	MAY W10176126
18	MAY 7101P426- 60
19	ASSEMBLY, BADGE (OILED BRONZE)
19	ASSEMBLY, BADGE (BLACK)
19	ASSEMBLY, BADGE (STAINLESS)
20	MAY W10305979
21	MAY W10175993
