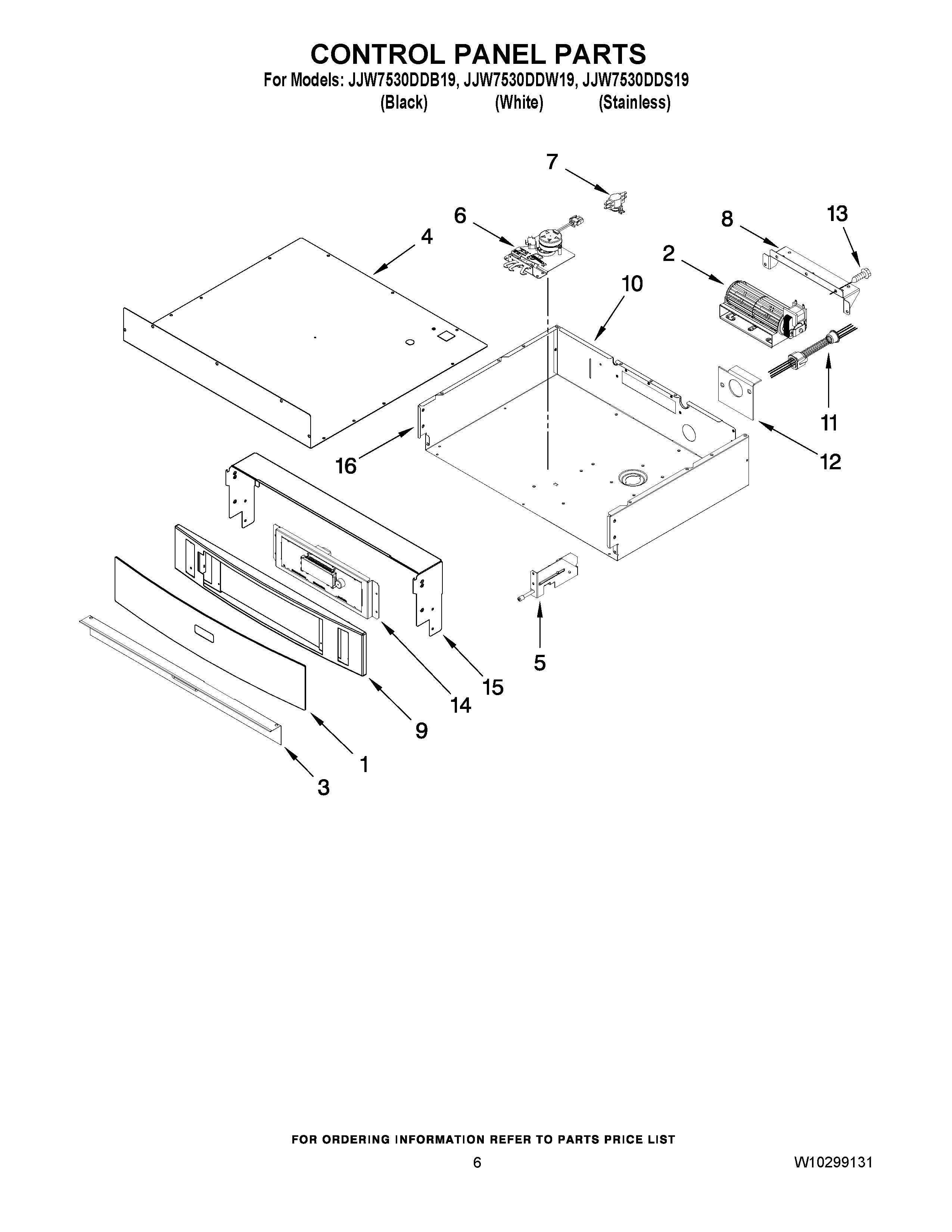

JJW7530DDB19 04 – CONTROL PANEL PARTS

JJW7530DDB19 04 – CONTROL PANEL PARTS

Written by

in

JJW7530DDB19 04 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 7912P299-60
1	MAY 7912P297-60
1	MAY 7912P296-60
2	FAN, TANGENTIAL
3	MAY 3608F107-70
4	MAY 2624F098-44
5	ASSY., LIGHT SW
6	ASSY., LATCH DOOR
7	MAY 7403P449-60
8	BRKT., COOLING FAN
9	FRAME, CNTRL ASSY.
10	PANEL, CONTROL BOX REAR
11	ASSEMBLY, CABLE
12	MAY 8020P048-60
13	MAY 7101P426- 60
14	MAY 8507P090-60
15	SUPPORT, TOP CNTRL
16	PANEL, CNTRL SIDE (RIGHT)
16	PANEL, CNTRL SIDE (LEFT)
