JJW7530DDS 03 – DOOR

JJW7530DDS 03 – DOOR

Written by

in

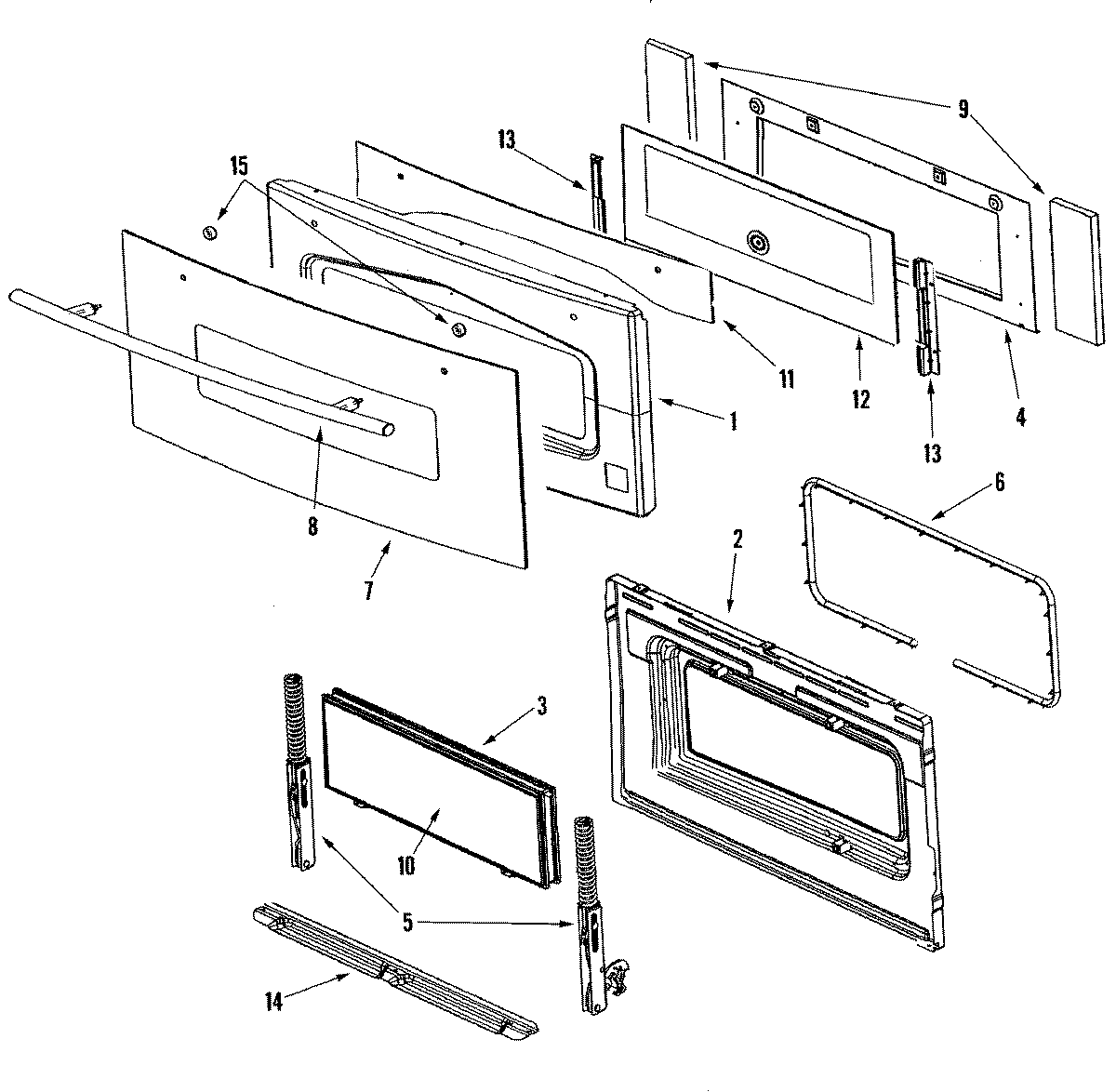

JJW7530DDS 03 – DOOR

Products

PositionProduct
1MAY 74008621
2MAY 74008609
3MAY 74004567
4MAY 74008612
5SCREW (10-24X5/16-NI)
5MAY 74008610
5WP74010286 Whirlpool Door Hinge
6MAY 74008611
7MAY 74008604
8WP74008625 Whirlpool Door Handle
9INSULATION, DOOR (3 X 8.7)
10MAY 74004566
11MAY 74008422
12MAY 74008613
13MAY 74004592
14MAY 74008392
14WP90767 Whirlpool Screw
15MAY 715634
