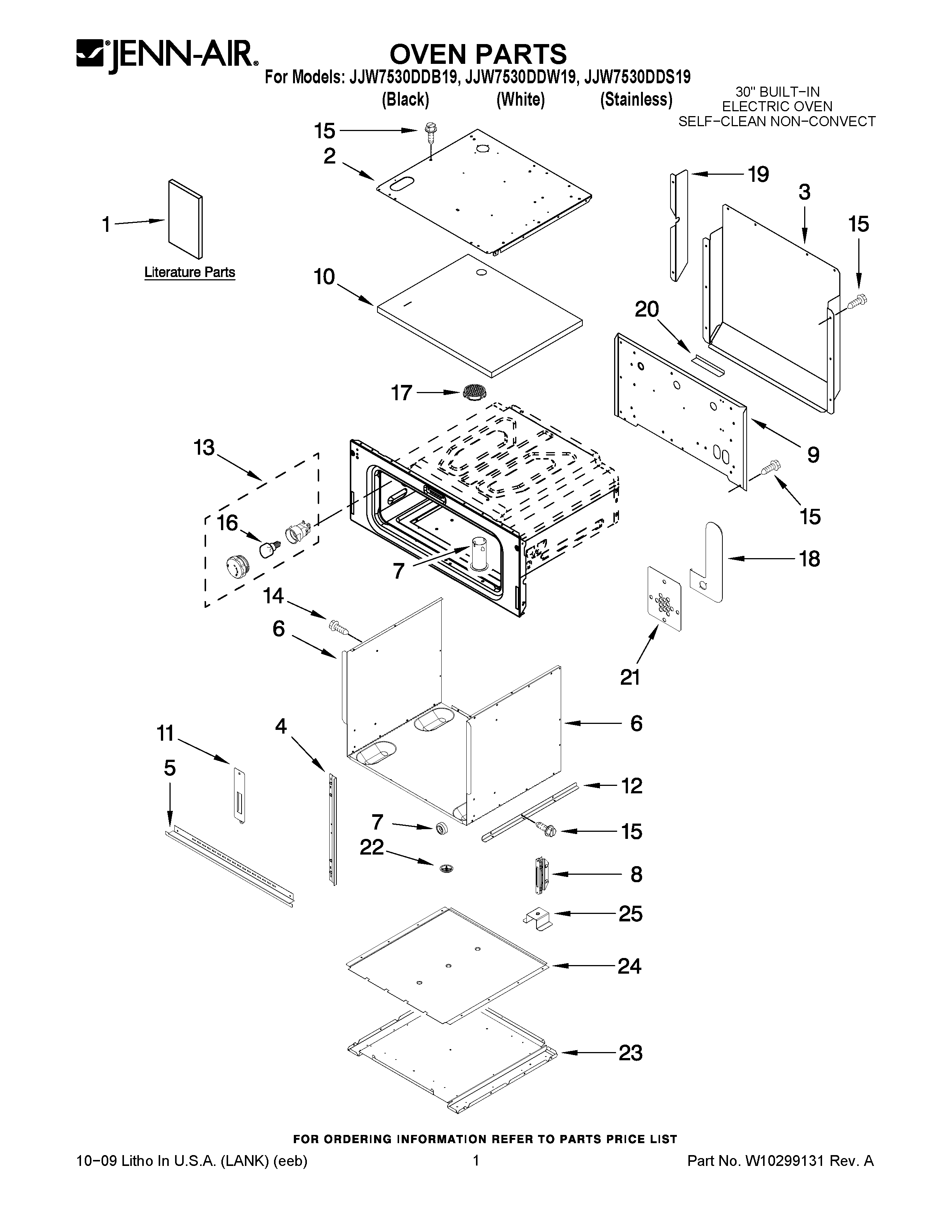

JJW7530DDS19 01 – OVEN PARTSadmin2025-04-26T09:31:45+00:00JJW7530DDS19 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP |
| NI | MAY 7002P412-60 |
| NI | MAY 7002P409-60 |
| NI | MAY 7002P374-60 |
| 1 | MAY W10169645 |
| 1 | MAY 8119P263-60 |
| 1 | MAY 8119P262-60 |
| 1 | MAY 8010P485-60 |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | PNL, TOP RETAINER |
| 3 | MAY 2624W054-51 |
| 4 | MAY 7744P415-60 |
| 5 | TRIM, BOTTOM VENT |
| 6 | MAY 2618F174-51 |
| 7 | MAY 8026P077-60 |
| 8 | RECEIVER, HINGE |
| 9 | MAY 2624F088-51 |
| 11 | MAY 3605F331-70 |
| 12 | MAY 3807F685-51 |
| 13 | ASSEMBLY, LIGHT |
| 14 | MAY 7101P635-60 |
| 15 | MAY 7101P426- 60 |
| 16 | BULB, OVEN |
| 17 | SCREEN, SMOKE ELM. |
| 18 | MAY 4006W217-45 |
| 19 | MAY 3601F352-51 |
| 20 | COVER, REAR |
| 21 | MAY 4005F726-45 |
| 22 | MAY 8038P035-60 |
| 23 | MAY 2624F079-51 |
| 24 | CHANNEL, BOTTOM |
| 25 | SUPPORT, AIR CHANNEL |
