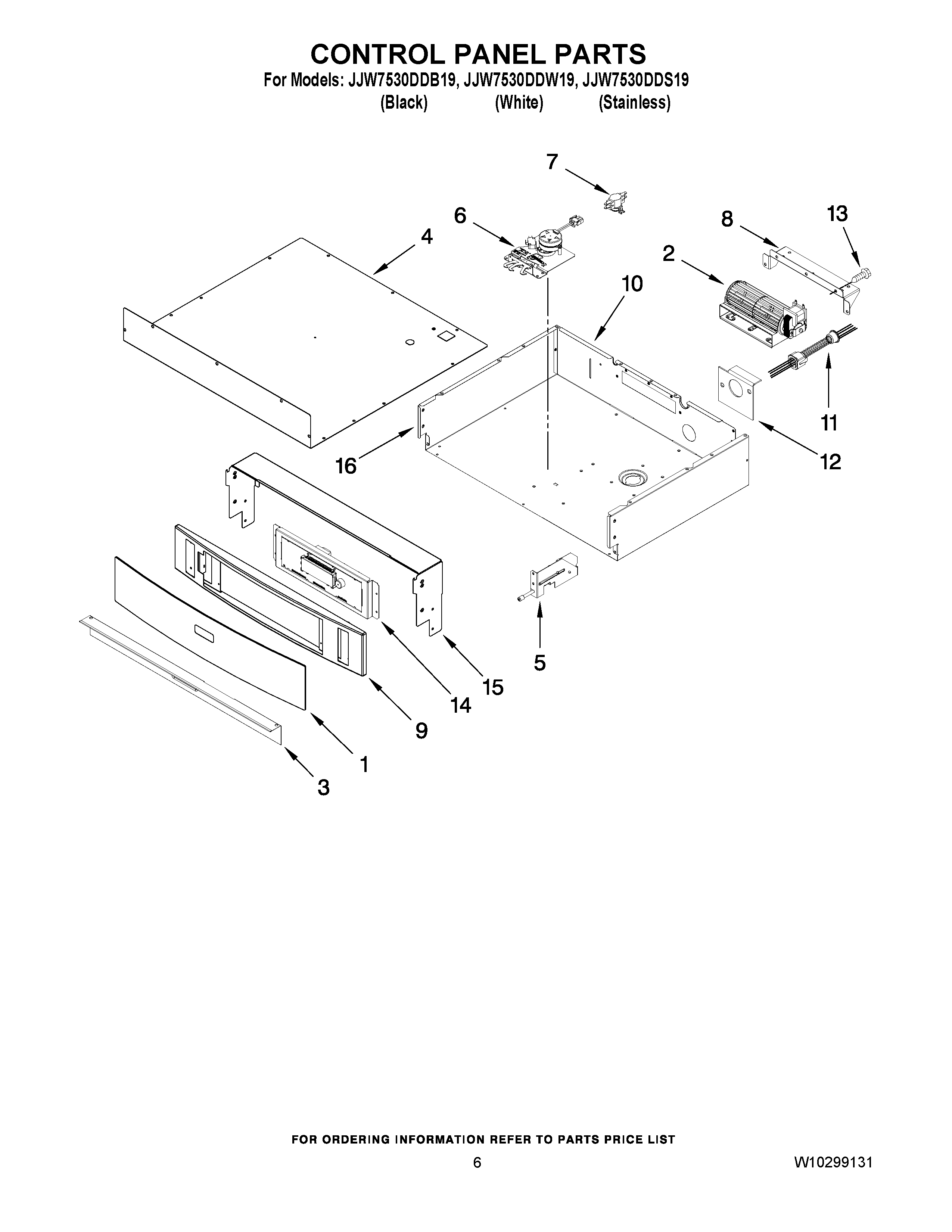

JJW7530DDS19 04 – CONTROL PANEL PARTSadmin2025-04-26T09:34:36+00:00JJW7530DDS19 04 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY 7912P299-60 |
| 1 | MAY 7912P297-60 |
| 1 | MAY 7912P296-60 |
| 2 | FAN, TANGENTIAL |
| 3 | MAY 3608F107-70 |
| 4 | MAY 2624F098-44 |
| 5 | ASSY., LIGHT SW |
| 6 | ASSY., LATCH DOOR |
| 7 | MAY 7403P449-60 |
| 8 | BRKT., COOLING FAN |
| 9 | FRAME, CNTRL ASSY. |
| 10 | PANEL, CONTROL BOX REAR |
| 11 | ASSEMBLY, CABLE |
| 12 | MAY 8020P048-60 |
| 13 | MAY 7101P426- 60 |
| 14 | MAY 8507P090-60 |
| 15 | SUPPORT, TOP CNTRL |
| 16 | PANEL, CNTRL SIDE (RIGHT) |
| 16 | PANEL, CNTRL SIDE (LEFT) |
