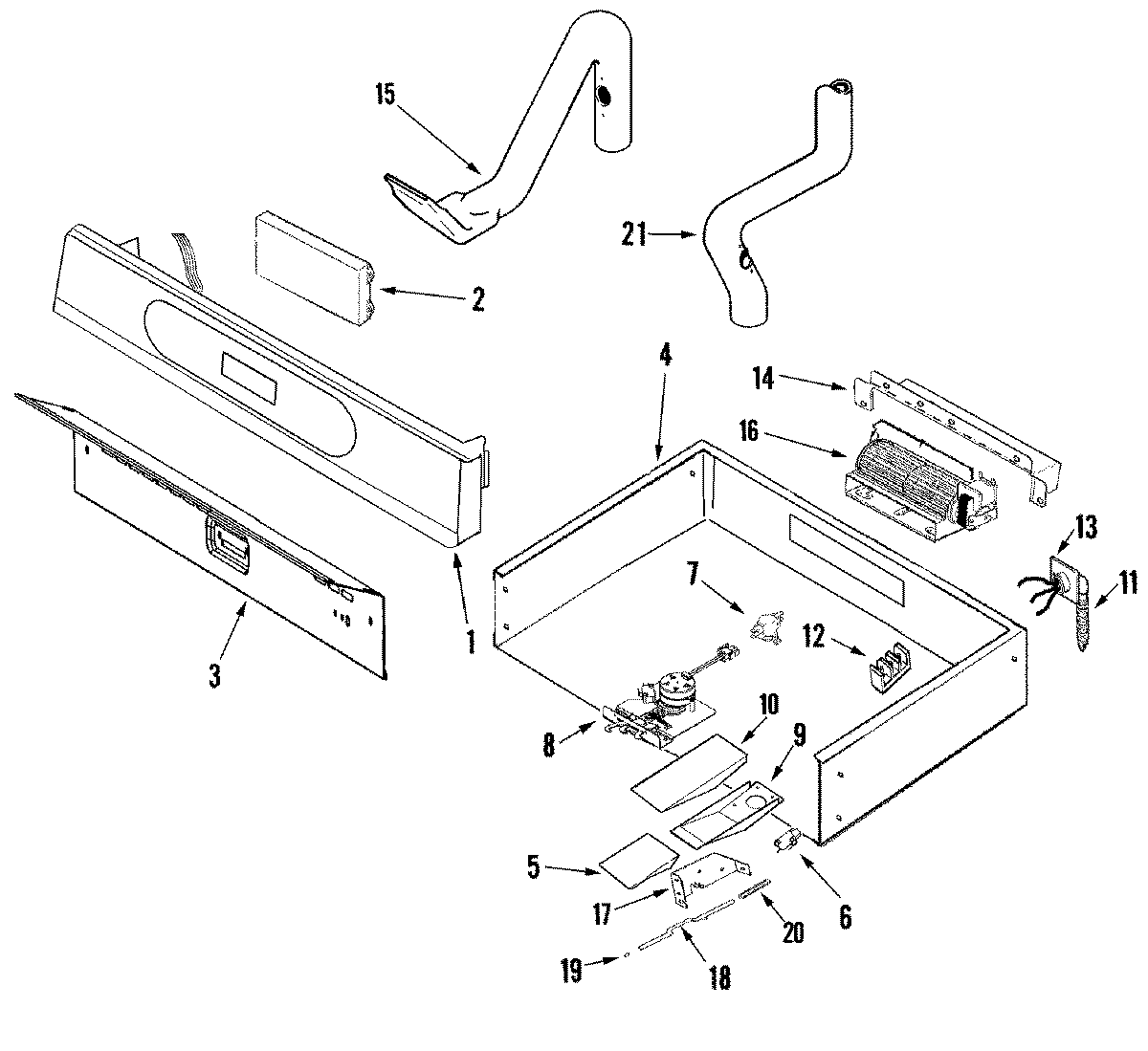

JJW8230DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
15765M453-60 Whirlpool Control Panel
2MAY 74008268
2WP74008259 Whirlpool Electronic Control Board
3MAY 74008261
4MAY 74008262
5MAY 71001843
6WP74008263 Whirlpool Door Switch
6MAY 74008264
77403P855-60 Whirlpool Thermostat
7MAY 314848
774008265 Whirlpool Oven High Limit Thermostat
8SWTCH-LITE
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
9MAY 74008294
10MAY 71001847
11MAY 74004222
11MAY 74004726
12MAY 7401P038-60
12MAY 7417P017-60
12KIT, HARDWARE ADAPTER
12WP7103P027-60 Whirlpool Nut
13MAY 74004712
14MAY 74008330
14WP90767 Whirlpool Screw
15MAY 71002417
16MAY 74009597
16MAY 74009596
16NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16MAY 74009598
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
21MAY 71002418
