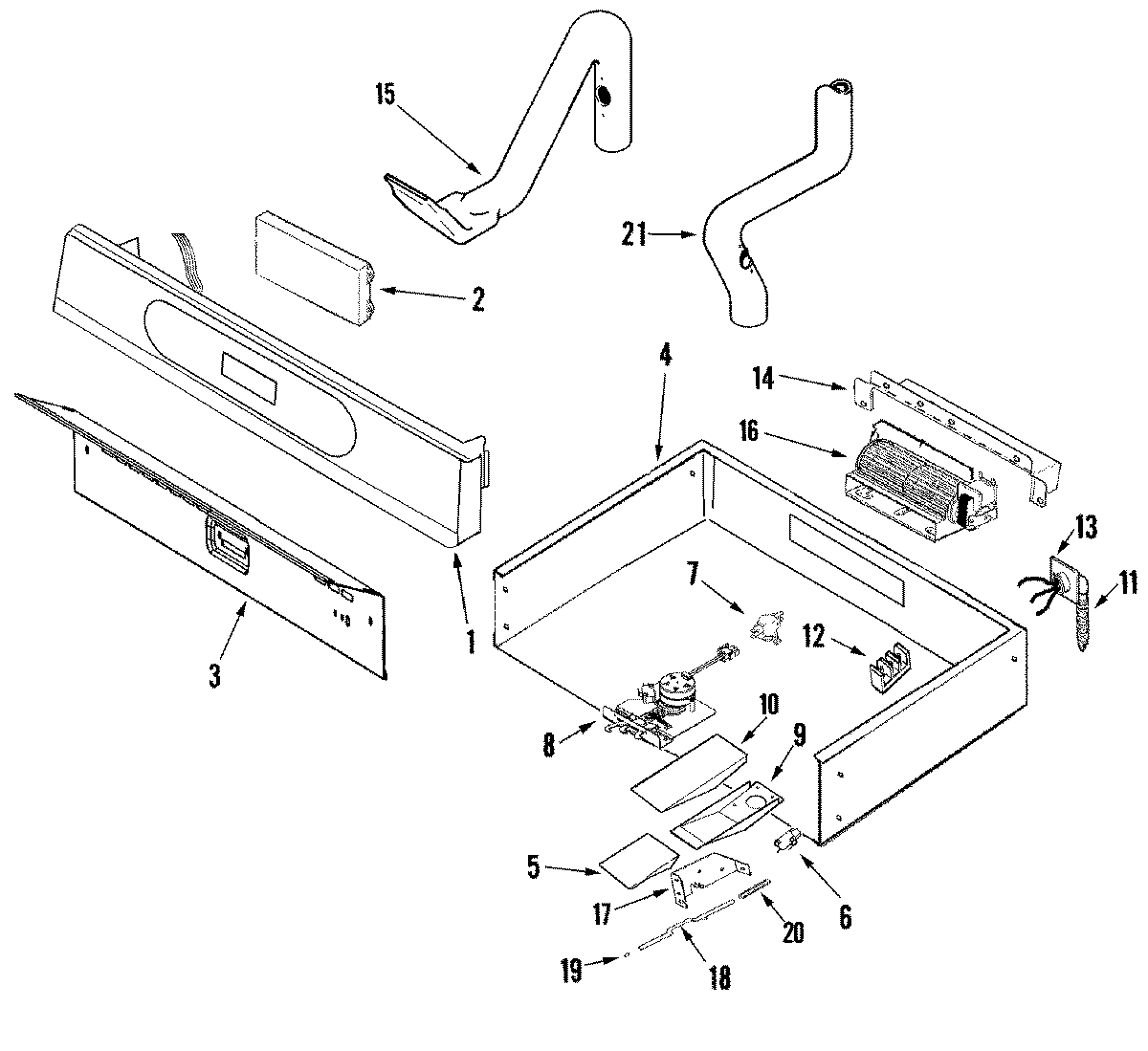

JJW8230DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008796
2	MAY 74008268
2	WP74008259 Whirlpool Electronic Control Board
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	MAY 74008264
6	WP74008263 Whirlpool Door Switch
7	MAY 314848
7	7403P855-60 Whirlpool Thermostat
7	74008265 Whirlpool Oven High Limit Thermostat
8	WPW10186996 Whirlpool Door Latch
8	MAY 7101P330-60
8	SWTCH-LITE
9	MAY 74008294
10	MAY 71001847
11	MAY 74004726
11	MAY 74004222
12	KIT, HARDWARE ADAPTER
12	MAY 7401P038-60
12	MAY 7417P017-60
12	WP7103P027-60 Whirlpool Nut
13	MAY 74004712
14	MAY 74008330
14	WP90767 Whirlpool Screw
15	MAY 71002417
16	MAY 74009596
16	MAY 74009597
16	MAY 74009598
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74007586
21	MAY 71002418
