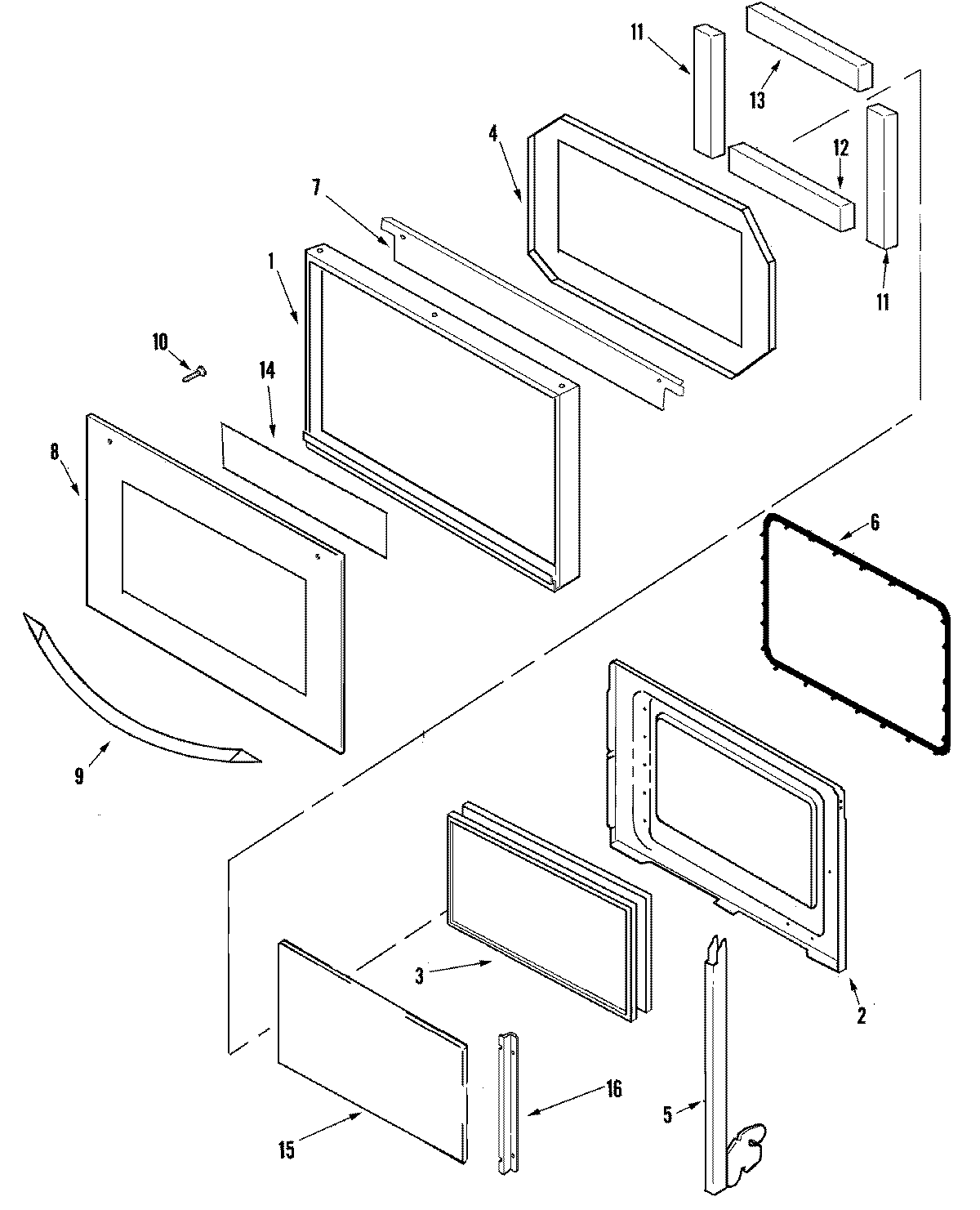

JJW8230DDW 03 – DOOR (UPPER & LOWER)

JJW8230DDW 03 – DOOR (UPPER & LOWER)

Written by

in

JJW8230DDW 03 – DOOR (UPPER & LOWER)

Products

PositionProduct
1MAY 74006752
1MAY 71001827
2MAY 74005642
3MAY 74005641
4MAY 74005648
5WP74008014 Whirlpool Range Oven Door Hinge
5WP98008544 Whirlpool Screw Assembly
6WP71001841 Whirlpool Door Seal
7WP999367 Whirlpool Refrigerator Screw
7MAY 74008284
8MAY 74008283
9MAY 74006965
10MAY 74008302
10WP3387230 Whirlpool Screw
1174008285 Whirlpool Oven Door Insulation (Side)
1274008286 Whirlpool Oven Door Insulation (Bottom)
1374008287 Whirlpool Oven Door Top Insulation
14MAY 74008288
15MAY 74008289
16WP90767 Whirlpool Screw
21MAY 71002418
