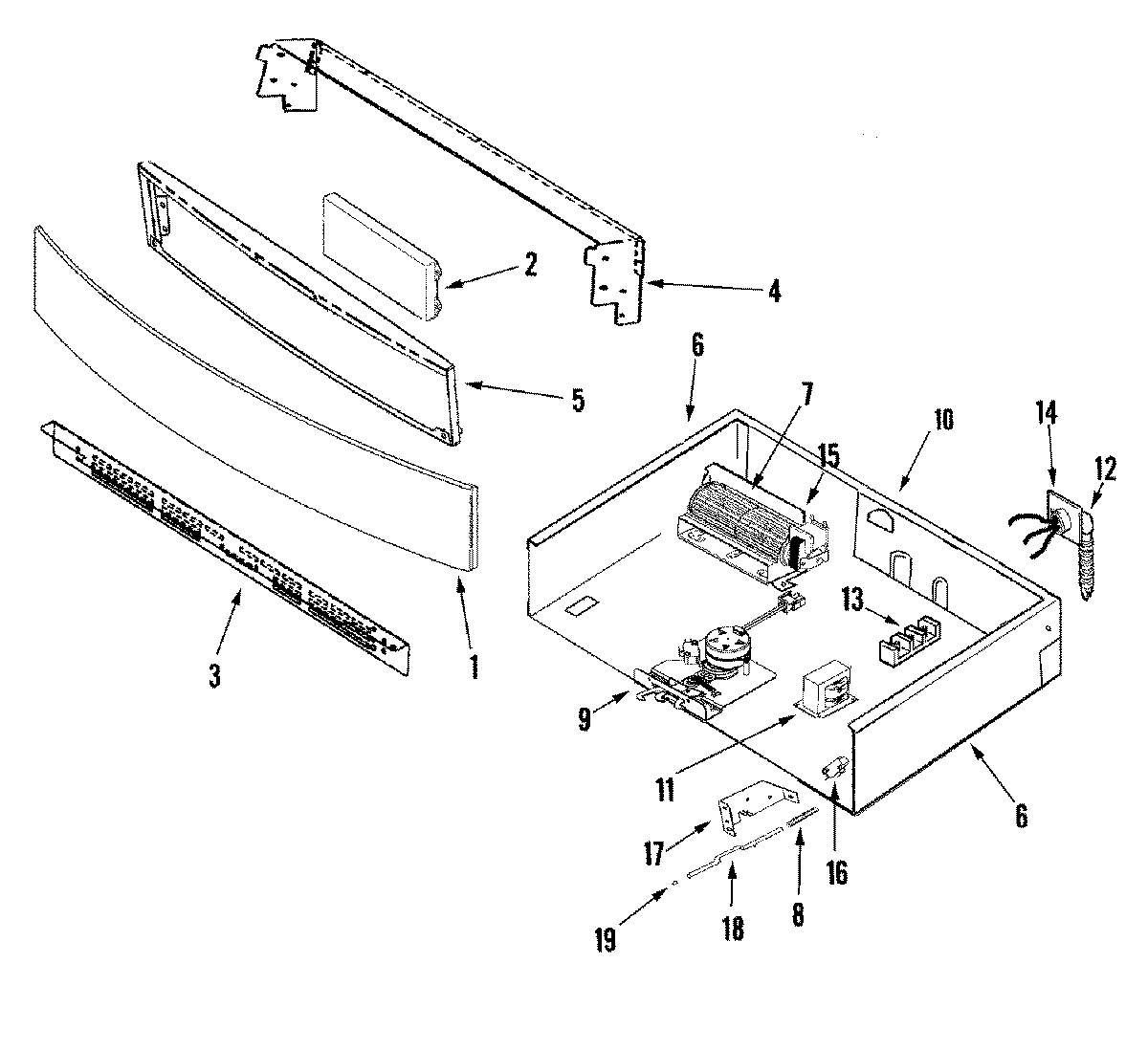

JJW8527DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008347
2	WP74009714 Whirlpool Control Board
3	MAY 74008361
4	MAY 74008362
5	MAY 74008351
6	MAY 74008359
6	MAY 74008360
7	WP74008383 Whirlpool Tangential Fan
9	WPW10186996 Whirlpool Door Latch
9	SWTCH-LITE
10	MAY 74008382
10	PANEL, CONTROL BOX REAR
11	MAY 74005416
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 74004735
12	MAY 74004222
13	WPW10245259 Whirlpool Terminal Block
13	WP7103P027-60 Whirlpool Nut
13	MAY 7417P017-60
13	KIT, HARDWARE ADAPTER
14	MAY 74004712
15	WP90767 Whirlpool Screw
15	MAY 74008343
16	MAY 74008264
16	MAY 7101P330-60
16	WP74008263 Whirlpool Door Switch
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74007586
