JJW8527DDS 03 – DOOR

JJW8527DDS 03 – DOOR

Written by

in

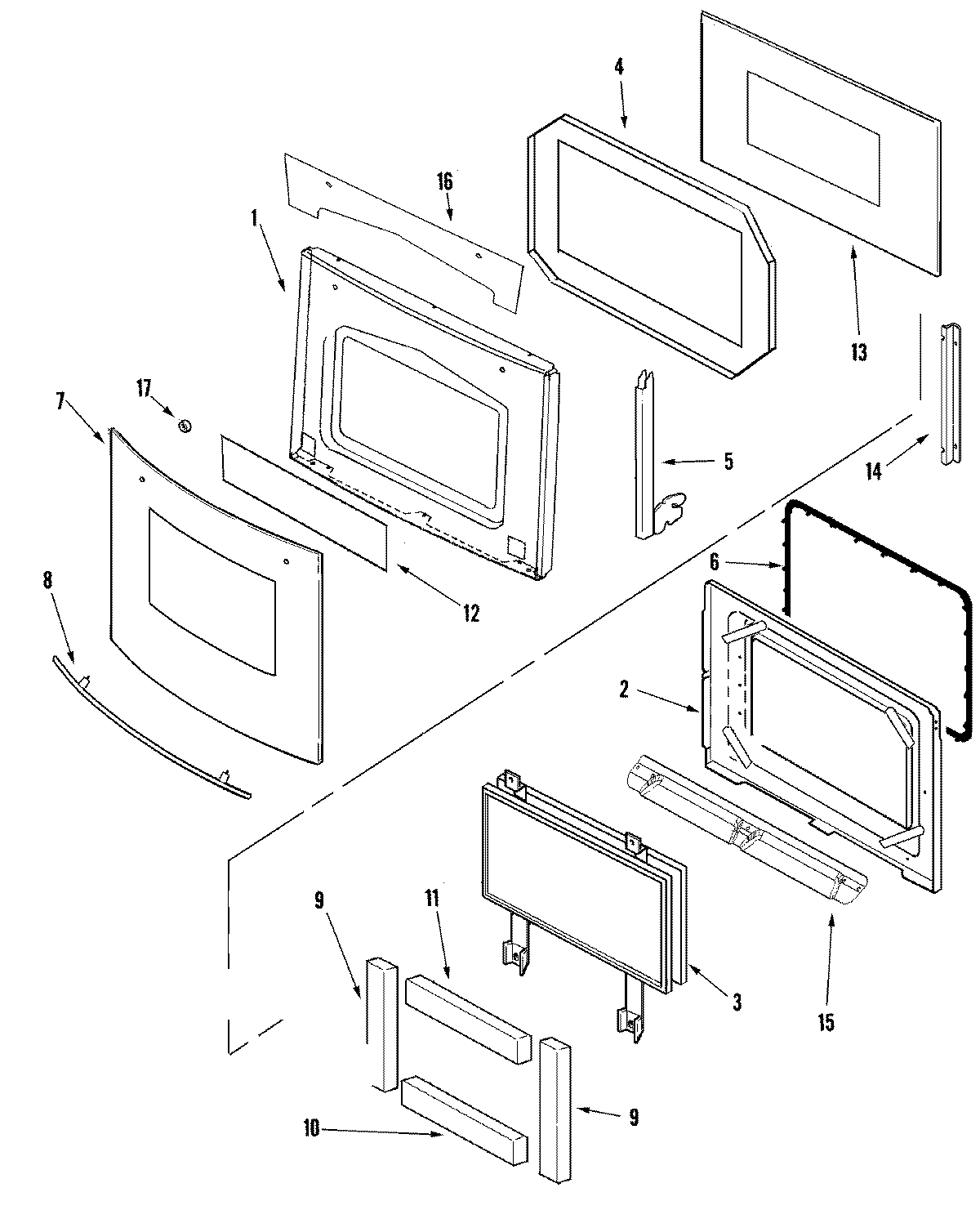

JJW8527DDS 03 – DOOR

Products

PositionProduct
1MAY 74008378
2MAY 74008367
3MAY 74005639
4MAY 74005638
5MAY 74008384
5SCREW (10-24X5/16-NI)
5WP74010283 Whirlpool Door Hinge
6WP71001970 Whirlpool Door Seal
7MAY 74008393
8MAY 74008389
9MAY 71001839
10MAY 71001969
11MAY 74005634
12MAY 74008394
13MAY 74008391
14MAY 74003650
14WP90767 Whirlpool Screw
15WPY706189 Whirlpool Stove Screw
15MAY 74008392
16MAY 74008396
17MAY 715634
