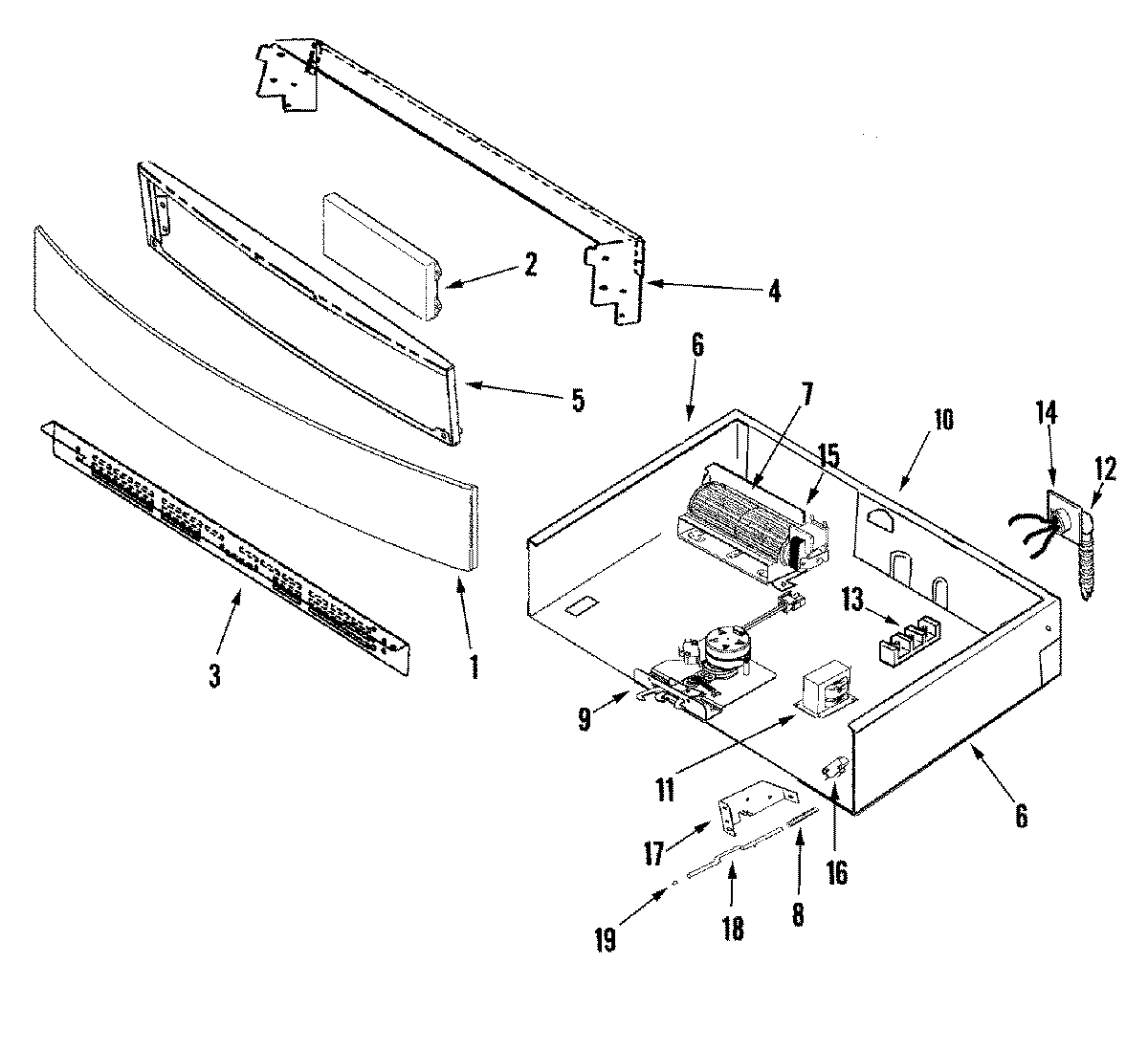

JJW8527DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008349
2WP74009714 Whirlpool Control Board
3MAY 74008361
4MAY 74008362
5MAY 74008351
6MAY 74008360
6MAY 74008359
7WP74008383 Whirlpool Tangential Fan
9SWTCH-LITE
9WPW10186996 Whirlpool Door Latch
10PANEL, CONTROL BOX REAR
10MAY 74008382
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004735
12MAY 74004222
13MAY 7417P017-60
13WPW10245259 Whirlpool Terminal Block
13WP7103P027-60 Whirlpool Nut
13KIT, HARDWARE ADAPTER
14MAY 74004712
15WP90767 Whirlpool Screw
15MAY 74008343
16WP74008263 Whirlpool Door Switch
16MAY 74008264
16MAY 7101P330-60
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
