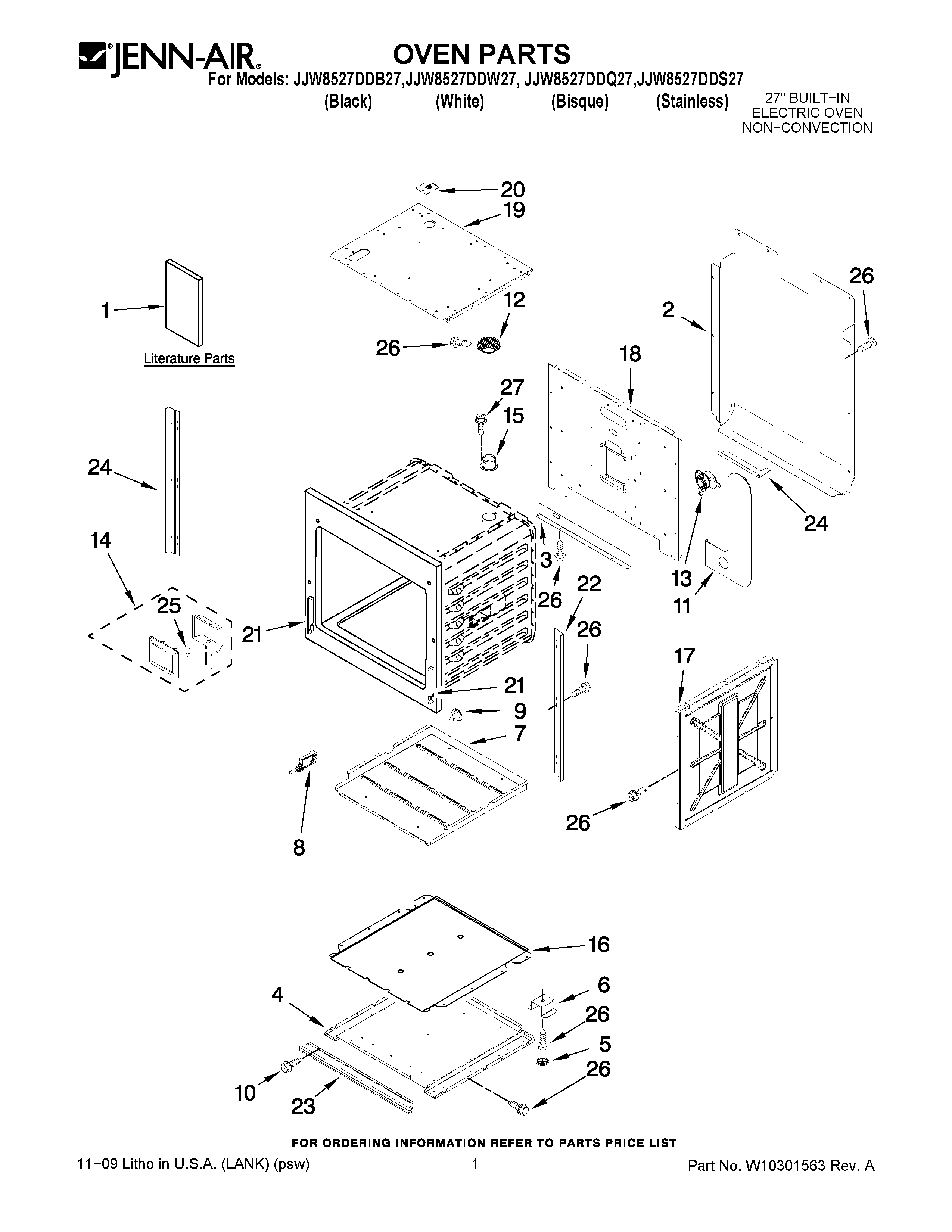

JJW8527DDW27 01 – OVEN PARTSadmin2025-04-26T09:33:23+00:00JJW8527DDW27 01 – OVEN PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P407-60 |
| NI | MAY 7002P422-60 |
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | OWNERS MANUAL |
| 1 | MAY 8119P258-60 |
| 1 | MAY 8119P253-60 |
| 1 | MAY 8101P602-60 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY 2624F043-51 |
| 3 | BAFFLE, REAR LOWER |
| 4 | MAY 2624F078-51 |
| 5 | MAY 8038P035-60 |
| 6 | SUPPORT, AIR CHANNEL |
| 7 | MAY 3401F079-45 |
| 8 | ASSY., LIGHT SW |
| 9 | MAY 7718P021-60 |
| 10 | MAY 7101P427-60 |
| 11 | MAY 4006W218-45 |
| 12 | SCREEN, SMOKE ELM. |
| 13 | SWITCH, HI LIMIT |
| 14 | ASSEMBLY, LIGHT |
| 15 | MAY 8026P066-60 |
| 16 | CHANNEL, BOTTOM |
| 17 | MAY 2618F215-51 |
| 18 | MAY 2624F096-51 |
| 19 | PNL, TOP RETAINER |
| 20 | MAY 4005F726-45 |
| 21 | RECEIVER, HINGE |
| 22 | MAY 7744P461-60 |
| 22 | MAY 7744P460-60 |
| 23 | MAY 3608F098-70 |
| 24 | COVER, REAR |
| 25 | BULB, OVEN |
| 26 | MAY 7101P426- 60 |
| 27 | MAY 7101P434-60 |
