JJW8530DDB 03 – DOOR

JJW8530DDB 03 – DOOR

Written by

in

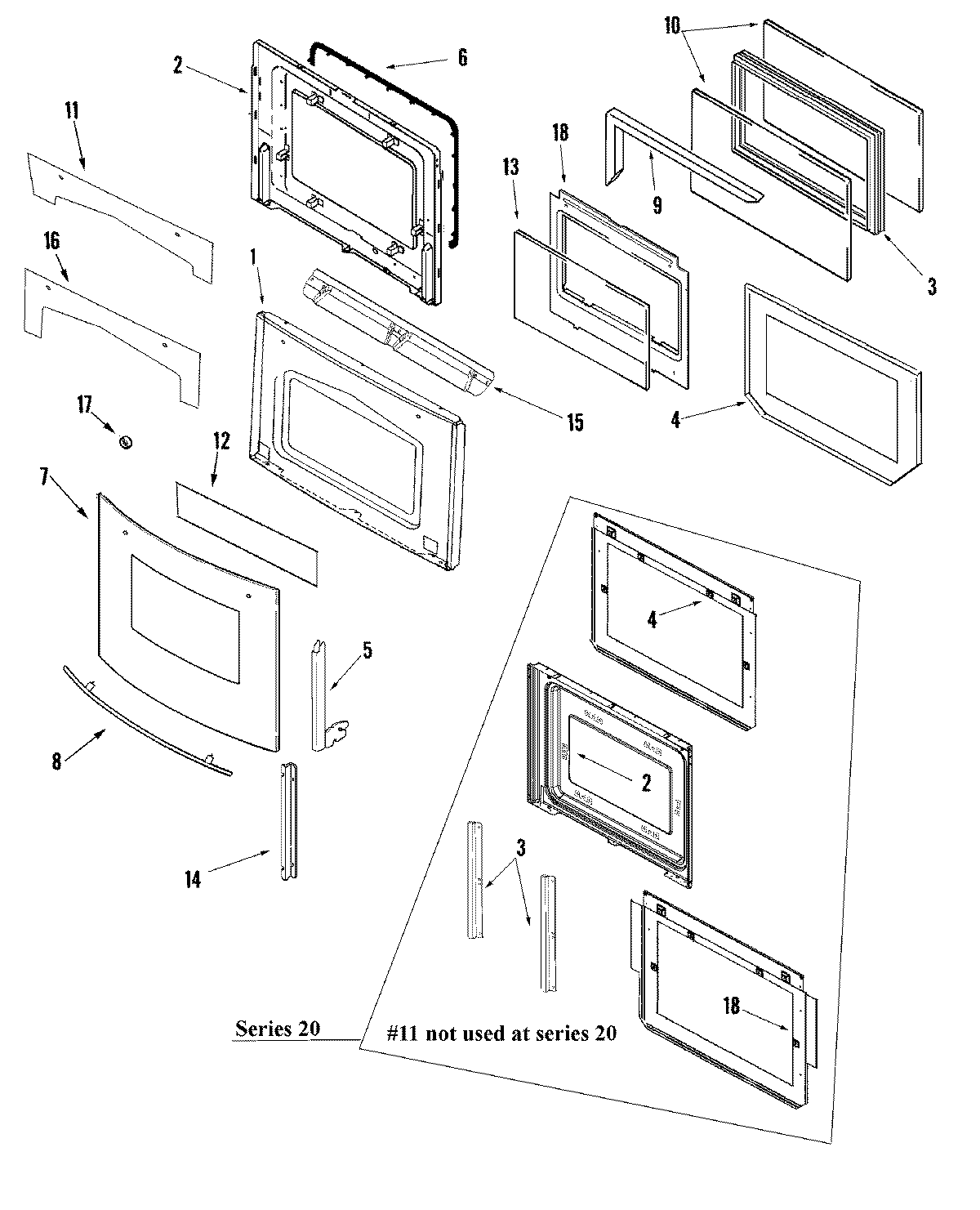

JJW8530DDB 03 – DOOR

Products

PositionProduct
1MAY 74008412
2MAY 74008413
2MAY 74011462
3SCREW, 8 X 1/2
33801F886-51 Whirlpool Mounting Bracket
3FRAME, GLASS
4MAY 74008414
4MAY 74011461
512002489 Whirlpool Dishwasher Hinge and Receptacle Kit
5SCREW (10-24X5/16-NI)
5WP74010283 Whirlpool Door Hinge
6WPW10162386 Whirlpool Door Gasket
7MAY 74008417
8WP74008625 Whirlpool Door Handle
9INSULATION, OVEN DOOR
1074003645 Whirlpool Range Oven Door Inner Glass
11MAY 74008422
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13MAY Y74008423
14MAY 74003650
14WP90767 Whirlpool Screw
15MAY 74008392
15WPY706189 Whirlpool Stove Screw
17MAY 715634
18MAY 74003648
183601F373-51 Whirlpool Baffle
