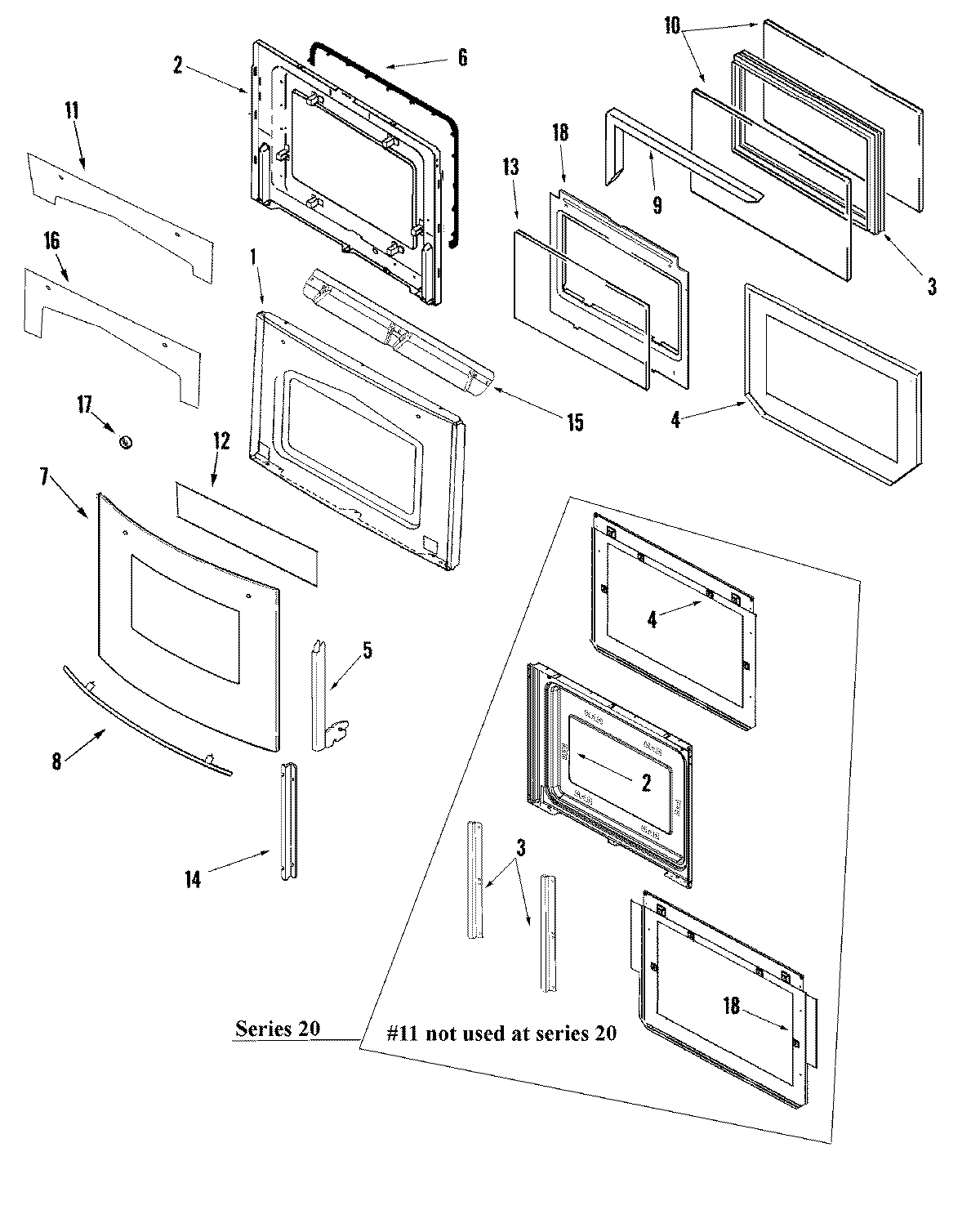

JJW8530DDS 03 – DOOR

Products

Position	Product
1	MAY 74008412
2	MAY 74008413
2	MAY 74011462
3	3801F886-51 Whirlpool Mounting Bracket
3	SCREW, 8 X 1/2
3	FRAME, GLASS
4	MAY 74008414
4	MAY 74011461
5	12002489 Whirlpool Dishwasher Hinge and Receptacle Kit
5	SCREW (10-24X5/16-NI)
5	WP74010283 Whirlpool Door Hinge
6	WPW10162386 Whirlpool Door Gasket
7	MAY Y74008420
8	WP74008625 Whirlpool Door Handle
9	INSULATION, OVEN DOOR
10	74003645 Whirlpool Range Oven Door Inner Glass
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 74008395
13	MAY Y74008423
14	MAY 74003650
14	WP90767 Whirlpool Screw
15	WPY706189 Whirlpool Stove Screw
15	MAY 74008392
16	MAY 74008425
17	MAY 715634
18	3601F373-51 Whirlpool Baffle
18	MAY 74003648
