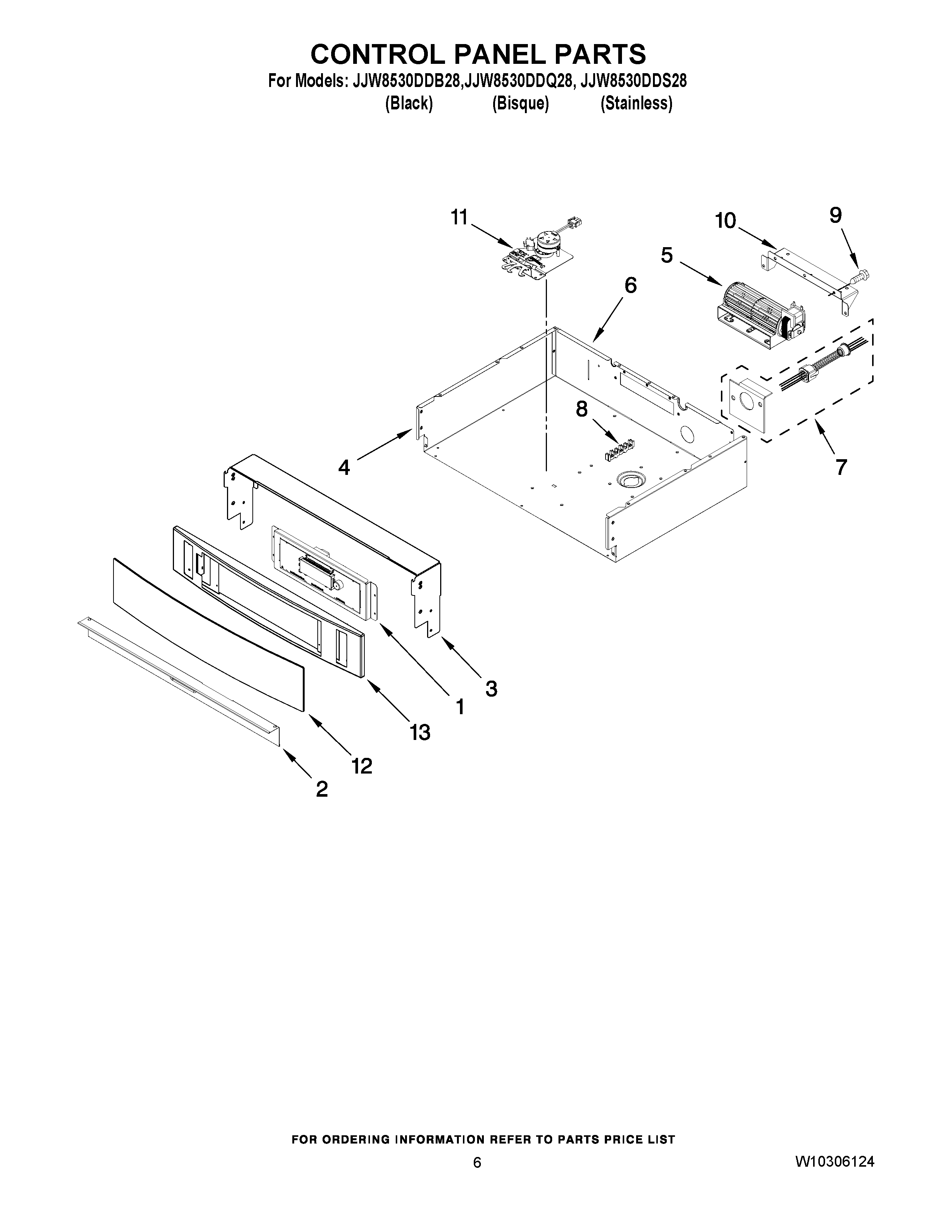

JJW8530DDS28 04 – CONTROL PANEL PARTS

JJW8530DDS28 04 – CONTROL PANEL PARTS

Written by

in

JJW8530DDS28 04 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY 8507P345-60
2MAY 3608F107-70
3SUPPORT, TOP CNTRL
4PANEL, CNTRL SIDE (LEFT)
4PANEL, CNTRL SIDE (RIGHT)
5FAN, TANGENTIAL
6PANEL, CONTROL BOX REAR
7ASSEMBLY, CABLE
8WPW10245259 Whirlpool Terminal Block
9MAY 7101P426- 60
10BRKT., COOLING FAN
11ASSY., LATCH DOOR
12MAY 7912P336-60
12MAY 7912P343-60
12MAY 7912P356-60
13FRAME, CNTRL ASSY.
