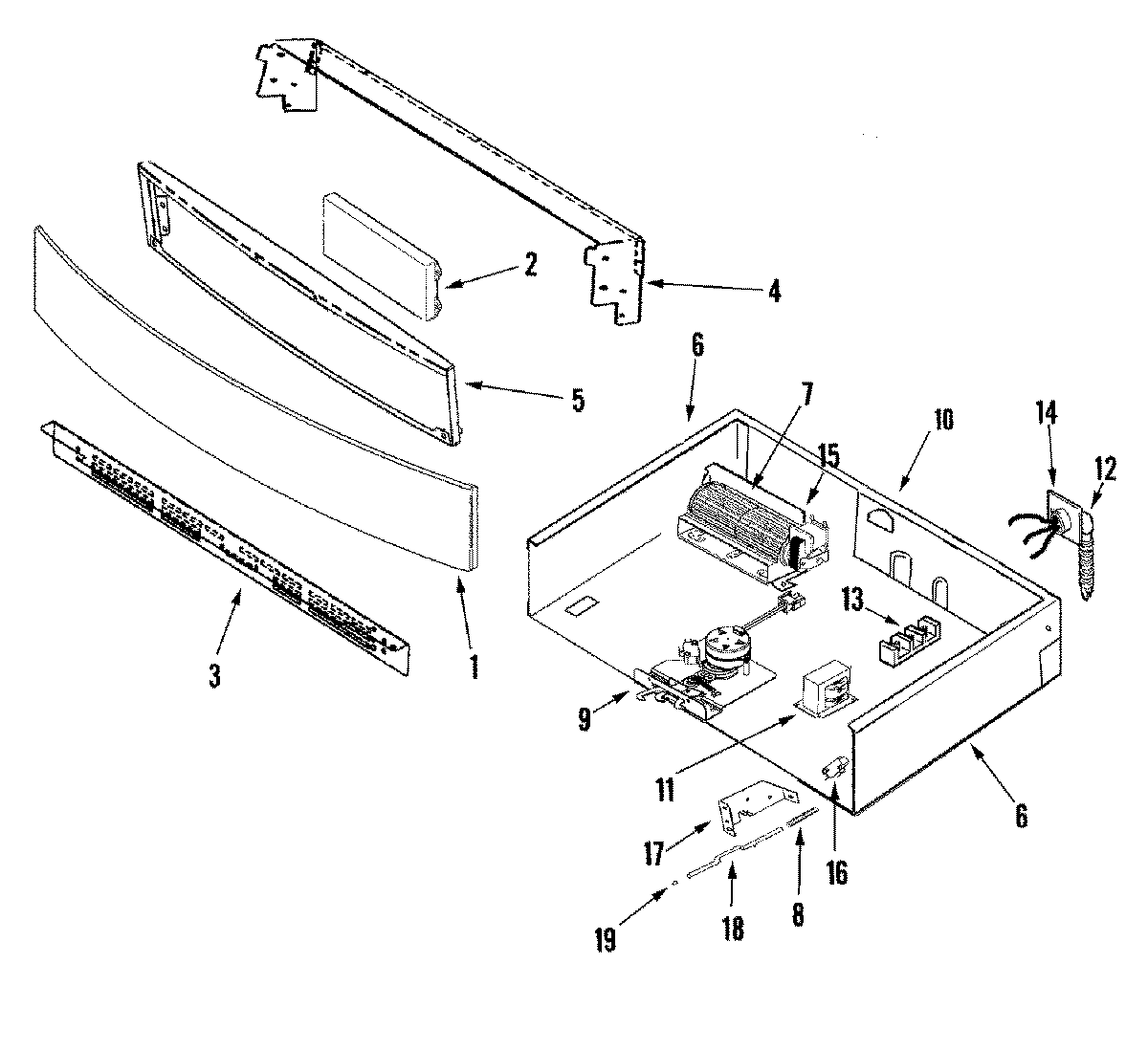

JJW8530DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008399
2WP74009714 Whirlpool Control Board
3MAY 74008401
4MAY 74008362
5MAY 74008402
6MAY 74008359
6MAY 74008360
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
9SWTCH-LITE
10MAY 74008382
10PANEL, CONTROL BOX REAR
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004222
12MAY 74004726
13KIT, HARDWARE ADAPTER
13MAY 7417P017-60
13WPW10245259 Whirlpool Terminal Block
13WP7103P027-60 Whirlpool Nut
14MAY 74004712
15MAY 74008343
15WP90767 Whirlpool Screw
16MAY 7101P330-60
16MAY 74008264
16WP74008263 Whirlpool Door Switch
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
