JJW8627DDB 04 – OVEN

JJW8627DDB 04 – OVEN

Written by

in

JJW8627DDB 04 – OVEN

Products

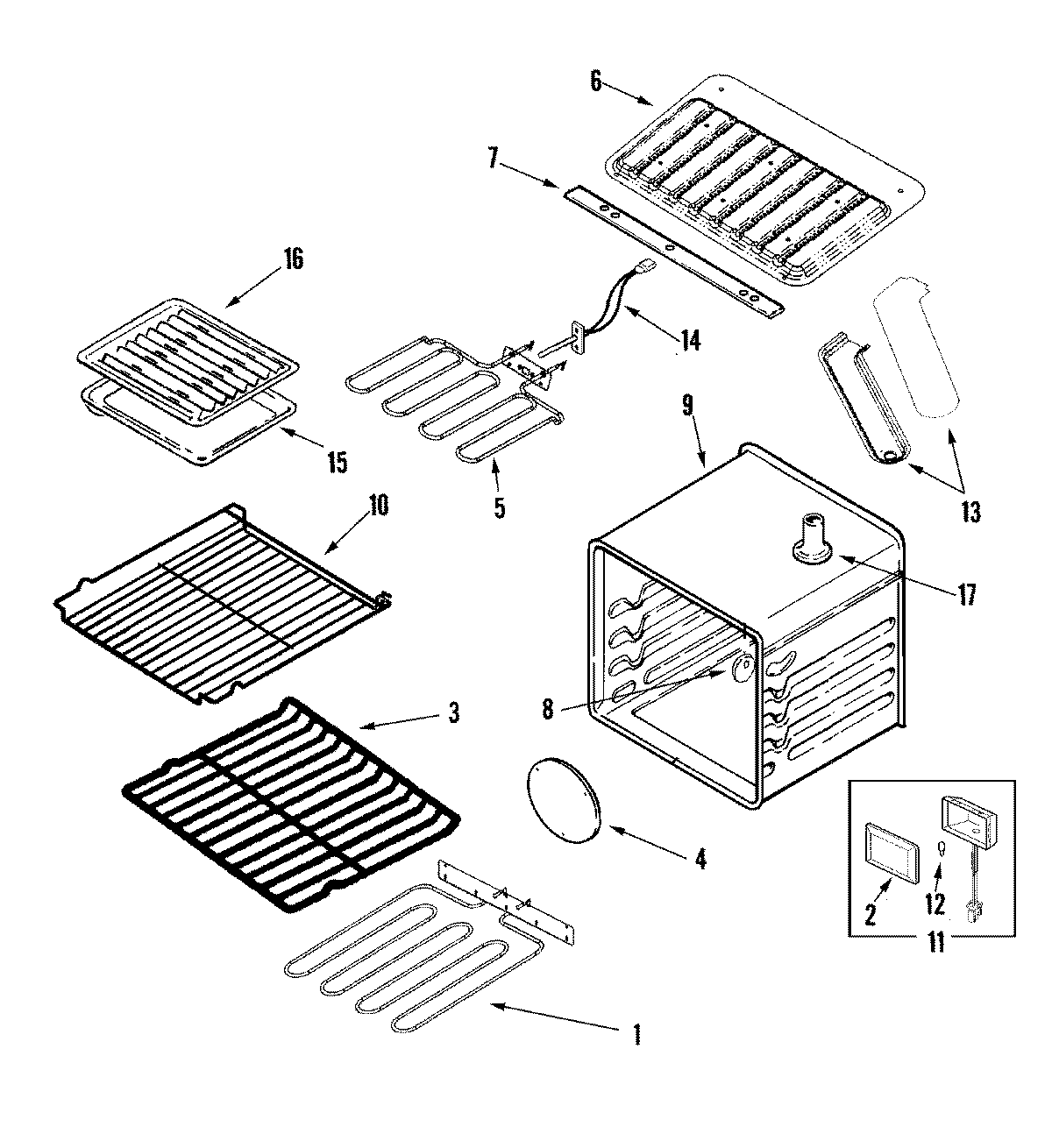

PositionProduct
1WP7406P322-60 Whirlpool Bake Element
2WP90767 Whirlpool Screw
2WP74004607 Whirlpool Light Lens
3MAY Y704660
4WP74003976 Whirlpool Screw
4MAY 71002903
5MAY 7406P500-60
5MAY W10184147
5WPW10184147 Whirlpool Broil Element
6MAY 74008375
7WP400021-1 Whirlpool Screw
7MAY 74003563
8MAY 702929
9MAY 74008374
9MAY 71001170
10MAY Y704662
11MAY 74009970
11MAY 74004521
12W10886919 Whirlpool Light Bulb
13MAY 74008342
13MAY 74009843
14WP74008369 Whirlpool Oven Temperature Sensor
14MAY 71001394
15MAY Y3401F02019
16MAY Y3413F01619
17MAY 74009839
17MAY 74008453
1874009585 Whirlpool Oven Rack
