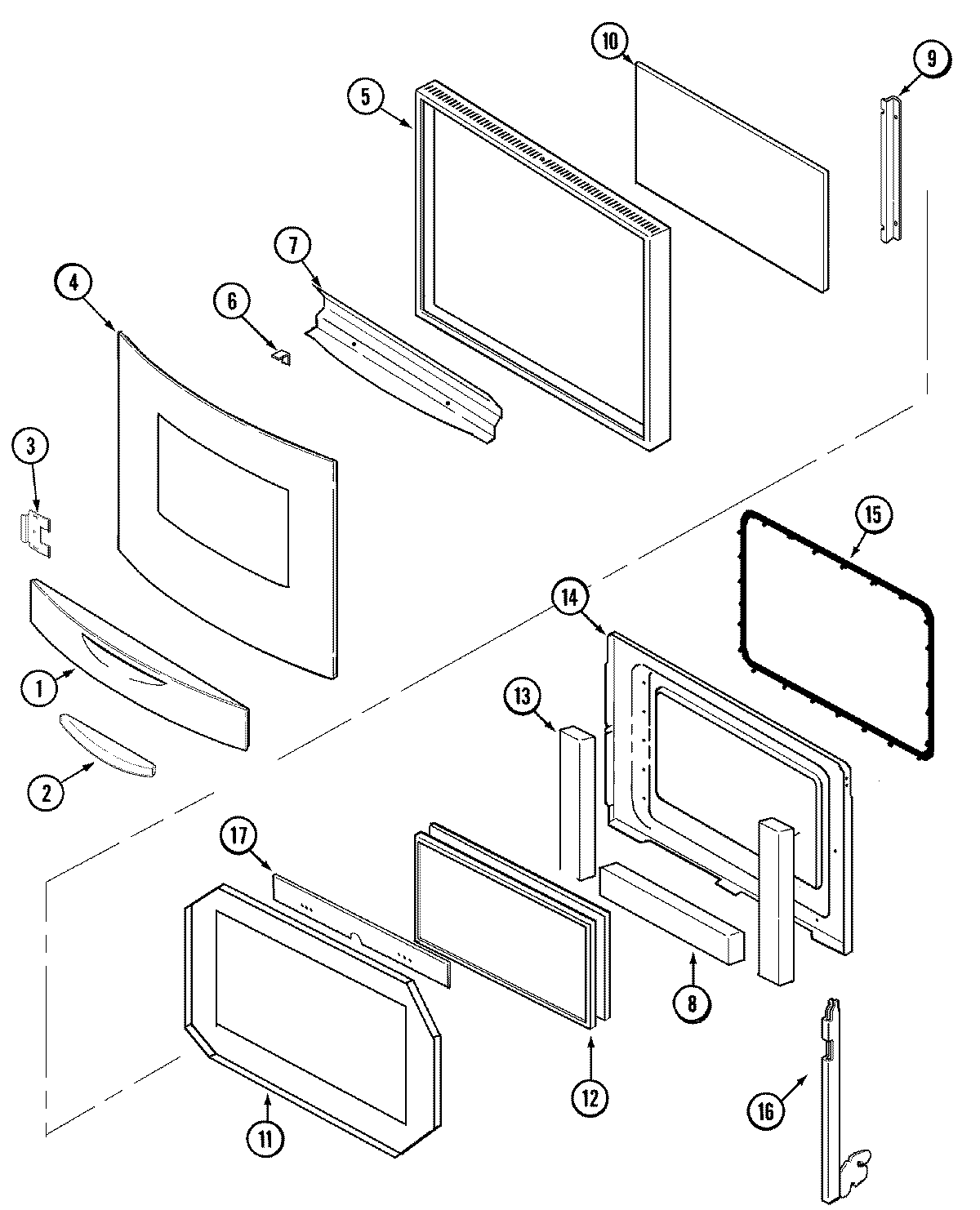

JJW8630BAW 03 – DOOR (UPPER & LOWER)

Products

Position	Product
1	SCREW
1	MAY 74005647
2	MAY 7109P036-60
2	WP400021-1 Whirlpool Screw
2	MAY 74005606
3	MAY 71003386
4	MAY 74005617
5	MAY 71001827
5	MAY 71003395
5	MAY 74006311
6	MAY 71001831
6	MAY Y700725
7	GASKET, WINDOW
7	MAY 71003396
8	MAY 71001838
9	MAY 74003650
9	WP90767 Whirlpool Screw
10	MAY 74005640
11	MAY 715634
11	MAY 74005648
12	MAY 74005641
13	MAY 71001839
14	MAY 74005642
15	WP71001841 Whirlpool Door Seal
16	WP74008014 Whirlpool Range Oven Door Hinge
16	W10828565 Whirlpool Screw
17	MAY 74005614
17	MAY 71001394
