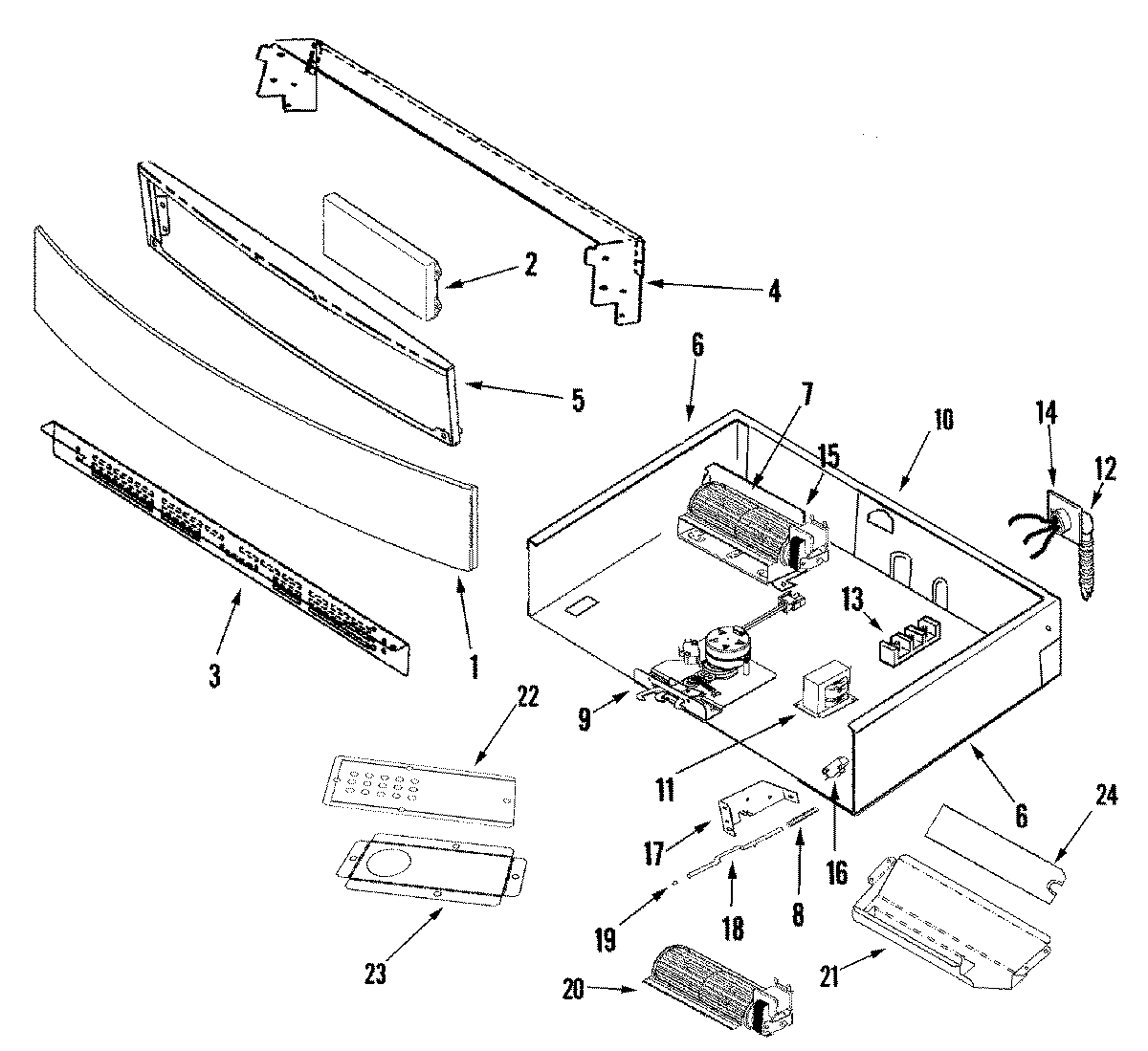

JJW8630DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008439
2MAY 74008440
2MAY W101182906
2MAY 74009715
2MAY W10182906
3MAY 74008401
4MAY 74008362
5MAY 74008402
6MAY 74008360
6MAY 74008359
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
10MAY 74008382
10PANEL, CONTROL BOX REAR
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004222
12MAY 74004735
13KIT, HARDWARE ADAPTER
13WPW10245259 Whirlpool Terminal Block
13MAY 7417P017-60
13WP7103P027-60 Whirlpool Nut
14MAY 74004712
15MAY 74008343
16WP74008263 Whirlpool Door Switch
16MAY 74008264
16MAY 7101P330-60
17BRACKET, SWITCH ACTUATOR
18SWTCH-LITE
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
20MAY 74008437
21MAY 74008432
22MAY 74008444
23MAY 74008445
23WP90767 Whirlpool Screw
