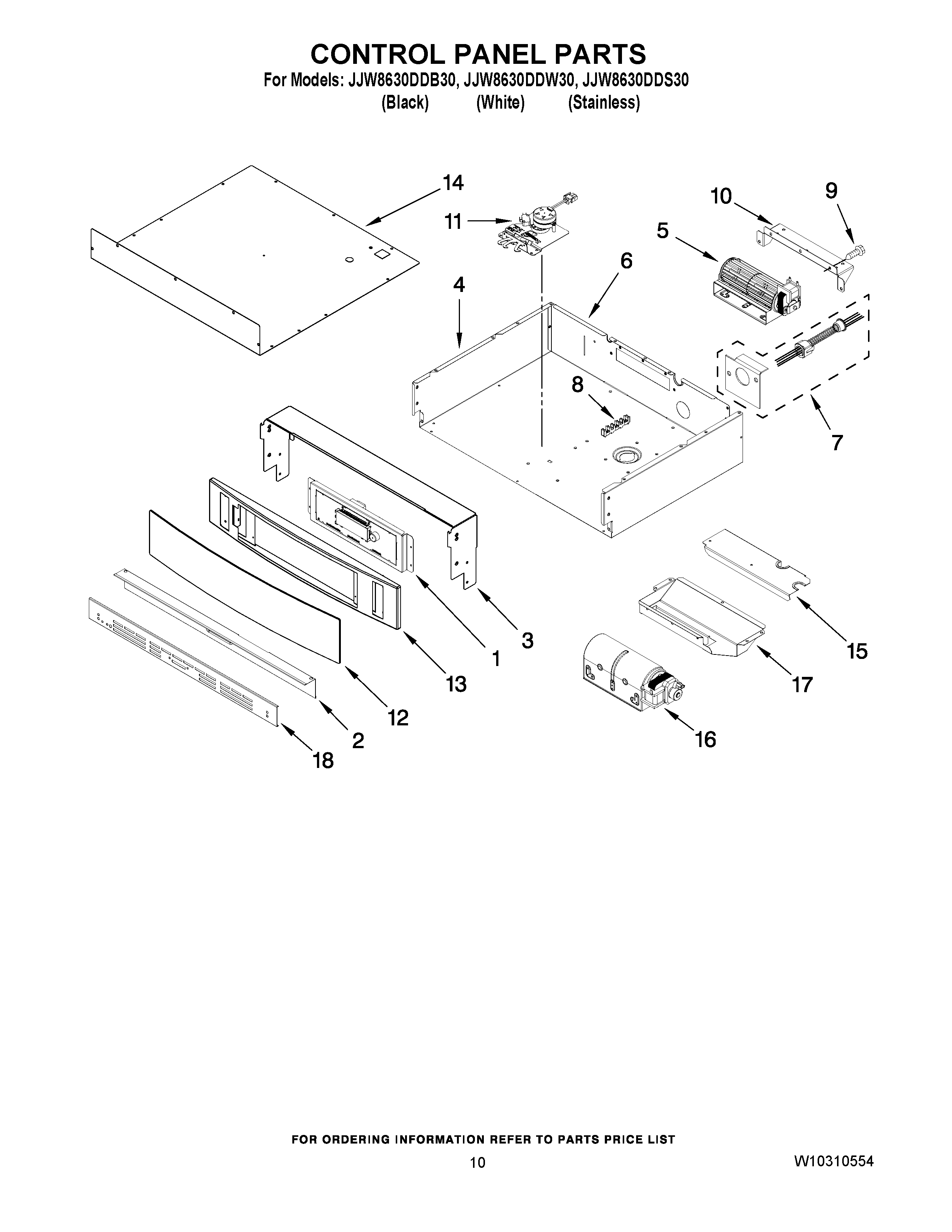

JJW8630DDS30 06 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10169131
2	MAY 3608F107-70
3	SUPPORT, TOP CNTRL
4	PANEL, CNTRL SIDE (LEFT)
4	PANEL, CNTRL SIDE (RIGHT)
5	FAN, TANGENTIAL
6	PANEL, CONTROL BOX REAR
7	MAY 5700P821-60
8	WPW10245259 Whirlpool Terminal Block
9	MAY 7101P426- 60
10	BRKT., COOLING FAN
11	ASSY., LATCH DOOR
12	MAY 7912P362-60
12	MAY 7912P342-60
13	FRAME, CNTRL ASSY.
14	MAY 2624F098-44
15	MAY 4005F785-51
16	MAY 7427P065-60
17	MAY 3801F772-51
18	MAY 3608F112-70
