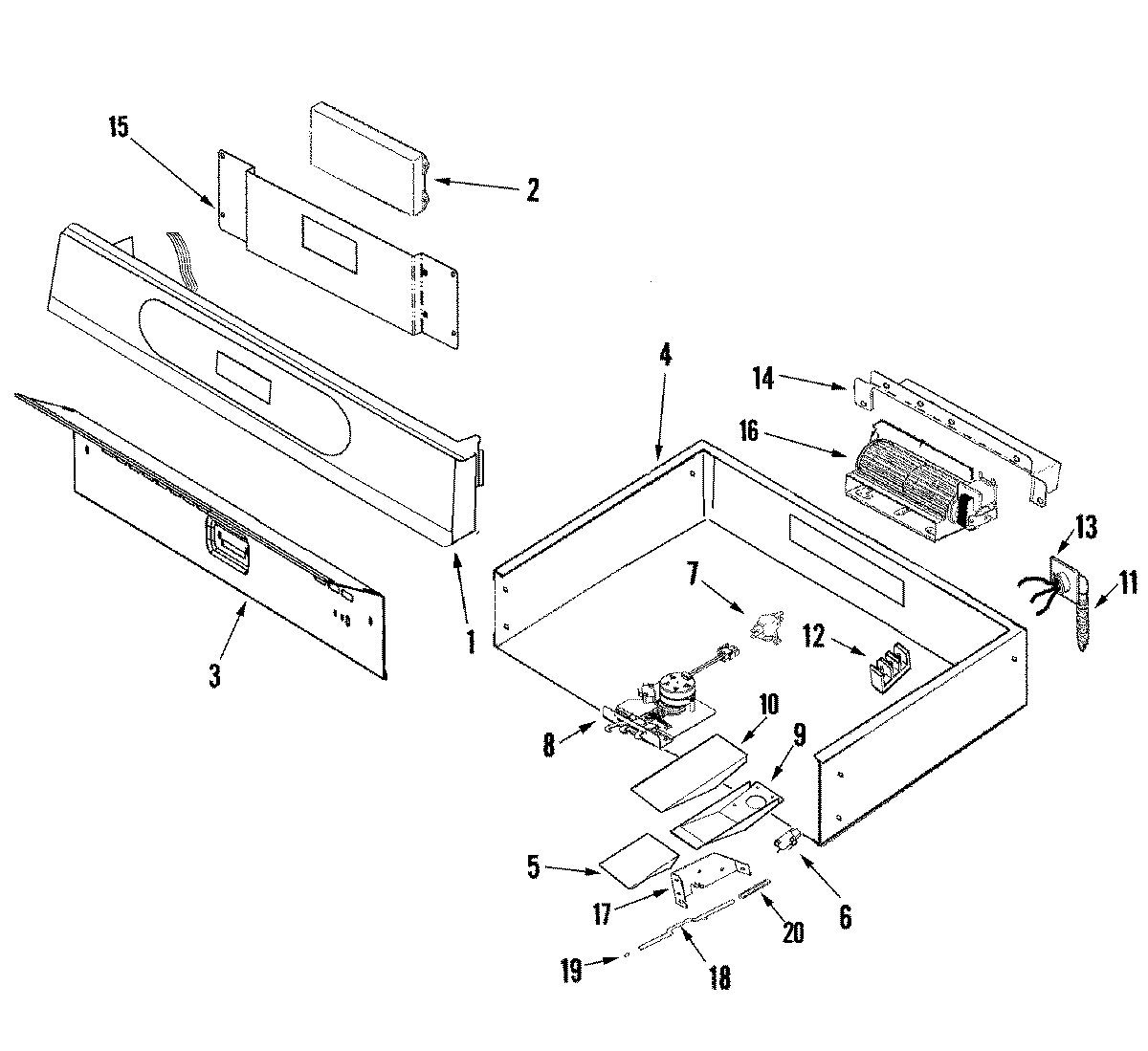

JJW9130DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	5765M487-60 Whirlpool Control Panel
1	MAY 74008268
2	MAY 74008952
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	WP74008263 Whirlpool Door Switch
6	MAY 74008264
7	MAY 314848
7	74008265 Whirlpool Oven High Limit Thermostat
8	MAY 7101P330-60
8	WPW10186996 Whirlpool Door Latch
8	SWTCH-LITE
9	MAY 74008294
10	MAY 71001847
11	MAY 74004222
11	MAY 74004735
12	KIT, HARDWARE ADAPTER
12	WP7103P027-60 Whirlpool Nut
12	WPW10245259 Whirlpool Terminal Block
12	MAY 7417P017-60
13	MAY 74004712
14	MAY 74008330
15	MAY 74008299
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74007586
