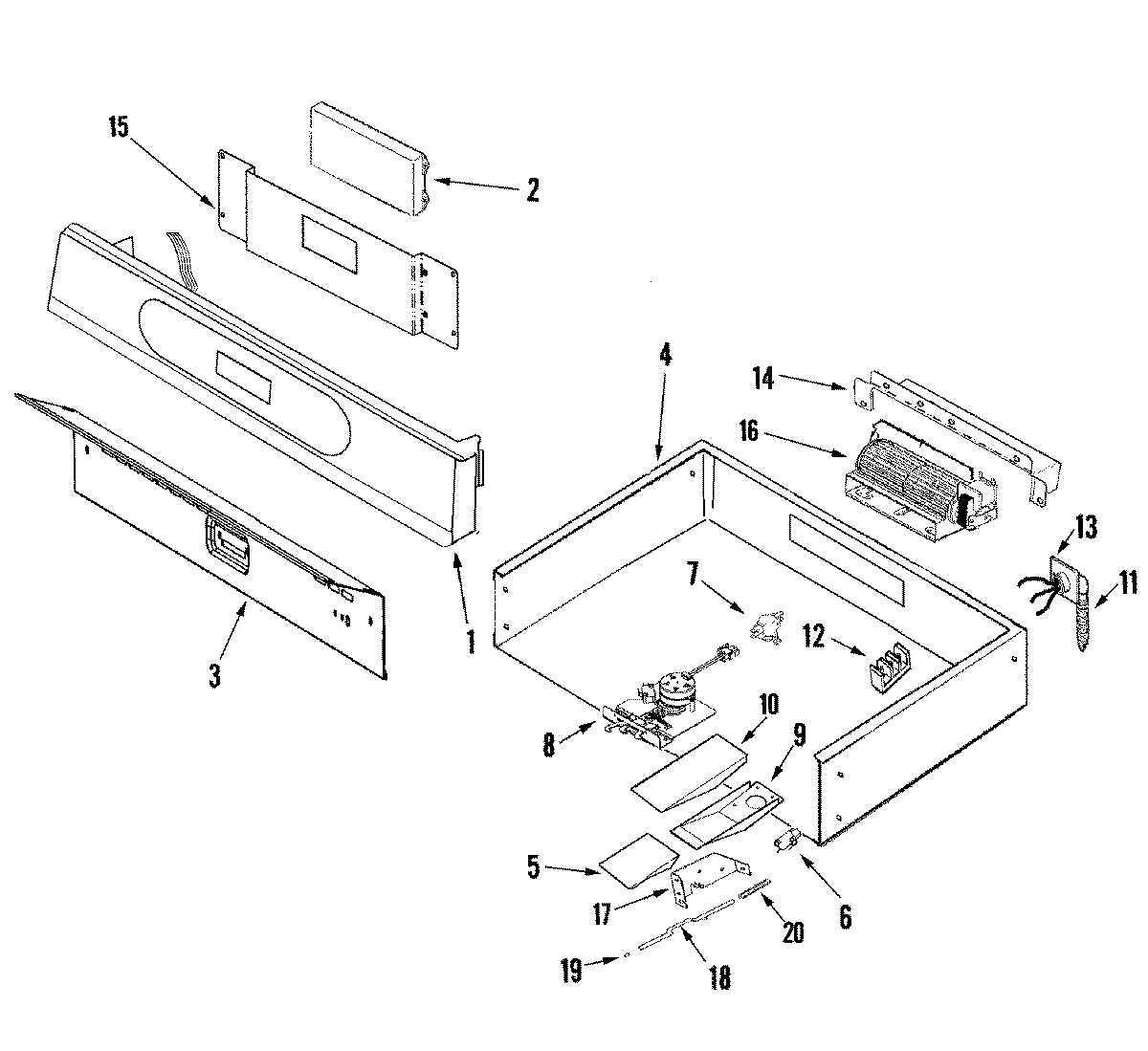

JJW9130DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008268
1MAY 74008958
2MAY 74008952
3MAY 74008261
4MAY 74008262
5MAY 71001843
6MAY 74008264
6WP74008263 Whirlpool Door Switch
774008265 Whirlpool Oven High Limit Thermostat
7MAY 314848
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
8SWTCH-LITE
9MAY 74008294
10MAY 71001847
11MAY 74004222
11MAY 74004735
12MAY 7417P017-60
12WPW10245259 Whirlpool Terminal Block
12WP7103P027-60 Whirlpool Nut
12KIT, HARDWARE ADAPTER
13MAY 74004712
14MAY 74008330
15MAY 74008299
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
