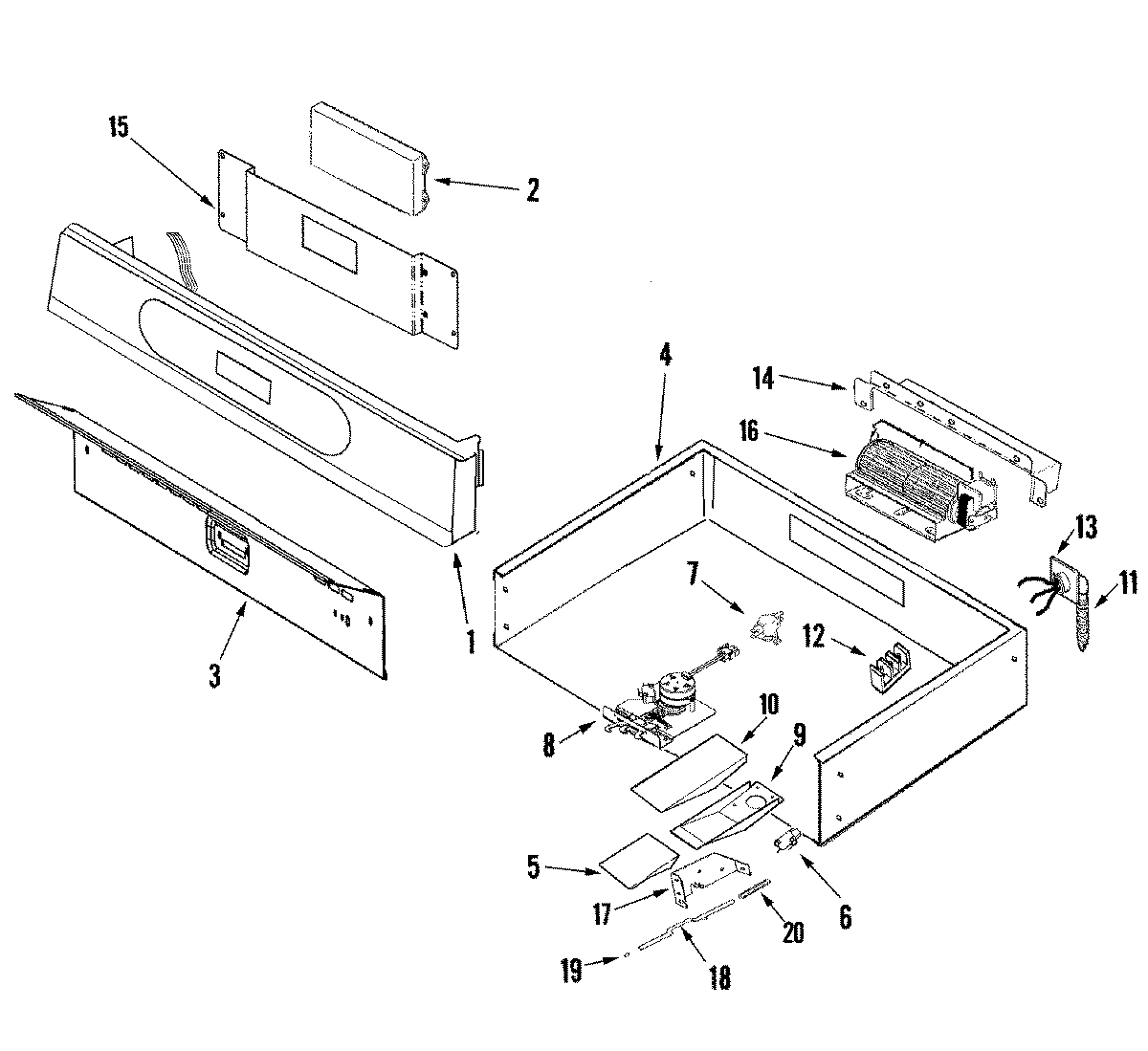

JJW9130DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
15765M487-60 Whirlpool Control Panel
1MAY 74008268
2MAY 74008952
3MAY 74008261
4MAY 74008262
5MAY 71001843
6WP74008263 Whirlpool Door Switch
6MAY 74008264
7MAY 314848
774008265 Whirlpool Oven High Limit Thermostat
8MAY 7101P330-60
8WPW10186996 Whirlpool Door Latch
8SWTCH-LITE
9MAY 74008294
10MAY 71001847
11MAY 74004222
11MAY 74004735
12KIT, HARDWARE ADAPTER
12WP7103P027-60 Whirlpool Nut
12WPW10245259 Whirlpool Terminal Block
12MAY 7417P017-60
13MAY 74004712
14MAY 74008330
15MAY 74008299
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
