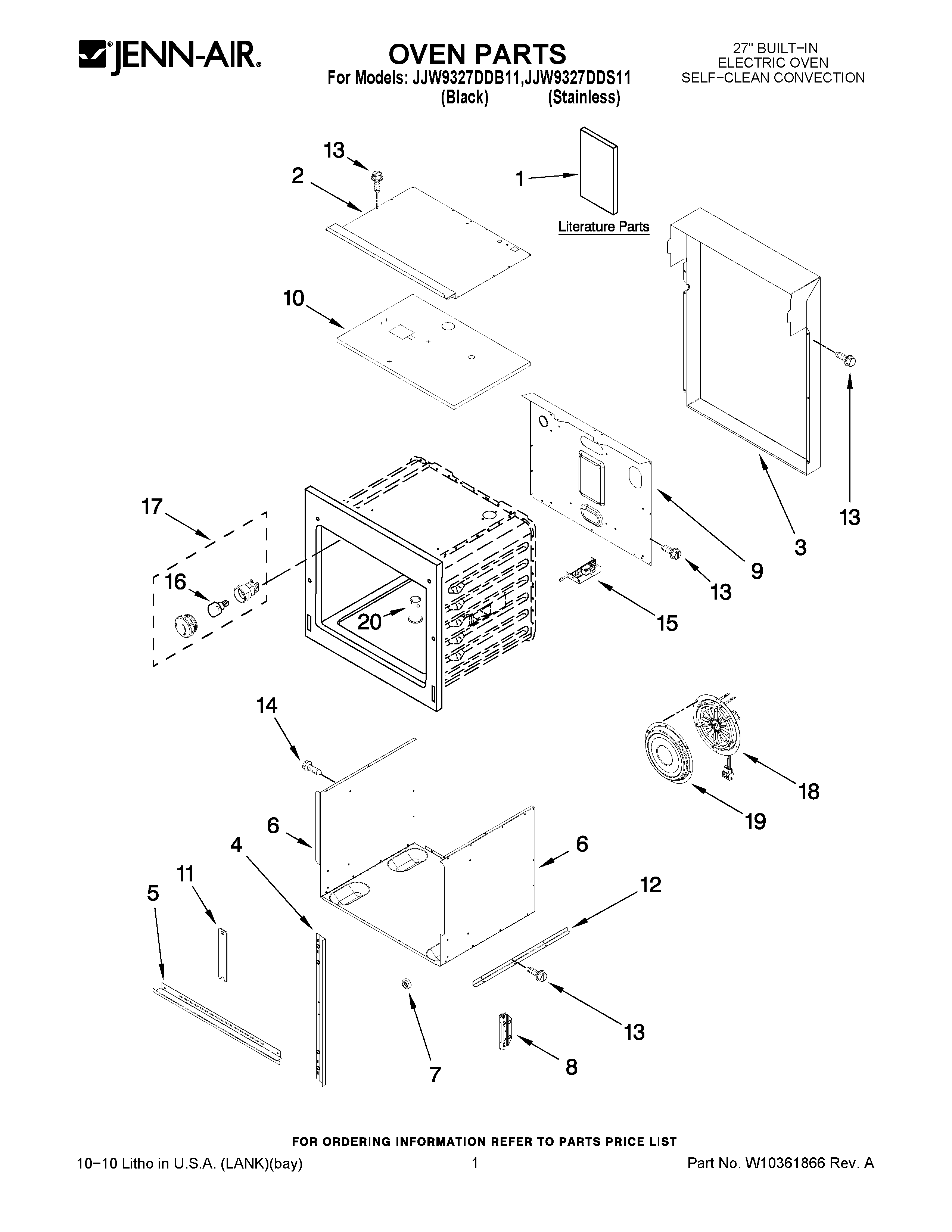

JJW9327DDS11 01 – OVEN PARTS

JJW9327DDS11 01 – OVEN PARTS

Written by

in

JJW9327DDS11 01 – OVEN PARTS

Products

PositionProduct
NIMAY 7002P367-60
NIINSULATION, BACK
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10176681
1DIAGRAM, WIRING (ENGLISH)
1DIAGRAM, WIRING (FRENCH)
1MAY W10176680
2MAY 2624F075-51
3MAY 2624F061-51
4TRIM, SIDE (BLACK)
5TRIM, OVEN (BLACK)
6MAY 2618F221-51
7BUMPER, RUBBER
8MAY 8014P031-60
9MAY 2624F055-51
10MAY 7002P357-60
11MAY 3605F236-50
12MAY 3802F116-51
13MAY 7101P426- 60
14MAY 7101P635-60
15ASSY., LIGHT SW
16RANGE ONLY 40W 120V APPL BULB
17MAY 7407P181-60
18FAN, CONVECTION
19COVER, CONV. FAN
20MAY 7505P322-60
