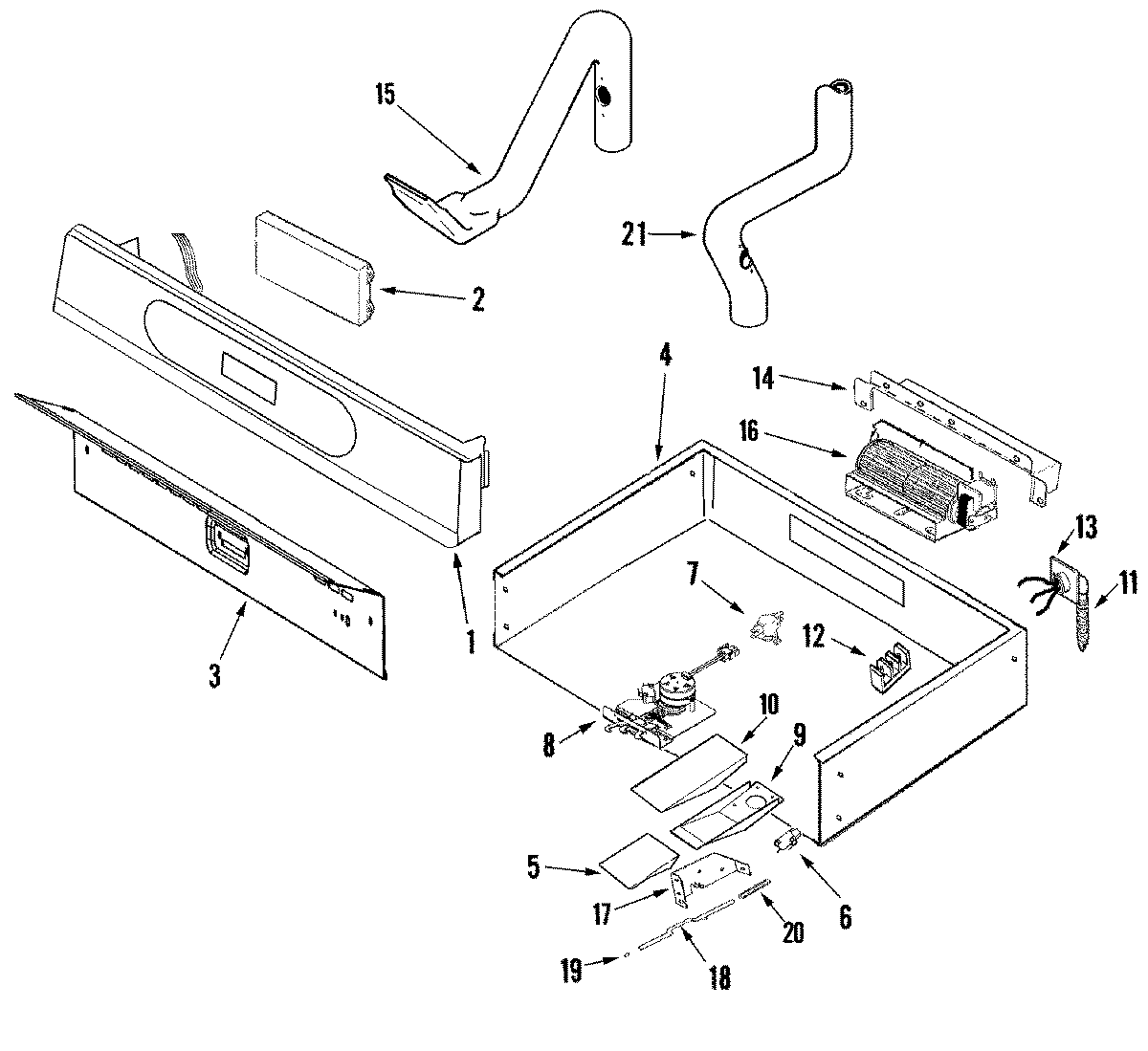

JJW9430DDB 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008954
2	MAY 74008953
2	MAY 74008268
3	MAY 74008261
4	MAY 74008262
5	MAY 71001843
6	WP74008263 Whirlpool Door Switch
6	MAY 74008264
7	7403P855-60 Whirlpool Thermostat
7	74008265 Whirlpool Oven High Limit Thermostat
7	MAY 314848
8	SWTCH-LITE
8	WPW10186996 Whirlpool Door Latch
8	MAY 7101P330-60
9	MAY 74008294
10	MAY 71001847
11	MAY 74004726
11	MAY 74004222
12	KIT, HARDWARE ADAPTER
12	MAY 7417P017-60
12	WP7103P027-60 Whirlpool Nut
12	MAY 7401P038-60
13	MAY 74004712
14	MAY 74008330
14	WP90767 Whirlpool Screw
15	MAY 71002417
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74001631
21	MAY 71002418
