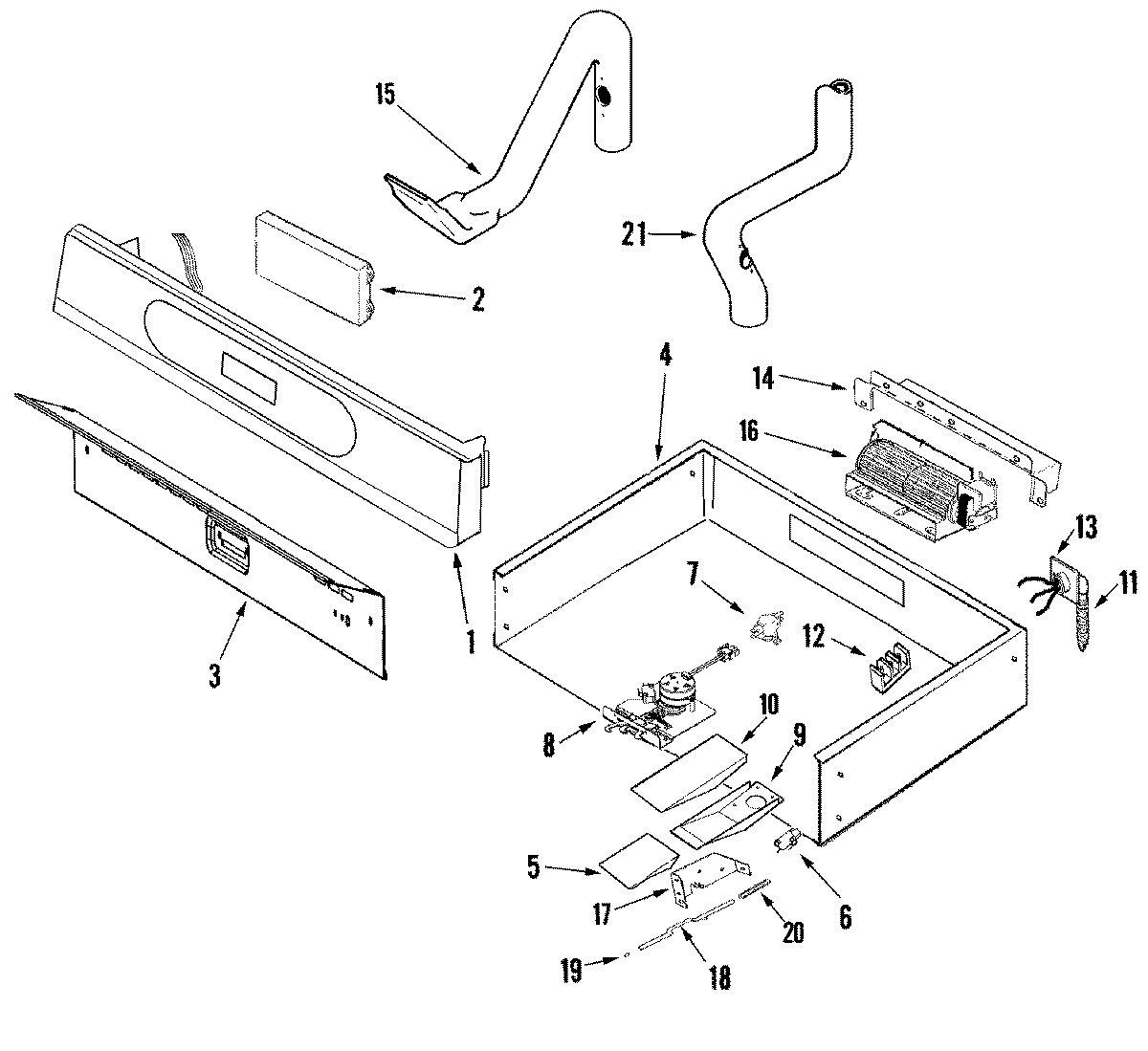

JJW9430DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

JJW9430DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

Written by

in

JJW9430DDS 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

PositionProduct
1MAY 74008955
2MAY 74008953
2MAY 74008268
3MAY 74008261
4MAY 74008262
5MAY 71001843
6WP74008263 Whirlpool Door Switch
6MAY 74008264
77403P855-60 Whirlpool Thermostat
774008265 Whirlpool Oven High Limit Thermostat
7MAY 314848
8SWTCH-LITE
8WPW10186996 Whirlpool Door Latch
8MAY 7101P330-60
9MAY 74008294
10MAY 71001847
11MAY 74004726
11MAY 74004222
12KIT, HARDWARE ADAPTER
12MAY 7417P017-60
12WP7103P027-60 Whirlpool Nut
12MAY 7401P038-60
13MAY 74004712
14MAY 74008330
14WP90767 Whirlpool Screw
15MAY 71002417
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74001631
21MAY 71002418
