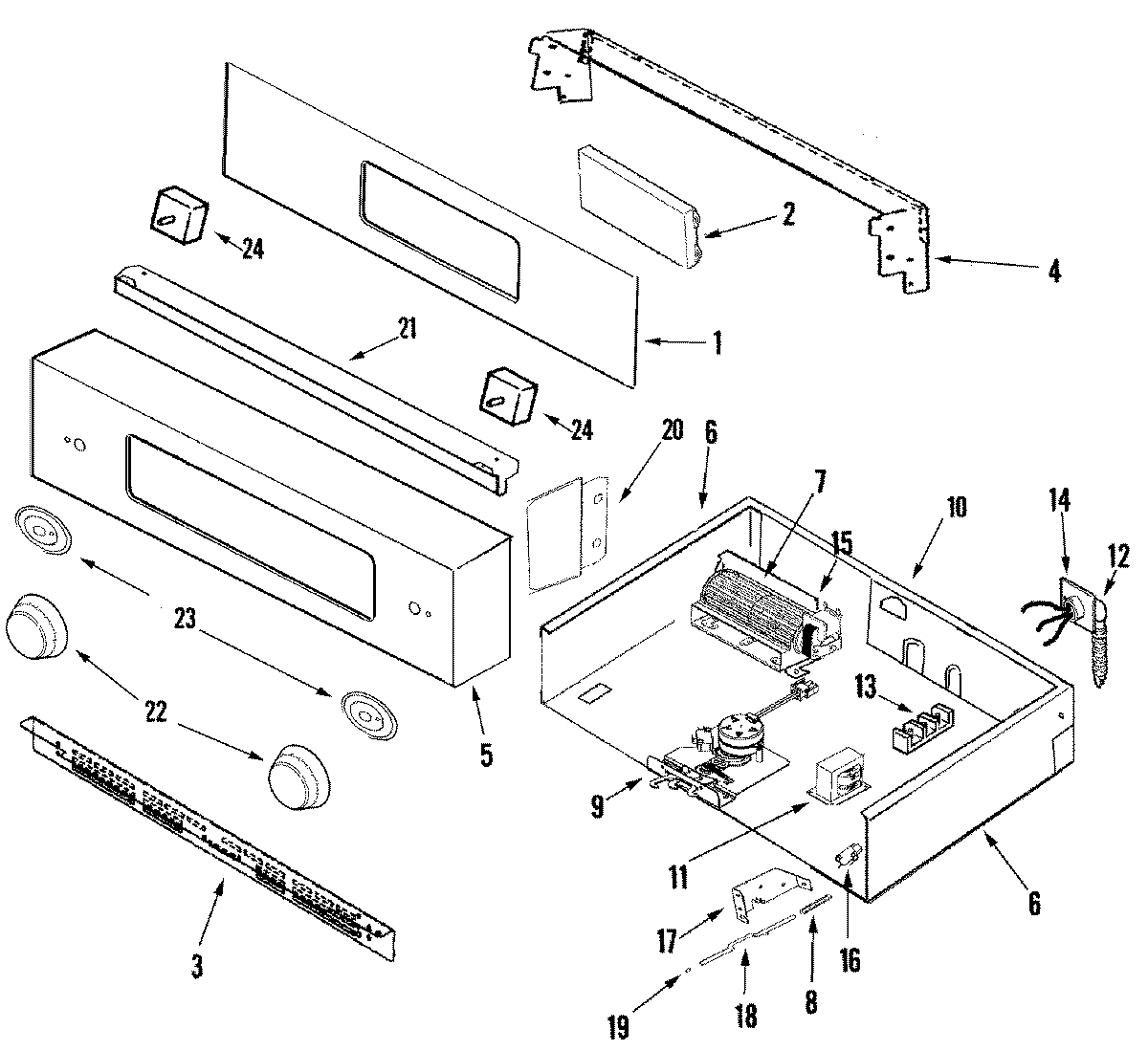

JJW9530DDP 02 – CONTROL PANEL & INTERNAL CONTROLS (PRO)

Products

PositionProduct
1MAY 74008480
2MAY 74009719
2MAY 74008489
3MAY 74008491
4MAY 74008362
5MAY 74008485
6MAY 74008360
6MAY 74008359
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
10MAY 74008382
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 74005416
12MAY 74004222
12MAY 74004726
13KIT, HARDWARE ADAPTER
13WP7103P027-60 Whirlpool Nut
13WPW10245259 Whirlpool Terminal Block
13MAY 7417P017-60
14MAY 74004712
15WP90767 Whirlpool Screw
15MAY 74008343
16MAY 7101P330-60
16MAY 74008264
16WP74008263 Whirlpool Door Switch
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74001631
20MAY 74008482
21MAY 74008487
22MAY 74008493
23MAY Y704977
23MAY 74008494
24MAY 74008488
