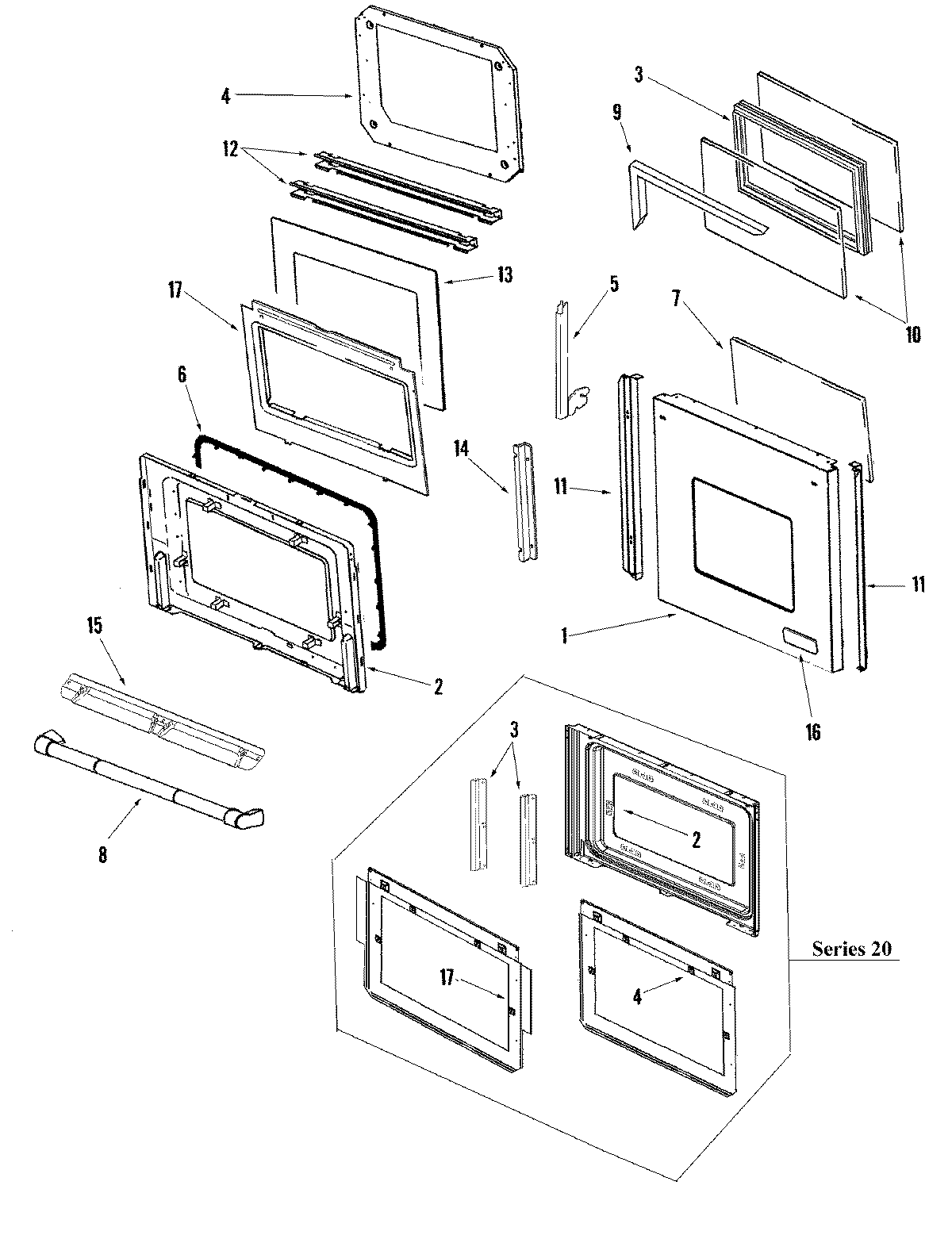

JJW9530DDP 03 – DOOR (PRO)

Products

Position	Product
1	MAY 74008495
2	MAY 74011462
2	MAY 74008413
3	SCREW, 8 X 1/2
3	3801F886-51 Whirlpool Mounting Bracket
3	FRAME, GLASS
4	MAY 74011461
4	MAY 74008414
5	12002489 Whirlpool Dishwasher Hinge and Receptacle Kit
5	SCREW (10-24X5/16-NI)
5	WP74010283 Whirlpool Door Hinge
6	WPW10162386 Whirlpool Door Gasket
7	MAY 74005633
8	MAY 71001723
8	WP7701P475-60 Whirlpool Door Handle
9	INSULATION, OVEN DOOR
10	74003645 Whirlpool Range Oven Door Inner Glass
11	MAY 74008496
11	MAY 74008497
12	MAY 74008498
12	SCREW
13	MAY Y74008423
14	WP90767 Whirlpool Screw
14	MAY 74003650
15	MAY 74008392
15	WPY706189 Whirlpool Stove Screw
16	MAY 74006889
17	MAY 74003648
17	3601F373-51 Whirlpool Baffle
