JJW9530DDP29 03 – INTERNAL OVEN PARTS – Aparts

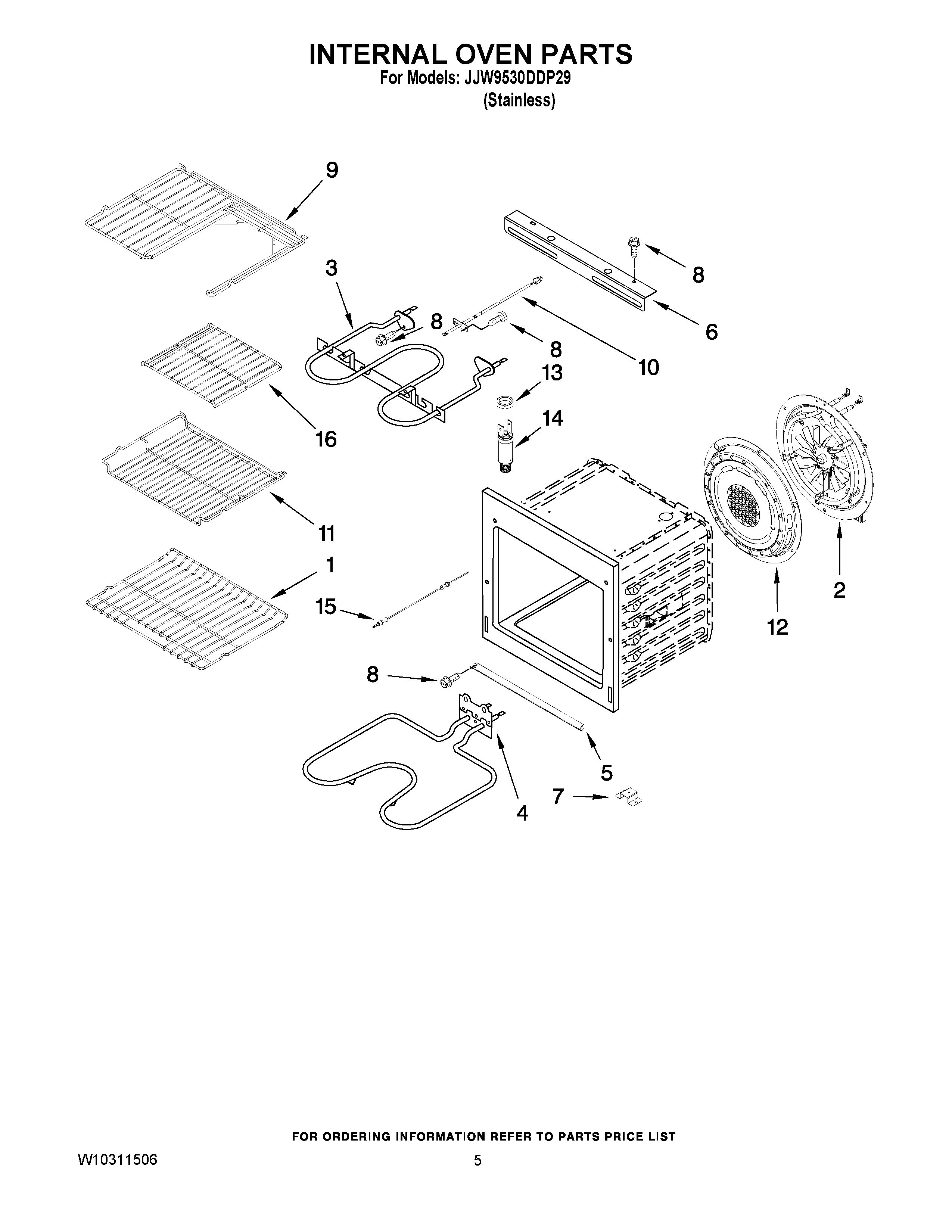

JJW9530DDP29 03 – INTERNAL OVEN PARTS

Products

Position	Product
1	MAY W10273863
2	ASSY., CONVECT FAN
3	MAY W10184147
4	MAY 7406P322-60
5	MAY 3807F678-45
6	SUPPORT, BROIL ELEMENT
7	MAY 3801F823-51
8	MAY 7101P426- 60
9	MAY W10273862
10	MAY 7430P043-60
11	MAY 7801P162-60
12	MAY 3605F336-19
13	NUT
14	RECEPTACLE, MEAT PROBE
15	MAY 7430P038-60
16	RACK, OVEN HALF (INSERT)
