JJW9530DDP29 04 – CONTROL PANEL PARTS

JJW9530DDP29 04 – CONTROL PANEL PARTS

Written by

in

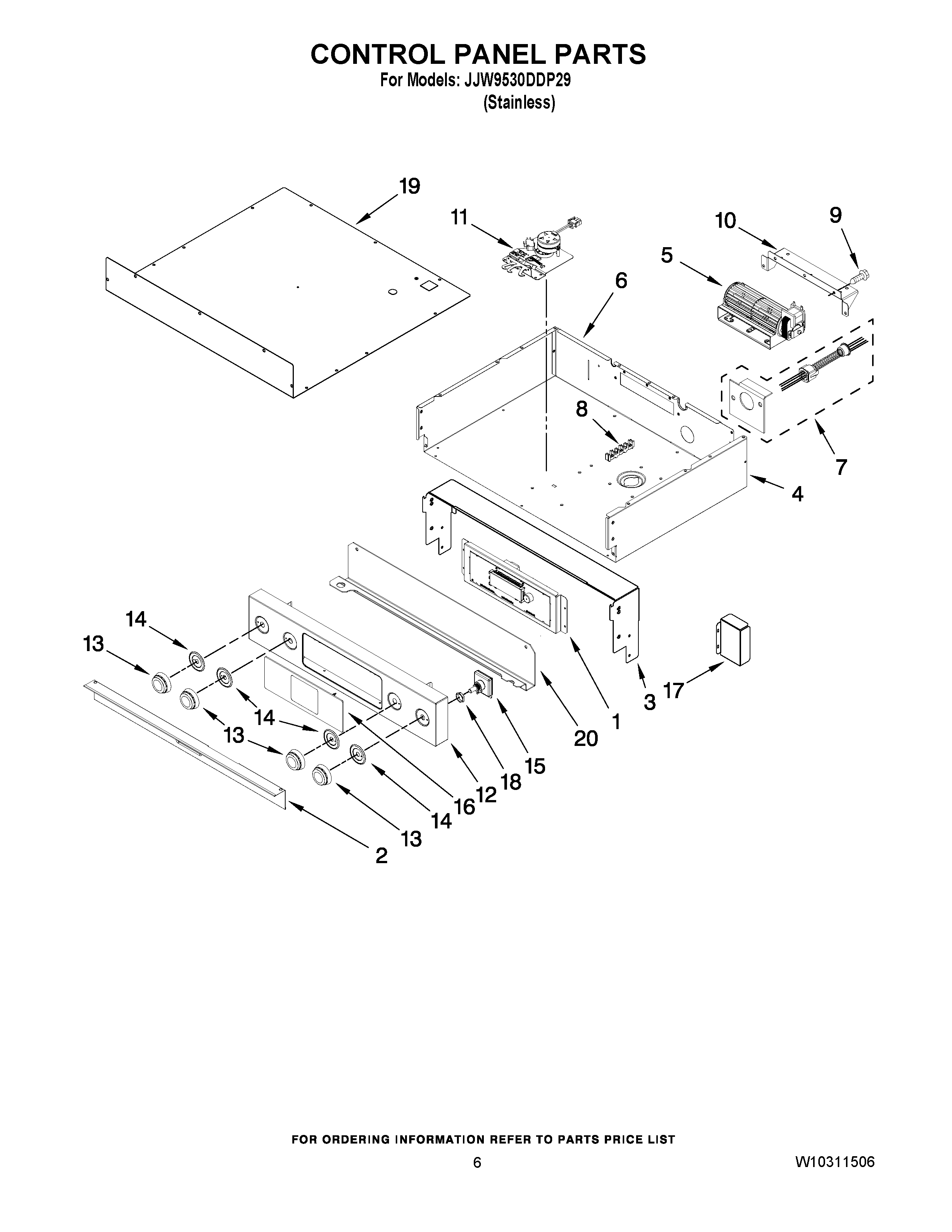

JJW9530DDP29 04 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY 8507P338-60
2MAY 3608F109-70
3SUPPORT, TOP CNTRL
4PANEL, CNTRL SIDE (LEFT)
4PANEL, CNTRL SIDE (RIGHT)
5FAN, TANGENTIAL
6PANEL, CONTROL BOX REAR
7ASSEMBLY, CABLE
8WPW10245259 Whirlpool Terminal Block
9MAY 7101P426- 60
10BRKT., COOLING FAN
11ASSY., LATCH DOOR
12MAY 7720P544-60
13MAY 7711P506-60
14MAY 7740P149-60
15MAY 7422P015-60
16MAY 7912P375-60
17MAY 4005F698-51
18NUT
19MAY 2624F098-44
20MAY 3804F246-51
