JJW9530DDW 03 – DOOR

JJW9530DDW 03 – DOOR

Written by

in

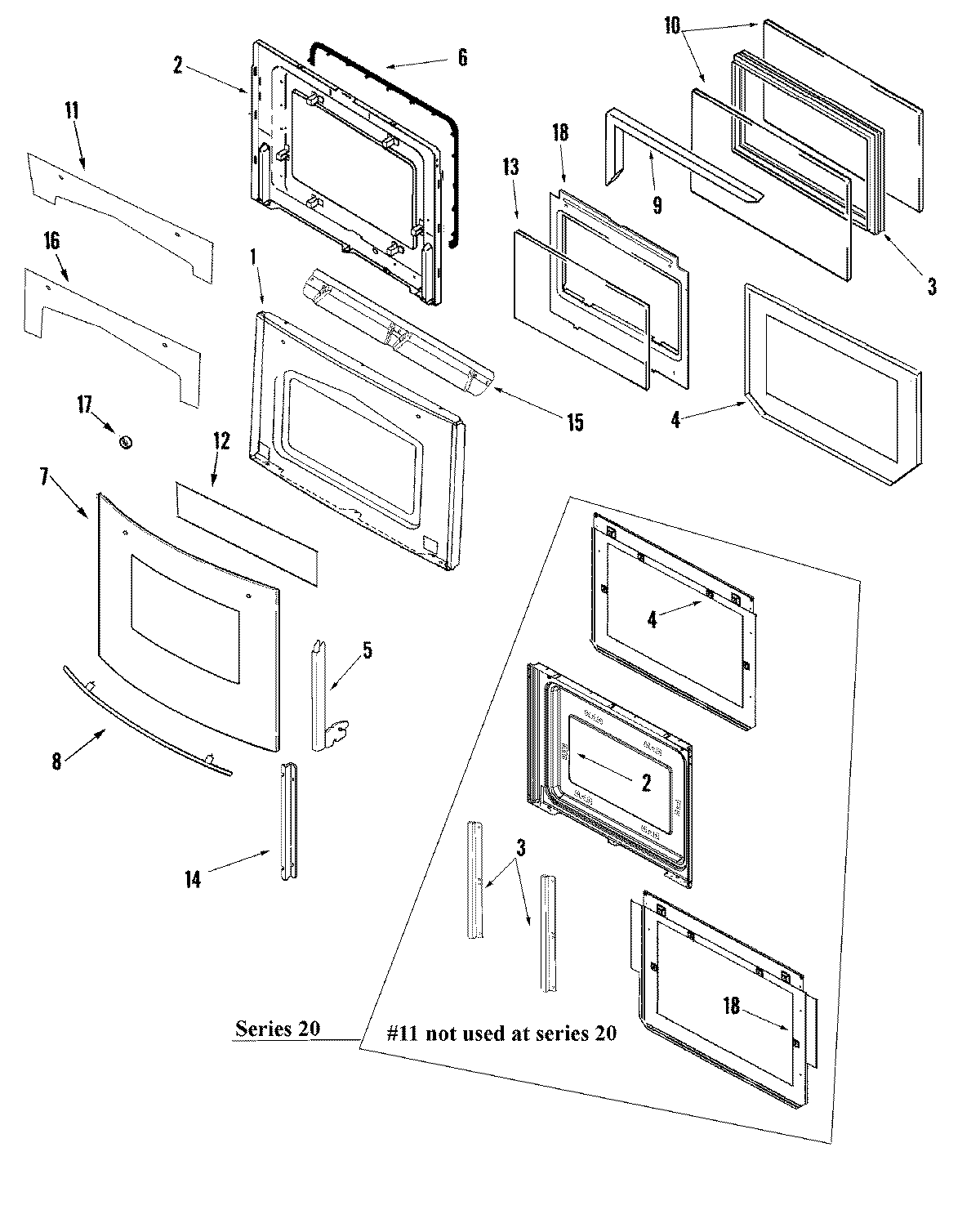

JJW9530DDW 03 – DOOR

Products

PositionProduct
1MAY 74008412
2MAY 74011462
2MAY 74008413
33801F886-51 Whirlpool Mounting Bracket
3SCREW, 8 X 1/2
3FRAME, GLASS
4MAY 74008414
4MAY 74011461
512002489 Whirlpool Dishwasher Hinge and Receptacle Kit
5WP74010283 Whirlpool Door Hinge
5SCREW (10-24X5/16-NI)
6WPW10162386 Whirlpool Door Gasket
7MAY 74008418
8WP74008625 Whirlpool Door Handle
9INSULATION, OVEN DOOR
1074003645 Whirlpool Range Oven Door Inner Glass
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 74008422
13MAY Y74008423
14MAY 74003650
14WP90767 Whirlpool Screw
15WPY706189 Whirlpool Stove Screw
15MAY 74008392
17MAY 715634
18MAY 74003648
183601F373-51 Whirlpool Baffle
