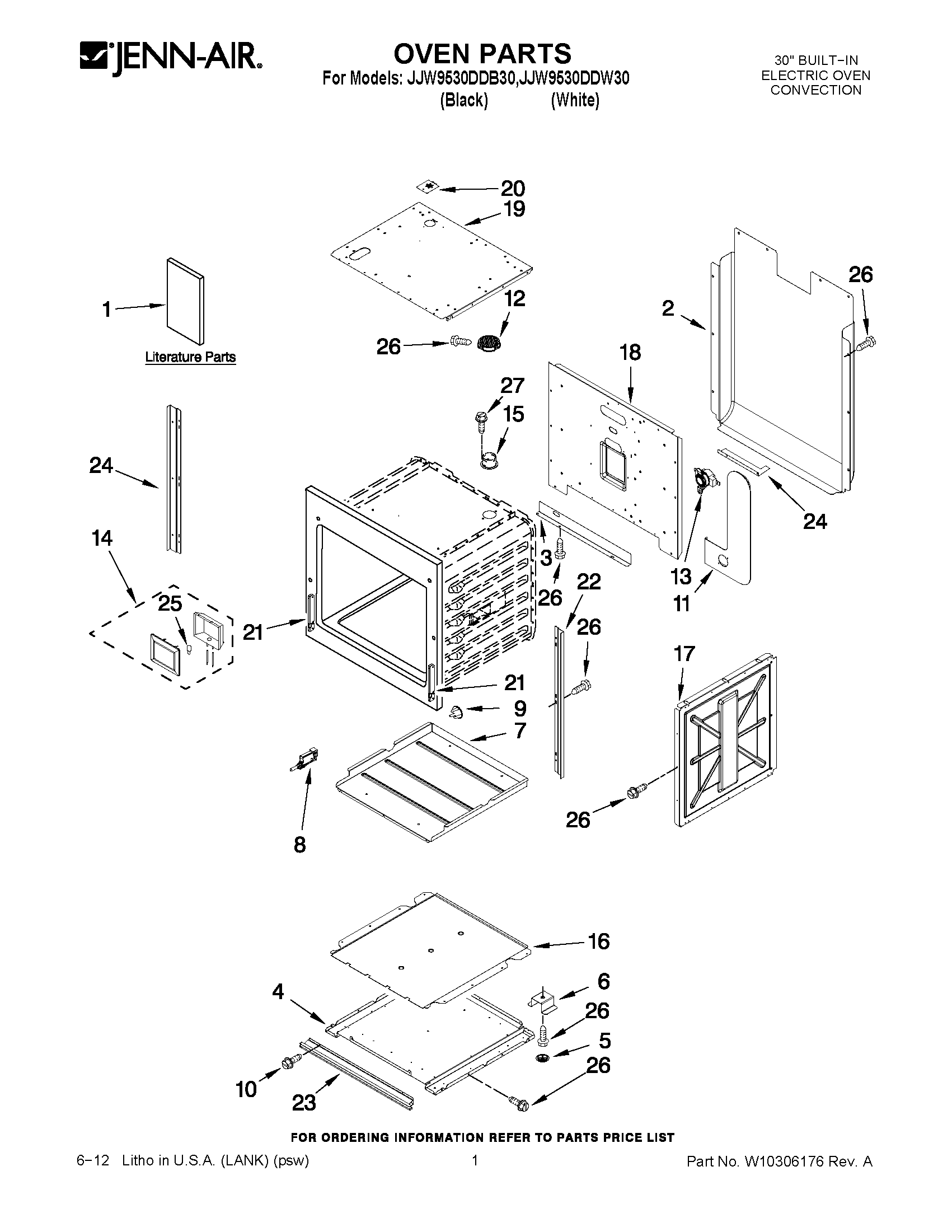

JJW9530DDW30 01 – OVEN PARTS

JJW9530DDW30 01 – OVEN PARTS

Written by

in

JJW9530DDW30 01 – OVEN PARTS

Products

PositionProduct
NIMAY 7002P352-60
NIMAY 7002P423-60
1OWNERS MANUAL
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8119P258-60
1MAY 8119P253-60
1TIPS, SAFE COOKING (FRENCH)
1MAY 8101P602-60
2MAY 2624F043-51
3BAFFLE, REAR LOWER
4MAY 2624F079-51
5MAY 8038P035-60
6SUPPORT, AIR CHANNEL
7MAY 3401F079-45
8ASSY., LIGHT SW
9MAY 7718P033-60
10MAY 7101P427-60
11MAY 4006W217-45
12SCREEN, SMOKE ELM.
13SWITCH, HI LIMIT
14ASSEMBLY, LIGHT
15MAY 8026P065-60
16CHANNEL, BOTTOM
17MAY 2618F215-51
18MAY 2624F094-51
19PNL, TOP RETAINER
20MAY 4005F726-45
21RECEIVER, HINGE
22MAY 7744P461-60
22MAY 7744P460-60
23TRIM, BOTTOM VENT
24COVER, REAR
25BULB, OVEN
26MAY 7101P426- 60
27MAY 7101P434-60
