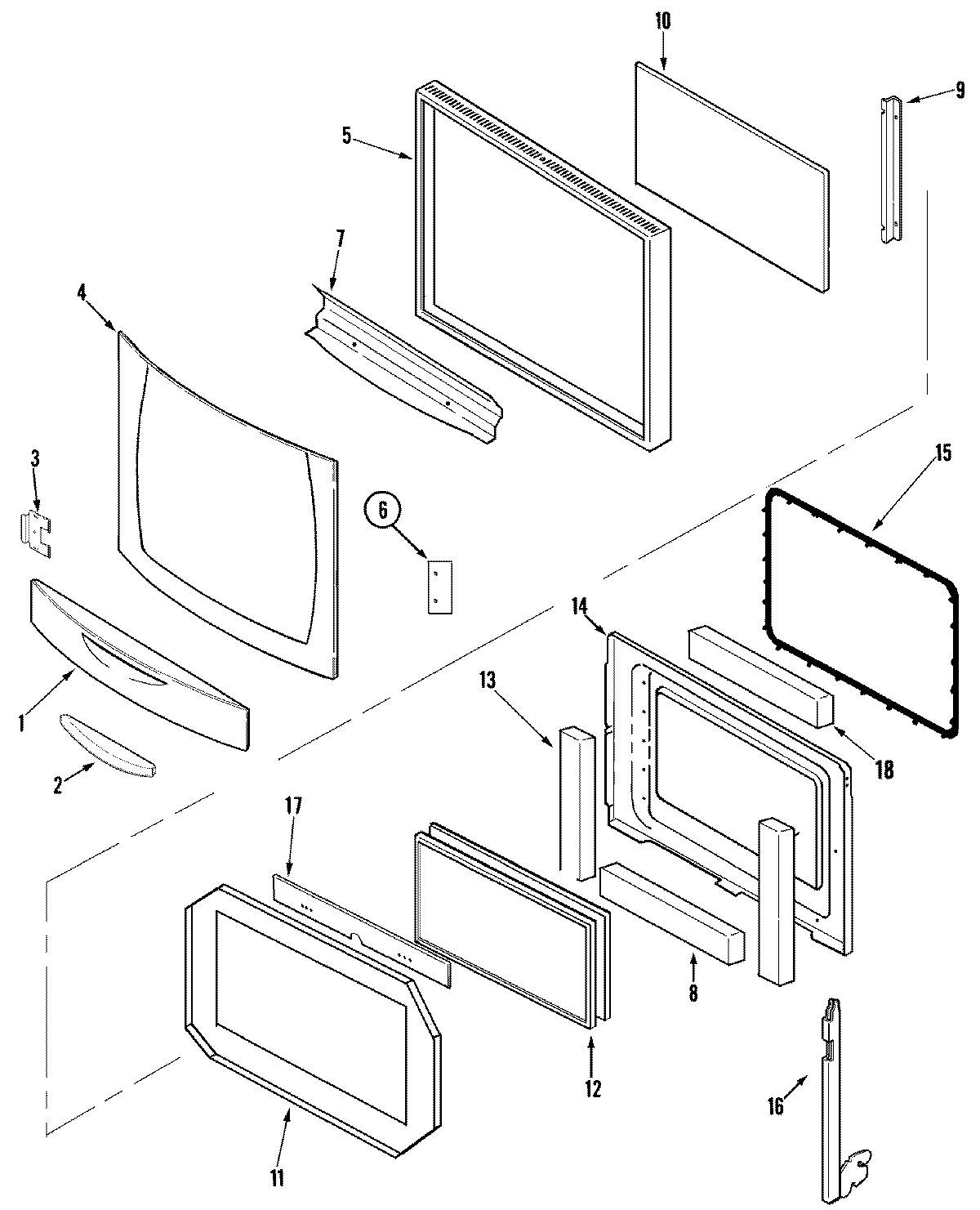

JJW9630CCS 03 – DOOR (UPPER & LOWER)(STL)

JJW9630CCS 03 – DOOR (UPPER & LOWER)(STL)

Written by

in

JJW9630CCS 03 – DOOR (UPPER & LOWER)(STL)

Products

PositionProduct
1MAY 74006916
1MAY 74006913
1SCREW
2WP400021-1 Whirlpool Screw
2MAY 7109P036-60
2MAY 74005592
3MAY 71003386
4MAY 74006914
5WPY706189 Whirlpool Stove Screw
5MAY 74006310
6MAY 74006907
7GASKET, WINDOW
7MAY 74006892
8MAY 71001838
9WP90767 Whirlpool Screw
9MAY 74003650
10MAY 74006915
11MAY 715634
11MAY 74005648
12MAY 74005641
13MAY 71001839
14MAY 74005642
15WP71001841 Whirlpool Door Seal
16W10828565 Whirlpool Screw
16WP74008014 Whirlpool Range Oven Door Hinge
17MAY 74005614
17MAY 702731
18MAY 74005634
