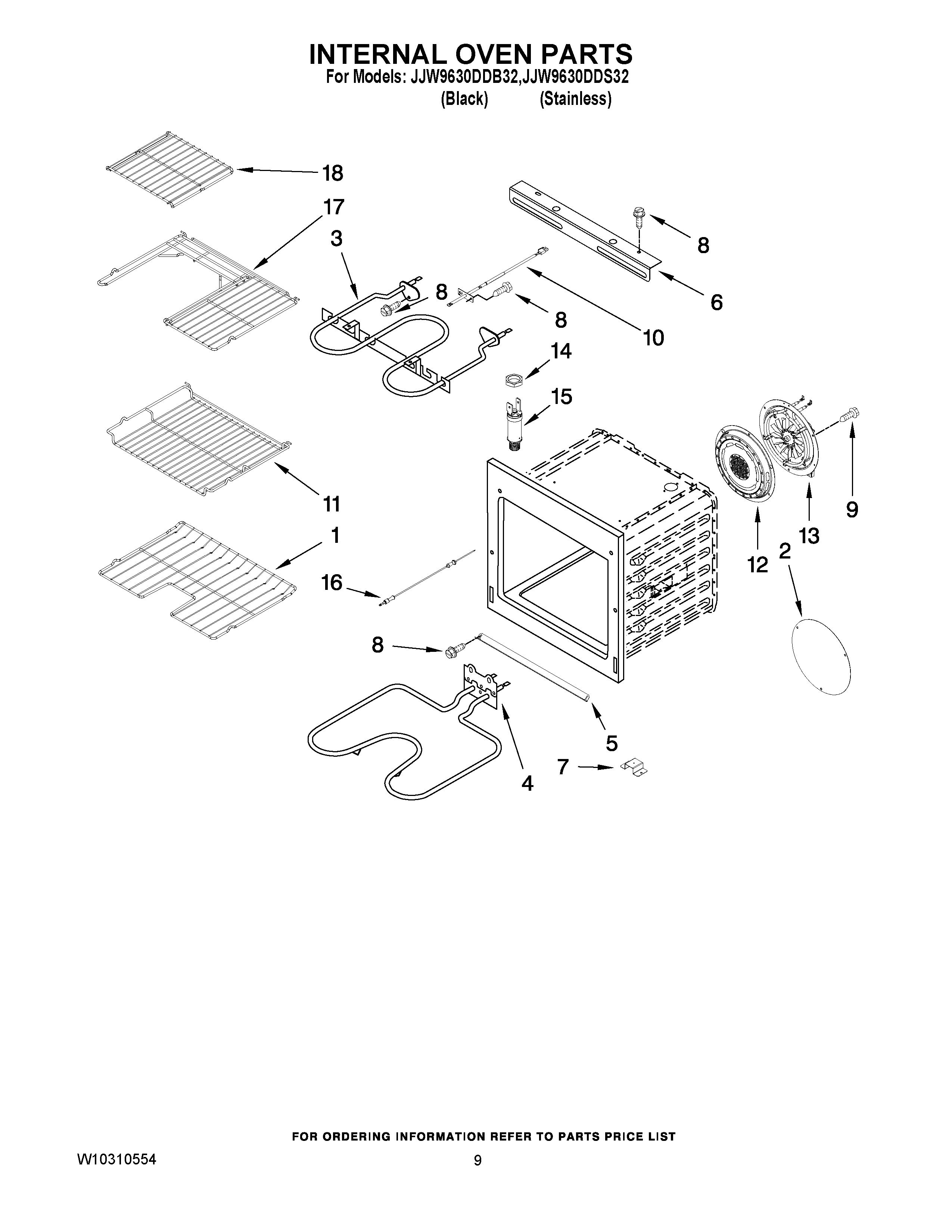

JJW9630DDB32 05 – INTERNAL OVEN PARTS

JJW9630DDB32 05 – INTERNAL OVEN PARTS

Written by

in

JJW9630DDB32 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	MAY W10273863
2	MAY 3605F211-19
3	MAY W10184147
4	MAY 7406P322-60
5	MAY 3807F678-45
6	SUPPORT, BROIL ELEMENT
7	MAY 3801F823-51
8	MAY 7101P426- 60
9	MAY 7101P500-60
10	MAY 7430P046-60
11	MAY 7801P162-60
12	MAY 3605F336-19
13	ASSY., CONVECT FAN
14	NUT
15	RECEPTACLE, MEAT PROBE
16	MAY 7430P038-60
17	MAY W10273862
18	RACK, OVEN HALF (INSERT)
