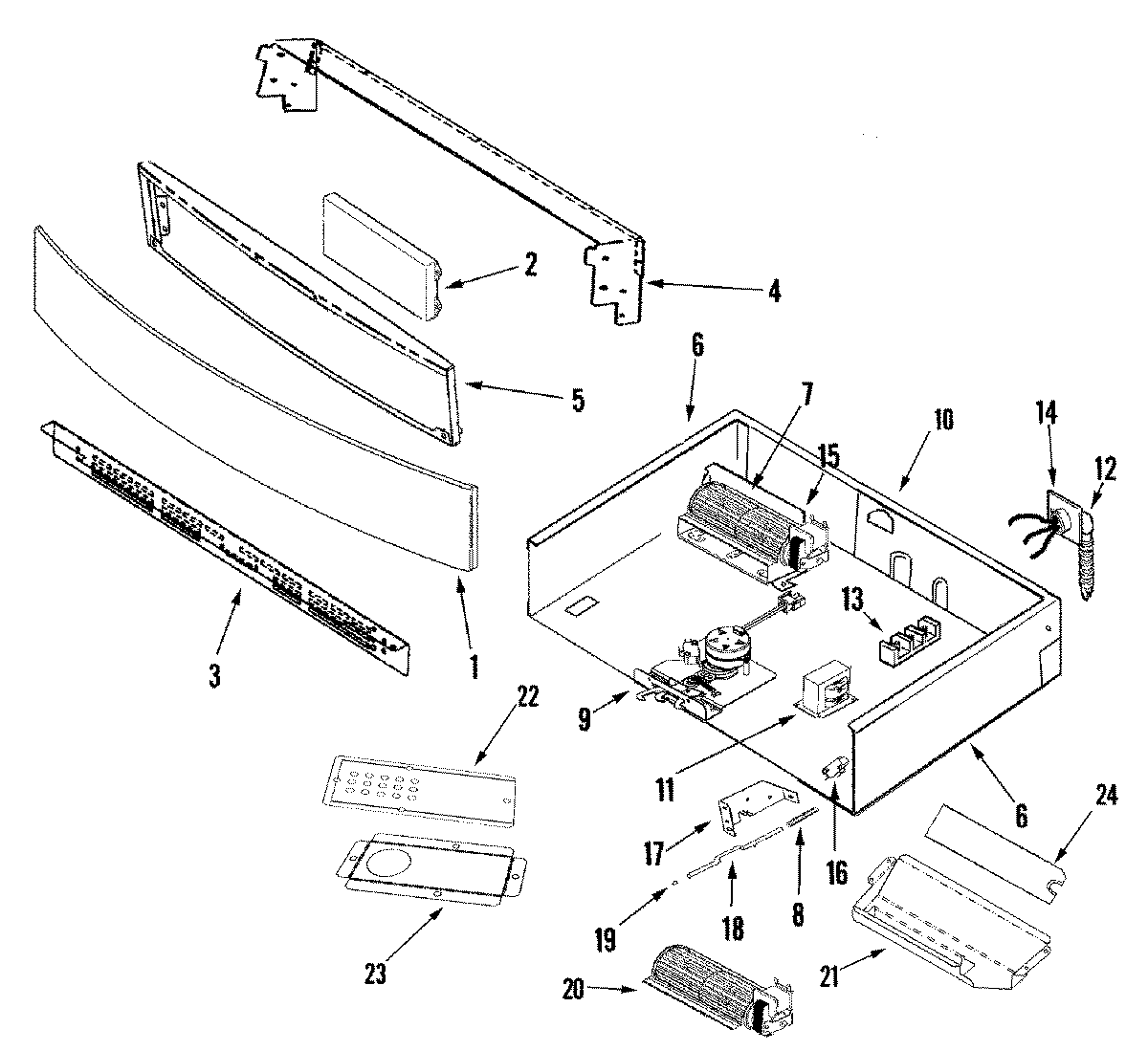

JJW9630DDW 02 – CONTROL PANEL AND INTERNAL CONTROLS

Products

Position	Product
1	MAY 74008560
2	MAY W10182905
2	WPW10169131 Whirlpool Electronic Control Board
3	MAY 74008401
4	MAY 74008362
5	MAY 74008402
6	MAY 74008359
6	MAY 74008360
7	WP74008383 Whirlpool Tangential Fan
9	WPW10186996 Whirlpool Door Latch
10	MAY 74008382
10	PANEL, CONTROL BOX REAR
11	MAY 74005416
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 74004222
12	MAY 74004726
13	KIT, HARDWARE ADAPTER
13	WPW10245259 Whirlpool Terminal Block
13	MAY 7417P017-60
13	WP7103P027-60 Whirlpool Nut
14	MAY 74004712
15	WP90767 Whirlpool Screw
15	MAY 74008343
16	WP74008263 Whirlpool Door Switch
16	MAY 7101P330-60
16	MAY 74008264
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74001631
20	MAY 74008437
21	MAY 74008432
22	MAY 74008444
23	MAY 74008445
24	MAY 74008451
