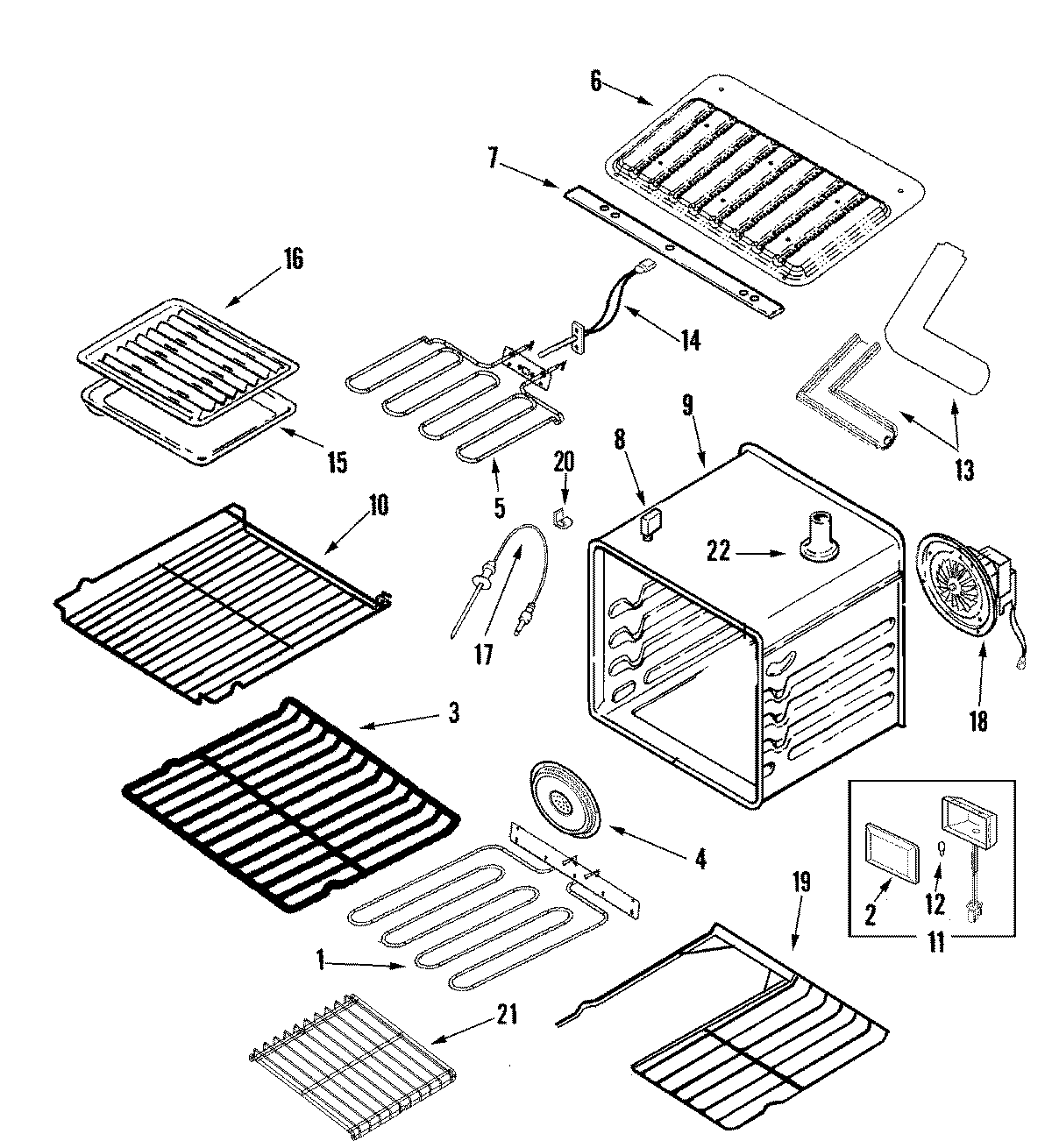

JJW9630DDW 04 – OVEN

Products

Position	Product
1	WP7406P322-60 Whirlpool Bake Element
2	WP74004607 Whirlpool Light Lens
3	WPW10282492 Whirlpool Oven Rack
4	MAY 71002903
4	MAY 74008461
4	WP74003976 Whirlpool Screw
4	MAY 74009712
5	WPW10184147 Whirlpool Broil Element
5	MAY W10184147
5	MAY 7406P500-60
6	MAY 74008408
7	MAY 71001394
7	WP400021-1 Whirlpool Screw
7	MAY 74003563
8	MAY Y703356
9	INSULATION, OVEN DOOR
10	74003645 Whirlpool Range Oven Door Inner Glass
11	MAY 74008422
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY Y74008423
14	MAY 74003650
14	MAY 7430P046-60
14	WP90767 Whirlpool Screw
15	MAY 74008392
15	WPY706189 Whirlpool Stove Screw
16	MAY 7101P330-60
16	MAY 74008264
16	WP74008263 Whirlpool Door Switch
17	MAY 715634
17	BRACKET, SWITCH ACTUATOR
18	ROD, DOOR LIGHT SWITCH
19	MAY 74001631
20	MAY 71001170
20	MAY 74008437
21	INSERT, HALF RACK 30“
21	MAY 74008432
21	INSERT, HALF RACK 30“
22	MAY 74008447
22	MAY 74008444
22	MAY 74009838
23	RACK, SMART & EASY (30“)
23	MAY 74008445
24	MAY 74008451
