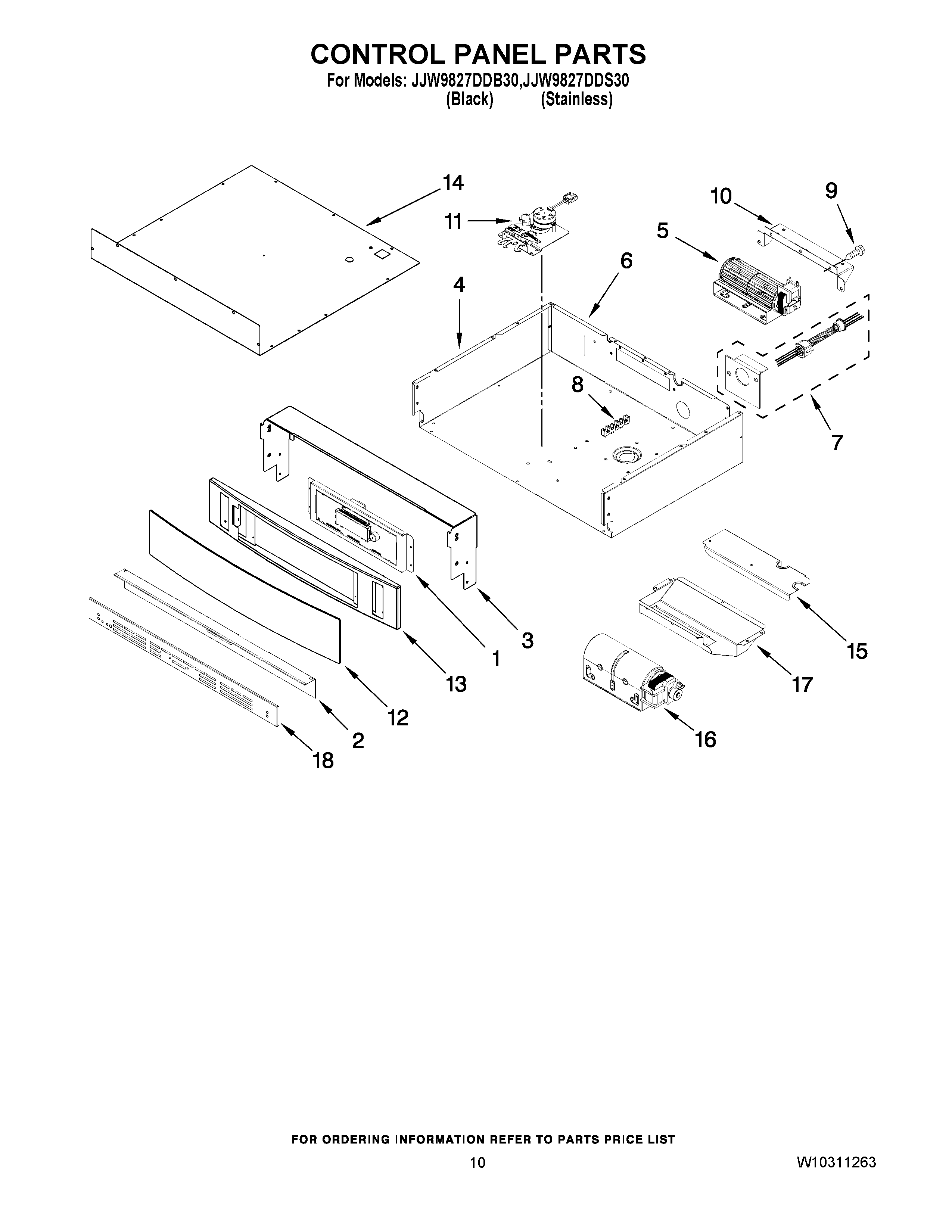

JJW9827DDB30 06 – CONTROL PANEL PARTS

JJW9827DDB30 06 – CONTROL PANEL PARTS

Written by

in

JJW9827DDB30 06 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10169130
2MAY 3608F106-70
3SUPPORT, TOP CNTRL
4PANEL, CNTRL SIDE (LEFT)
4PANEL, CNTRL SIDE (RIGHT)
5FAN, TANGENTIAL
6PANEL, CONTROL BOX REAR
7MAY 5700P821-60
8WPW10245259 Whirlpool Terminal Block
9MAY 7101P426- 60
10BRKT., COOLING FAN
11ASSY., LATCH DOOR
12MAY 7912P363-60
12MAY 7912P367-60
13MAY 3807W663-70
14MAY 2624F098-44
15MAY 4005F785-51
16MAY 7427P065-60
17MAY 3801F772-51
18MAY 3608F111-70
