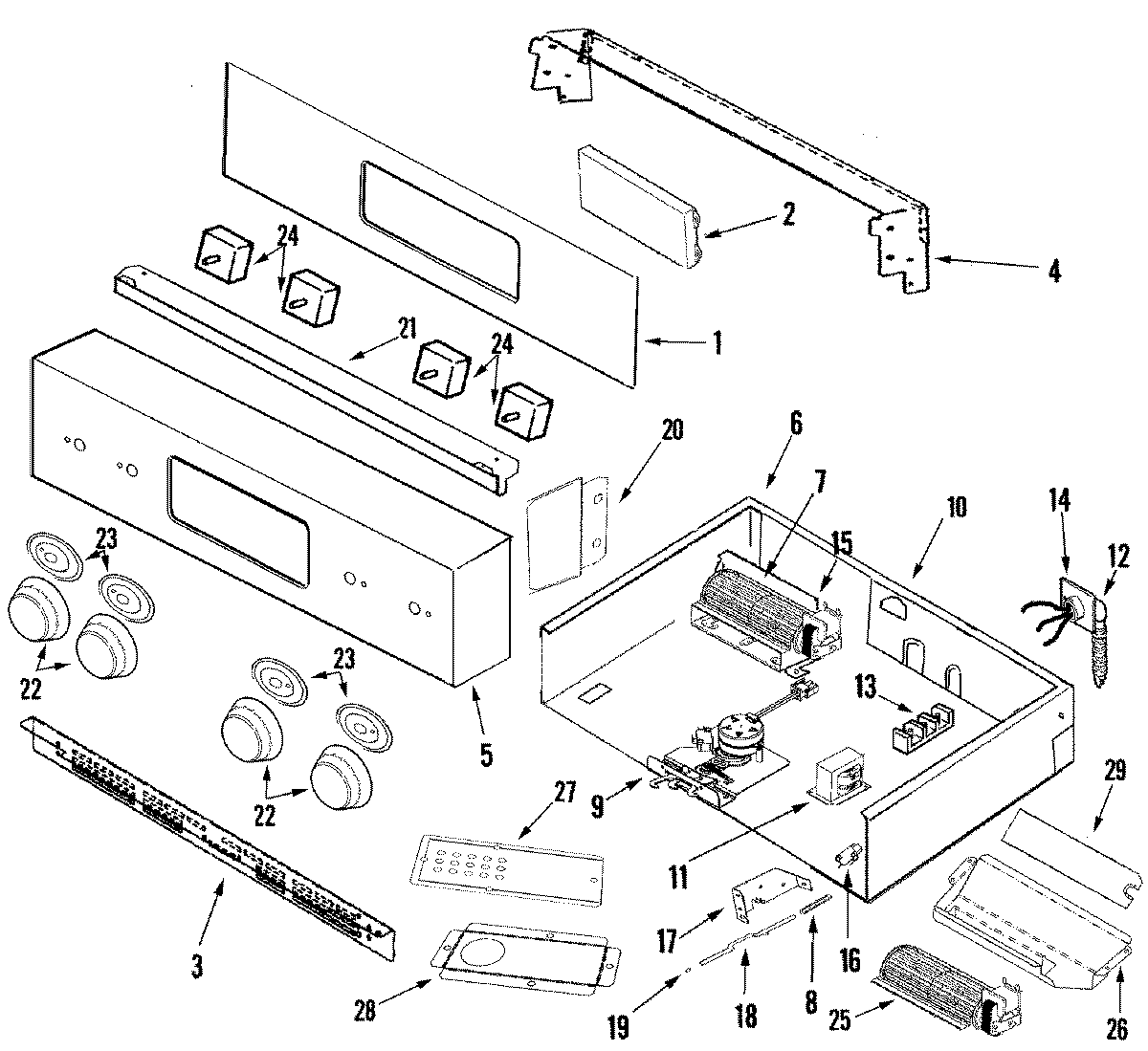

JJW9827DDP 02 – CONTROL PANEL & INTERNAL CONTROLS (PRO)

Products

PositionProduct
1MAY 74008479
2MAY 74008516
2MAY 74009720
3MAY 74008509
4MAY 74008362
5MAY 74008510
6MAY 74008359
6MAY 74008360
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
10MAY 74008382
10PANEL, CONTROL BOX REAR
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004222
12MAY 74004726
13MAY 7417P017-60
13WP7103P027-60 Whirlpool Nut
13WPW10245259 Whirlpool Terminal Block
13KIT, HARDWARE ADAPTER
14MAY 74004712
15MAY 74008343
16MAY 74008264
16WP74008263 Whirlpool Door Switch
16MAY 7101P330-60
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74001631
20MAY 74008481
21MAY 74008487
22MAY 74008493
23MAY 74008494
23MAY Y704977
24MAY 74008488
25MAY 74008437
26MAY 74008432
27MAY 74008444
28MAY 74008445
28WP90767 Whirlpool Screw
29MAY 74008451
