JJW9830DDP 02 – CONTROL PANEL & INTERNAL CONTROLS (PRO)

JJW9830DDP 02 – CONTROL PANEL & INTERNAL CONTROLS (PRO)

Written by

in

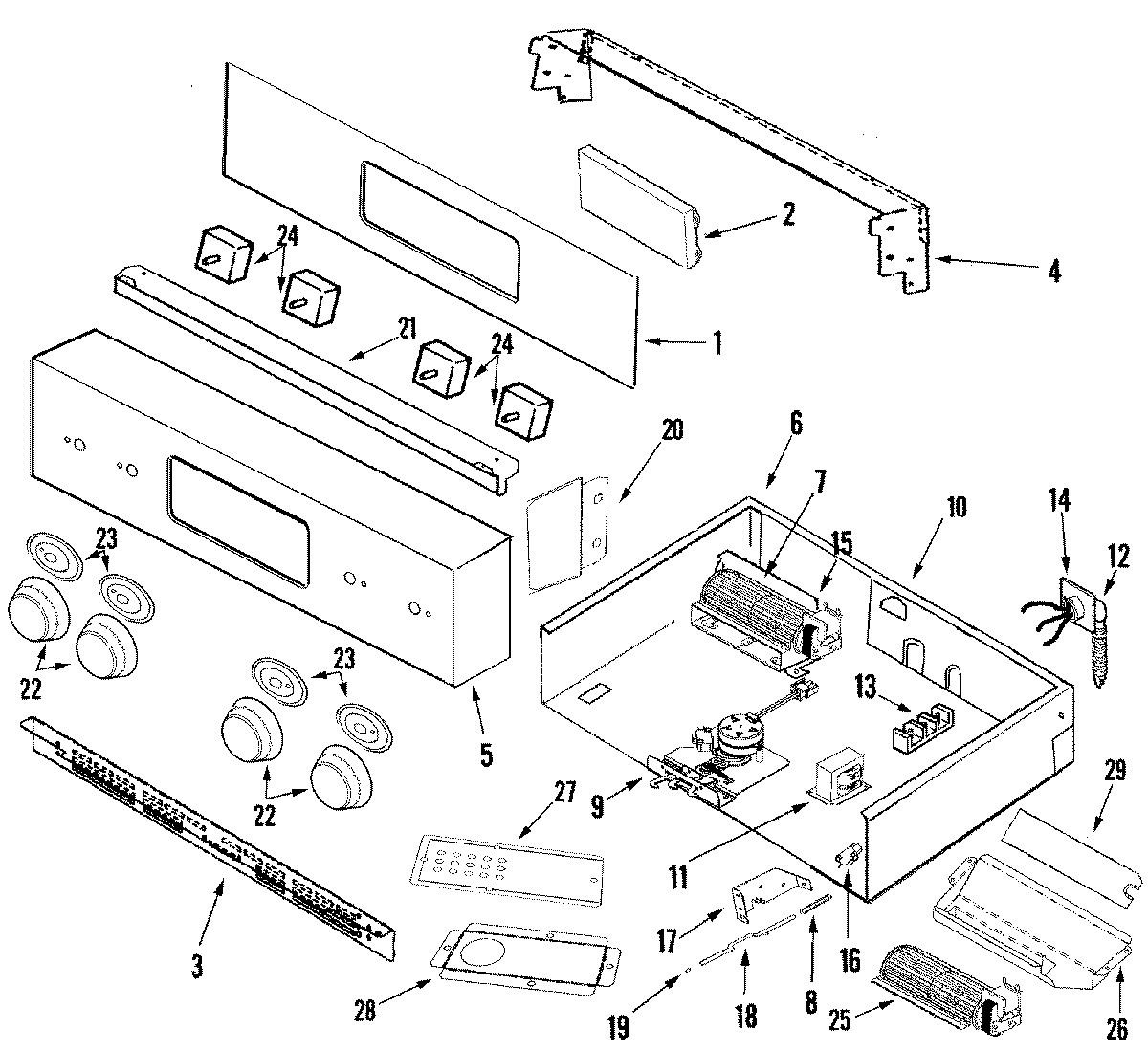

JJW9830DDP 02 – CONTROL PANEL & INTERNAL CONTROLS (PRO)

Products

PositionProduct
1MAY 74008478
2MAY 74009720
2MAY 74008516
3MAY 74008491
4MAY 74008362
5MAY 74008486
5MAY 7720P542-60
6MAY 74008360
6MAY 74008359
7WP74008383 Whirlpool Tangential Fan
9WPW10186996 Whirlpool Door Latch
10MAY 74008382
10PANEL, CONTROL BOX REAR
11MAY 74005416
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12MAY 74004726
12MAY 74004222
13KIT, HARDWARE ADAPTER
13MAY 7417P017-60
13WPW10245259 Whirlpool Terminal Block
13WP7103P027-60 Whirlpool Nut
14MAY 74004712
15MAY 74008343
16MAY 74008264
16WP74008263 Whirlpool Door Switch
16MAY 7101P330-60
17BRACKET, SWITCH ACTUATOR
18ROD, DOOR LIGHT SWITCH
19MAY 74007586
20MAY 74008482
21MAY 74008487
22MAY 74008493
23MAY Y704977
23MAY 74008494
24MAY 74008488
25MAY 74008437
26MAY 74008432
27MAY 74008444
28MAY 74008445
28WP90767 Whirlpool Screw
29MAY 74008451
