JK25*02

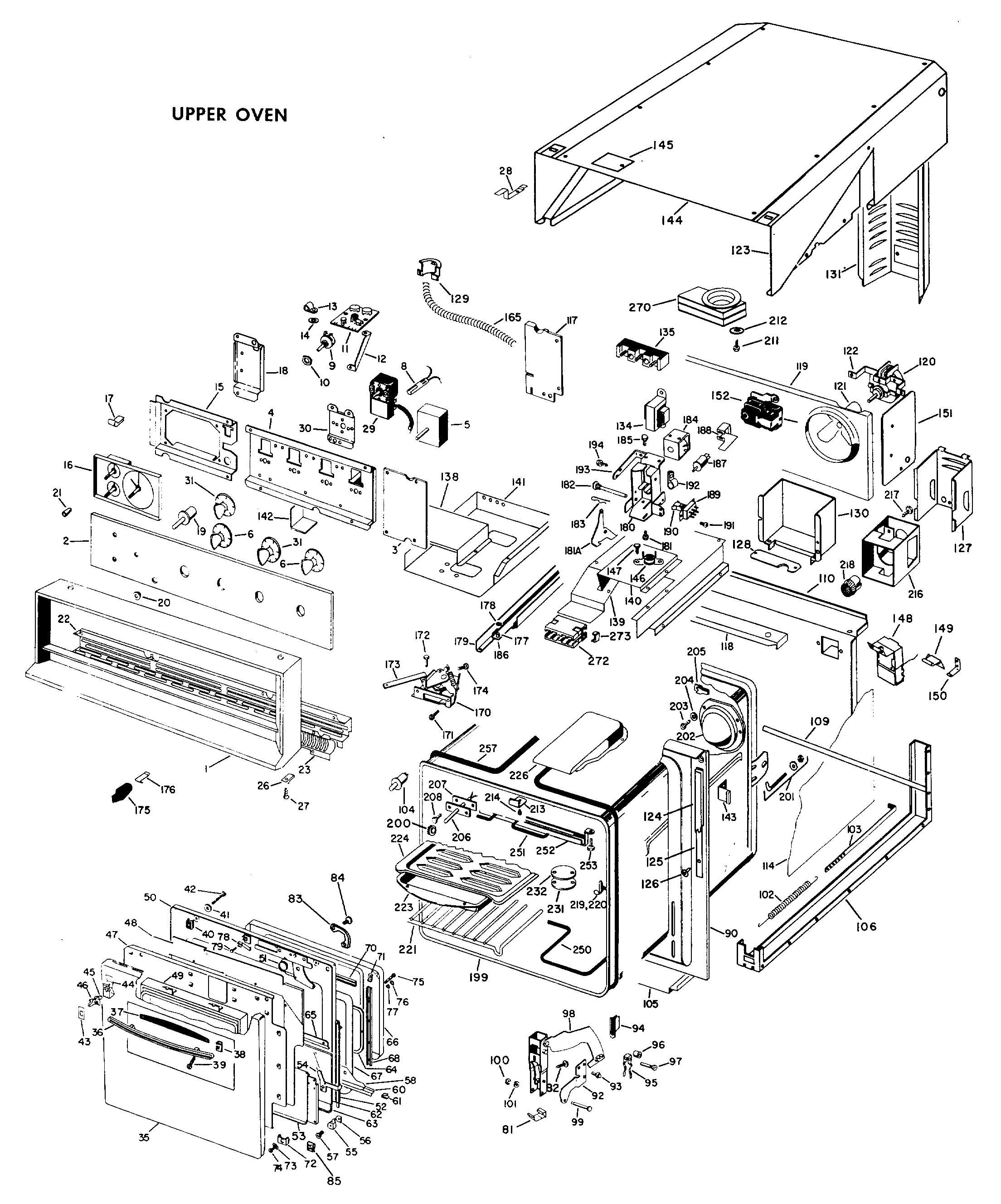

Products

Position	Product
1	GEN WB07X0634
2	GEN WB36X0334
3	GEN WB02X1970
4	GEN WB02X2389
5	GEN WB22X0031
5	GEN WB22X0053
6	GEN WB03X0318
6	GEN WB03X0315
8	NEON LAMP – 240V
8	NEON LAMP 118V
9	GEN WB24X0153
10	GEN WB01X0443
11	GEN WB24X0151
12	GEN WB02X2409
12	SCR 6-20 AB HXW 1/4 S
13	CLAMP, HARNESS
14	GEN WB01X0445
15	GEN WB01X0239
15	TIMER BRACKET
16	GEN WB19X0080
16	GEN WZ07X0086
17	GEN WB02X2006
18	GEN WB02X2403
19	SWITCH, LATCH RELEASE
20	TRIM SWITCH
21	GEN WB03X0218
22	GEN WB02X1973
23	GEN WB07X0635
23	GEN WZ05X0132
26	GEN WB02X1119
27	SCREW – MT. TRIM
28	GEN WZ04X0222
28	GEN WB02X1457
28	SCREW MT. BRKT. TO TOP
29	THERMOSTAT, L.O.
29	SCREW MT. SW.
30	GEN WB02X1949
31	PM3X122 GE Electric Oven Universal Knob Kit
35	GEN WB02X2267
35	GEN WB56X0848
35	GEN WB56X0832
35	GEN WB56X0787
35	GEN WB56X0786
35	GEN WB56X0782
36	GEN WB15X0121
37	GEN WB07X0519
38	GEN WB01X0440
39	WZ4X245D GE Screw Package
40	GEN WB01X0439
41	WB1X119D GE Oven Range Washer
42	GEN WZ02X0492
43	TRIM PLATE
44	GEN WB02X2249
45	GEN WB02X2250
46	GEN WB02X2248
47	GEN WB55X0227
48	GEN WB55X0223
49	GEN WB36X0270
50	GEN WB55X0342
50	GEN WB55X0327
50	GEN WB55X0229
51	GEN WB09X0099
52	GUIDE ASM. RH
52	GUIDE ASM. LH
53	GEN WB55X0218
54	GEN WB02X2273
54	SCR 8-32 M PT 1/4 S
54	GEN WB02X2272
55	GEN WB02X2255
56	SIDE CLIP
57	SCREW 6-32X1/2 TERM. BLOCK MTG
58	GEN WB02X2269
60	GEN WB02X2274
61	GEN WB02X1132
62	GEN WB36X0277
63	GEN WB02X2257
64	GEN WB07X0693
65	GEN WB02X2275
65	WZ4X230D GE Screw Package 12
66	GEN WB55X0230
66	GEN WB02X2276
66	GEN WB02X2270
66	GEN WB55X0326
67	WB2X3138 GE Oven Self-Clean Door Gasket
67	GEN WB02X2076
68	CHNL. LONG SIDE (02-03)
70	GEN WB02X2009
70	CHNL. SHORT SIDE (02-03)
71	SCR 8-18 B HXW 3/8 S
71	BRACKET (02-03)
72	BRACKET (02-03)
73	WASHER (02-03)
74	WZ4X345D GE Screw Package 12 C92
74	SCR 8-18 AB OVR 3/4 S
75	GEN WB02X1799
76	GEN WZ10
81	GEN WB02X1867
300	GEN WB56X0854
310	UNKNOWN
310	UNKNOWN
320	GEN WB01X0351
330	GEN WB02X1460
340	SPRING HINGE LEVER
350	GEN WB02X1462
360	SCREW
370	GEN WB10X0123
370	GEN WB10X0122
380	PIN HINGE
390	RING RETAINING
400	GEN WZ10X0017
410	GEN WB09X0093
420	DOOR SPRING
430	GEN WB01X0292
430	GEN WB01X0295
440	SWITCH, OVEN LIGHT
480	GEN WB59X0068
490	GEN WB59X0061
500	CHANNEL BOTTOM
550	GUARD TERMINAL
560	GEN WB01X0284
570	GEN WB59X0108
580	GUARD
630	GEN WB02X2064
640	GEN WB07X0673
640	GEN WZ04X0237
641	GEN WB07X0729
643	GUARD SIDE
644	GEN WB07X0728
645	GEN WB59X0106
646	SPACER BOTTOM
648	ANGLE REAR
700	DOOR PANEL-WHITE
700	GEN WB56X1094
700	GEN WB56X1093
700	GEN WB56X1092
700	DOOR PANEL-HARVEST
700	GEN WB56X1091
700	GEN WB56X1095
700	DOOR PANEL-AVOCADO
700	DOOR PANEL-DK. COOPER
700	DOOR PANEL-BRUSHED CHROM
701	GEN WB55X0323
701	DOOR LINER
702	LINER SPACER
703	GEN WZ04X0346
703	GEN WB02X2942
708	SPRING
711	GEN WB36X0076
711	GEN WB36X0413
712	GEN WB02X1445
712	GEN WB02X2902
712	SCREW MT. GUIDE L.L.H. –
713	LINK
714	GEN WB02X2918
900	GEN WB02X1113
900	GEN WB53X0159
900	GEN WB53X0196
902	WB2X2058 GE Oven Gasket
903	TRIM CLIP
904	GEN WB01X0294
905	GEN WB08X0178
906	GEN WB02X1083
907	SCREW
909	RACK OVEN
910	GEN WZ04X0289
910	GEN WB38X0071
911	GEN WB04X0282
911	VENT ASM
912	WB36X192 GE Oven Light Cover
913	GEN WB02X2885
950	REPLACEMENT FOOT
950	BAKE ELEMENT
951	GEN WB02X1131
951	GASKET BROIL UNIT
951	SCREW MTG. SUPPORT
951	WB44X134 GE Oven Broil Element
951	GEN WB02X1542
