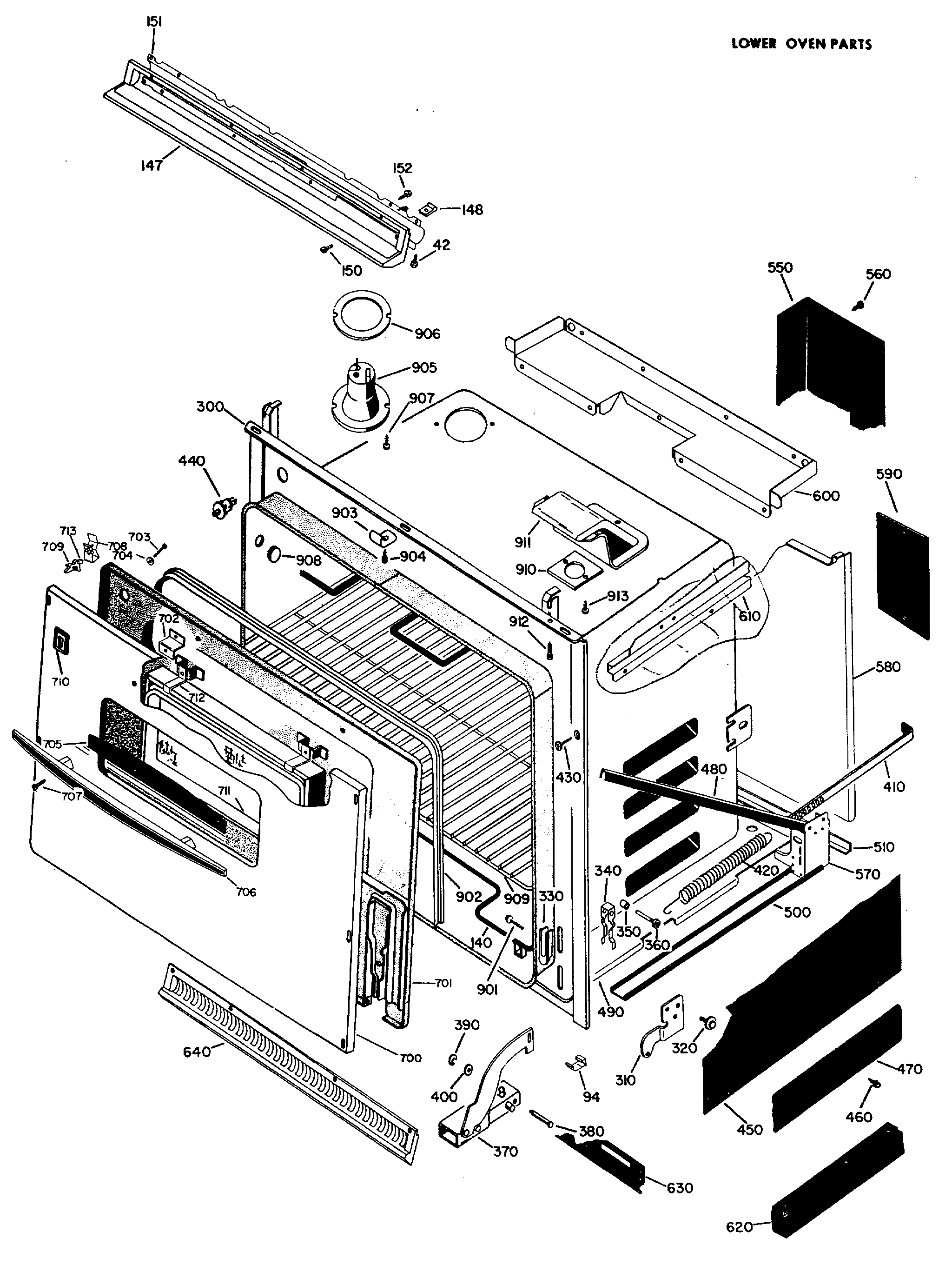

JK2501 1

Products

Position	Product
42	GEN WZ02X0492
140	GEN WB02X2408
147	GEN WB07X0729
148	GEN WB02X1119
151	GEN WB07X0728
152	GEN WZ05X0132
300	GEN WB56X0854
310	UNKNOWN
310	UNKNOWN
320	GEN WB01X0351
330	GEN WB02X1460
340	SPRING HINGE LEVER
350	GEN WB02X1462
360	SCREW
370	GEN WB02X1117
370	GEN WB10X0122
370	GEN WB02X1116
370	GEN WB10X0123
370	GEN WB02X1115
380	PIN HINGE
390	RING RETAINING
400	GEN WZ10X0017
410	GEN WB09X0093
420	GEN WB09X0061
420	GEN WB09X0080
430	GEN WB01X0295
430	GEN WB01X0292
440	SWITCH, OVEN LIGHT
450	GUARD SIDE
470	GEN WB59X0106
480	GEN WB59X0068
490	GUARD BOTTOM
500	CHANNEL BOTTOM
510	ANGLE REAR
550	GUARD TERMINAL
570	GEN WB59X0108
580	GUARD
590	GEN WB59X0137
590	GEN WB01X0284
600	GEN WB55X0254
610	GEN WB55X0255
620	SPACER BOTTOM
620	WZ4X345D GE Screw Package 12 C92
630	GEN WB02X2064
640	GEN WZ04X0237
640	GEN WB07X0673
700	DOOR PANEL-AVOCADO
700	DOOR PANEL-WHITE
700	DOOR PANEL-HARVEST
700	GEN WB02X1640
700	DOOR PANEL-DK. COOPER
700	DOOR PANEL-BRUSHED CHROM
701	DOOR LINER
702	LINER SPACER
704	WB1X119D GE Oven Range Washer
705	GEN WB07X0519
706	GEN WB15X0092
707	WZ4X245D GE Screw Package
708	SPRING
709	GEN WB02X2248
710	TRIM PLATE
711	GEN WB36X0076
712	SCREW MT. GUIDE L.L.H. –
712	GEN WB02X1445
713	LINK
901	GEN WB01X0419
902	WB2X2058 GE Oven Gasket
903	TRIM CLIP
904	GEN WB01X0294
905	GEN WB08X0142
906	GEN WB02X1083
907	SCREW
908	GEN WB02X1126
908	PLUG BUTTON CAP TUBE
908	PLUG BUTTON RECEPTACLE
909	RACK OVEN
910	GASKET VENT
911	VENT ASM
912	SCREW
913	SCREW-VENT LINER
