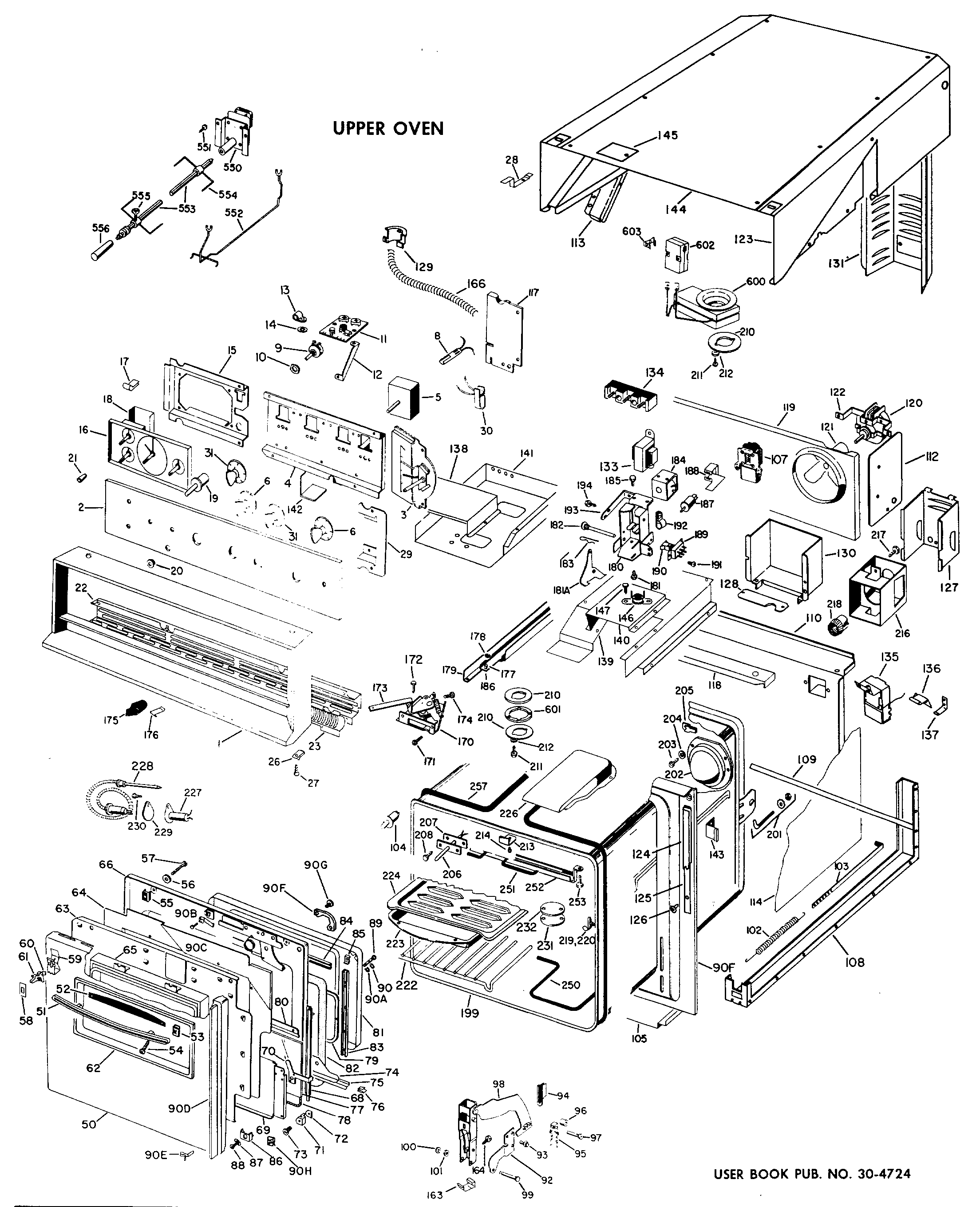

JK29*07 UPPER OVEN

JK29*07 UPPER OVEN

Written by

in

JK29*07 UPPER OVEN

Products

Position	Product
1	GEN WB07X0634
2	GEN WB36X0236
3	GEN WB20X0038
4	GEN WB02X2120
5	SCREW MT. SW.
5	GEN WB22X0055
5	GEN WB22X0053
6	GEN WB03X0317
6	GEN WB03X0315
8	NEON LAMP – 240V
8	NEON LAMP 118V
9	GEN WB24X0153
10	GEN WB01X0443
11	GEN WB24X0151
12	SCR 6-20 AB HXW 1/4 S
12	GEN WB02X2409
13	CLAMP, HARNESS
14	GEN WB01X0445
15	GEN WB02X2079
16	GEN WB19X0083
17	GEN WB02X2006
18	GEN WB02X2007
19	SWITCH, LATCH RELEASE
20	TRIM SWITCH
21	GEN WB03X0218
22	GEN WB02X1973
23	GEN WB07X0635
23	GEN WZ05X0132
24	GEN WB07X0598
26	GEN WB02X1119
27	SCREW – MT. TRIM
28	GEN WB02X1457
28	SCREW MT. BRKT. TO TOP
28	GEN WZ04X0222
29	GEN WB02X2407
30	GEN WB08X0163
31	PM3X122 GE Electric Oven Universal Knob Kit
50	GEN WB56X0778
50	GEN WB56X0776
50	GEN WB56X0777
50	GEN WB56X0849
50	GEN WB56X0772
50	GEN WB02X2267
51	GEN WB15X0121
52	GEN WB07X0519
53	GEN WB01X0440
54	WZ4X245D GE Screw Package
55	GEN WB01X0439
56	WB1X119D GE Oven Range Washer
57	GEN WZ02X0492
58	TRIM PLATE
59	GEN WB02X2249
60	GEN WB02X2250
61	GEN WB02X2248
62	GEN WB07X0695
62	GEN WB01X0239
63	GEN WB55X0227
63	GEN WB02X1867
64	GEN WB55X0223
65	GEN WB36X0270
66	GEN WB55X0229
66	GEN WB55X0327
66	GEN WB55X0342
67	GEN WB09X0099
68	GUIDE ASM. RH
68	WZ4X345D GE Screw Package 12 C92
68	GUIDE ASM. LH
69	GEN WB55X0218
70	SCR 8-32 M PT 1/4 S
70	GEN WB02X2273
70	GEN WB02X2272
71	GEN WB02X2255
72	SIDE CLIP
73	SCREW 6-32X1/2 TERM. BLOCK MTG
74	GEN WB04X0231
74	GEN WB02X2269
75	GEN WB02X2274
76	GEN WB02X1132
77	GEN WB36X0277
78	GEN WB02X2257
79	GEN WB07X0693
80	GEN WB02X2275
80	WZ4X230D GE Screw Package 12
81	GEN WB55X0230
81	GEN WB02X2276
81	GEN WB55X0326
81	GEN WB02X2270
82	GEN WB02X2076
82	WB2X3138 GE Oven Self-Clean Door Gasket
83	CHNL. LONG SIDE (02-03)
84	CHNL. SHORT SIDE (02-03)
84	GEN WB02X2009
85	SCR 8-18 B HXW 3/8 S
85	BRACKET (02-03)
86	GEN WB02
