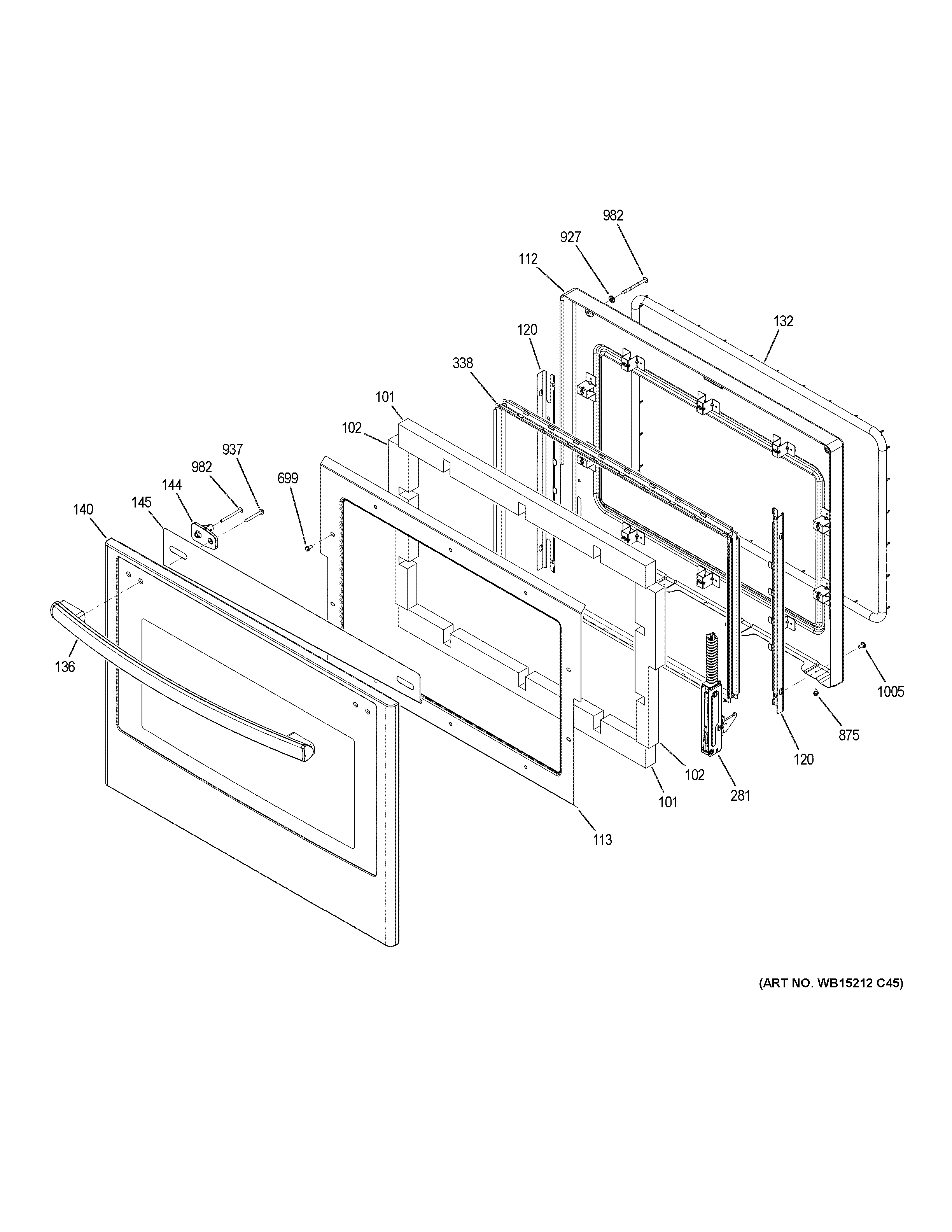

JK3800DH8BB DOOR

Products

Position	Product
102	WB35X31513 GE Door Side Insulation
112	WB63X32570 GE Oven Door Liner Assembly
113	WB34X31515 GE Door Insulation Retainer
120	LINER SUPPORT
132	WB35X34867 GE Oven Door Gasket
136	BLACK HANDLE ASM
140	WB56X33230 GE Oven Black Lower Outer Door Assembly
144	SUPPORT HANDLE
145	WB34T10143 GE Oven Deflector Door
281	WB10X30577 GE Oven Right Door Hinge
281	WB10X30578 GE Oven Left Door Hinge
338	WB56X27502 GE Oven Inner Door Glass
699	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
927	WB02X32440 GE Washer Contoured
937	WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
982	WB01X34649 GE Screw 10-18 Pl Tread 20 3/4 S
1005	WB01T10008 GE Oven Screw 10-32
