JK3800DH8WW INSULATOR PARTS

JK3800DH8WW INSULATOR PARTS

Written by

in

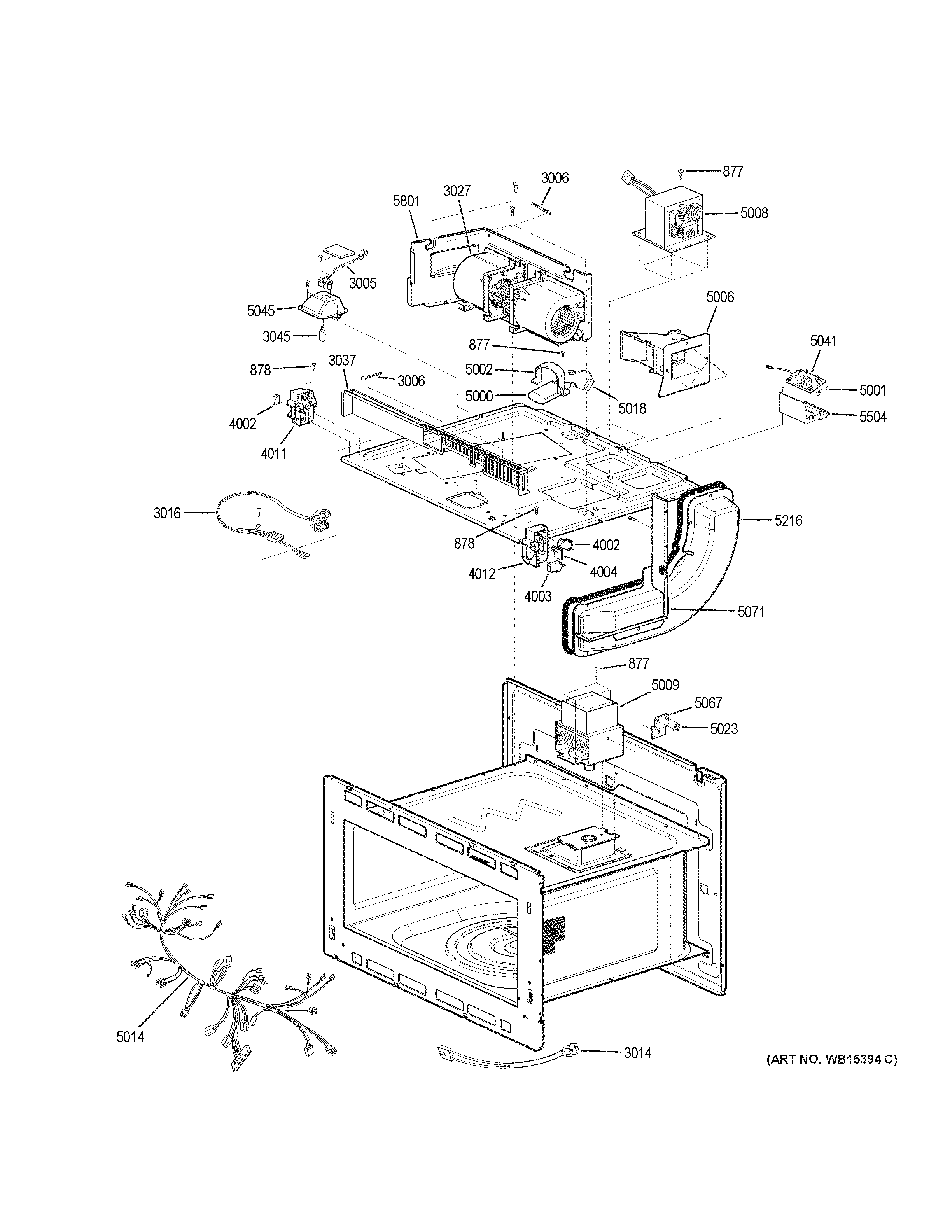

JK3800DH8WW INSULATOR PARTS

Products

PositionProduct
877WB02X10745 GE Binding Head Screw
878WB01X10121 GE Oven Screw
3005WB06X10646 GE Oven Holder Assembly
3006HOLDER WIRE
3014HARNESS WIRE
3016WB18X32611 GE Harness Single
3027WB26X10182 GE Oven Circular Circulation Motor
3037WB34X32592 GE Microwave Protector
3045HALOGEN LAMP
4002PRIMARY INTERLOCK SWITCH
4003WB24X25397 GE Oven Interlock Monitor Switch
4004WB02X32588 GE Oven Lever
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
5000WB27X11033 GE Oven High Voltage Capacitor
5001WB27X10928 GE Oven Line Fuse
5002WB02X32593 GE Bracket Capacitor
5006WB34X32607 GE Duct Assembly
5008TRANSFORMER HIGH VOLTAGE
5009MAGNETRON
5014WB18X32610 GE Wire Harness
5018DIODE-CABLE
5023WB20X10048 GE Oven Thermostat
5041WB02X35865 GE Noise Filter Board
5045WB34X32583 GE Light Cover
5067WB06X10570 GE Microwave Bracket
5071WB02X32590 GE Barrier Bracket
5216WB34X32594 GE Duct Assembly
5504SUPPORTER
5801WB02X32599 GE Motor Bracket
