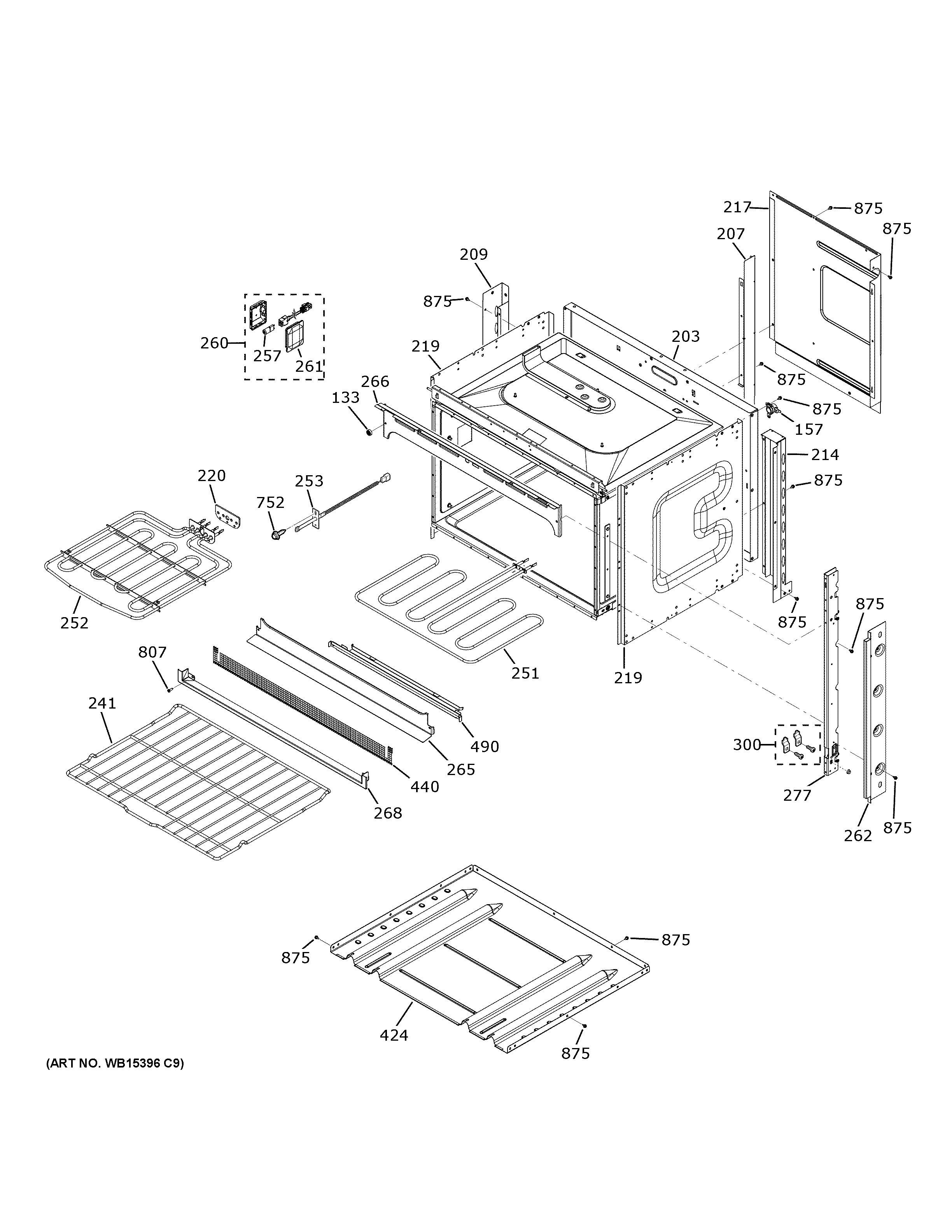

JK3800SH9SS BODY PARTS

JK3800SH9SS BODY PARTS

Written by

in

JK3800SH9SS BODY PARTS

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203RETAINER INSLN BACK
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB34X21912 GE Channel Rear Right
217WB34T10135 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
220WB35X21972 GE Broil Element Gasket
241WB48X32180 GE Oven Rack Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
260WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07T10732 GE Oven Vertical Side Trim (Black)
265WB07T10807 GE Oven Lower Black Trim Vent
266WB07X21911 GE Oven Upper Vent Trim
268WB07X32860 GE Oven Bottom Trim
277WB07X21905 GE Right Vertical Brace Assembly
277BRACE VERT SIDE (LT)
300WB49X21652 GE Oven Hinge Bracket Assembly
424WB34T10155 GE Oven Bottom Air Duct Cover
440SCREEN SUPPORT
490WB55T10195 GE Oven Hidden Bake Cover
752WB01X21742 GE Screw
807WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
875WH2X930 GE Screw
