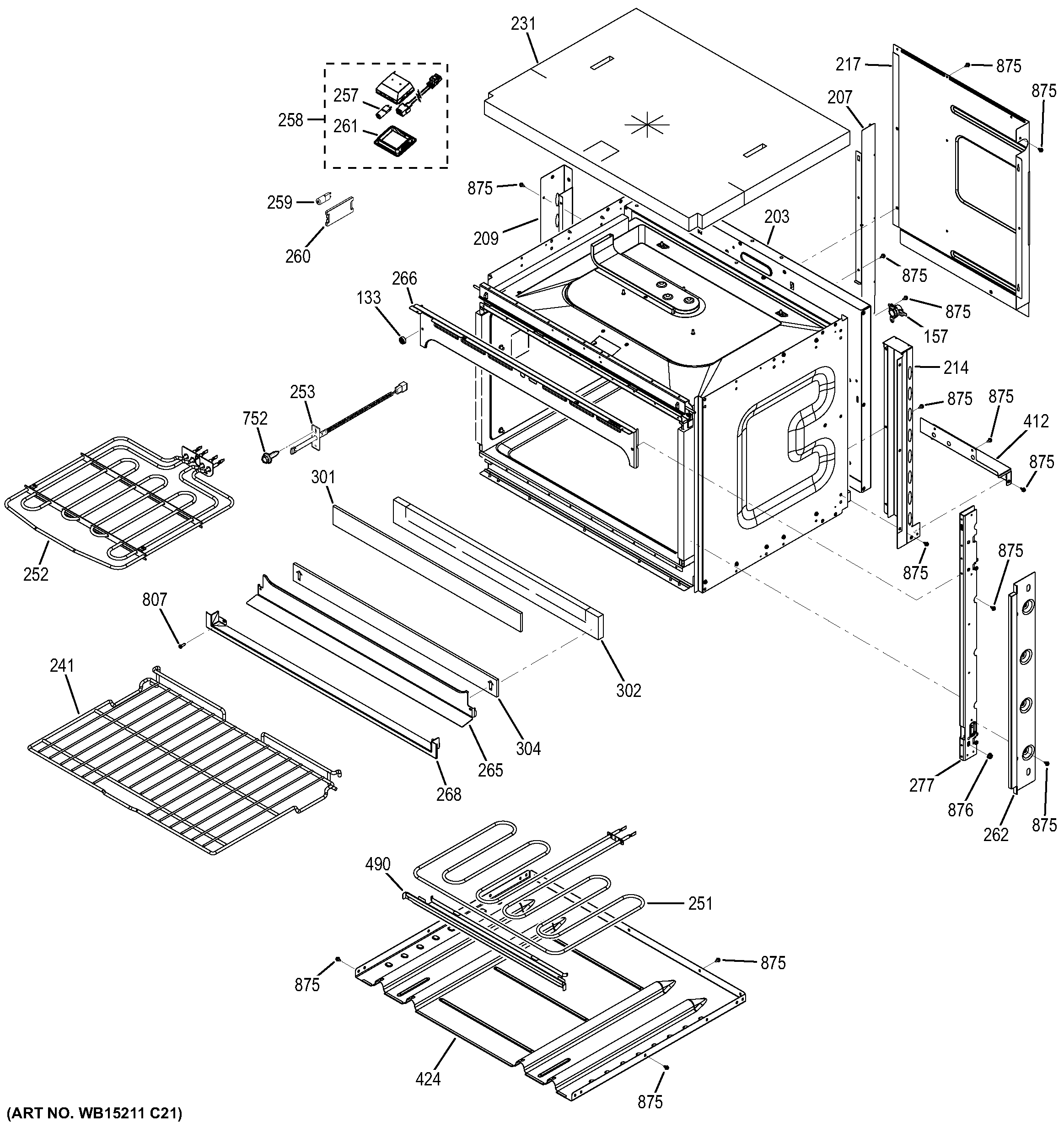

JK5000DF1WW BODY PARTS

JK5000DF1WW BODY PARTS

Written by

in

JK5000DF1WW BODY PARTS

Products

PositionProduct
133WB03T10341 GE Oven Door Bumper
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
207WB34T10134 GE Center Air Divider
209WB34T10133 GE Rear Left Air Channel
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
231GEN WB35T10267
241WB48X32180 GE Oven Rack Assembly
251WB44T10125 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X20199 GE Oven Halogen Lamp Assembly
259WB25T10101 GE Oven Halogen Lamp Bulb G9
260LENS OVEN LIGHT
261WB34T10145 GE Oven Light Lens
262WB07X11404 GE Oven Vertical Side Trim (White)
265WB07T10807 GE Oven Lower Black Trim Vent
266WB07T10806 GE Upper Vent Trim
268WB07T10780 GE Oven Bottom Cabinet Trim White
277WB07T10750 GE Oven Right Vertical Brace
277WB07T10751 GE Oven Vertical Left Brace Black
301GEN WB35T10268
302GEN WB35T10269
304WB35T10275 GE Bottom Trim Insulation
412WB34T10151 GE Air Duct Lower Right Cover
424WB34T10155 GE Oven Bottom Air Duct Cover
490WB55T10195 GE Oven Hidden Bake Cover
807WR01X10788 GE White Screw
875WH2X930 GE Screw
876LOCK NUT
