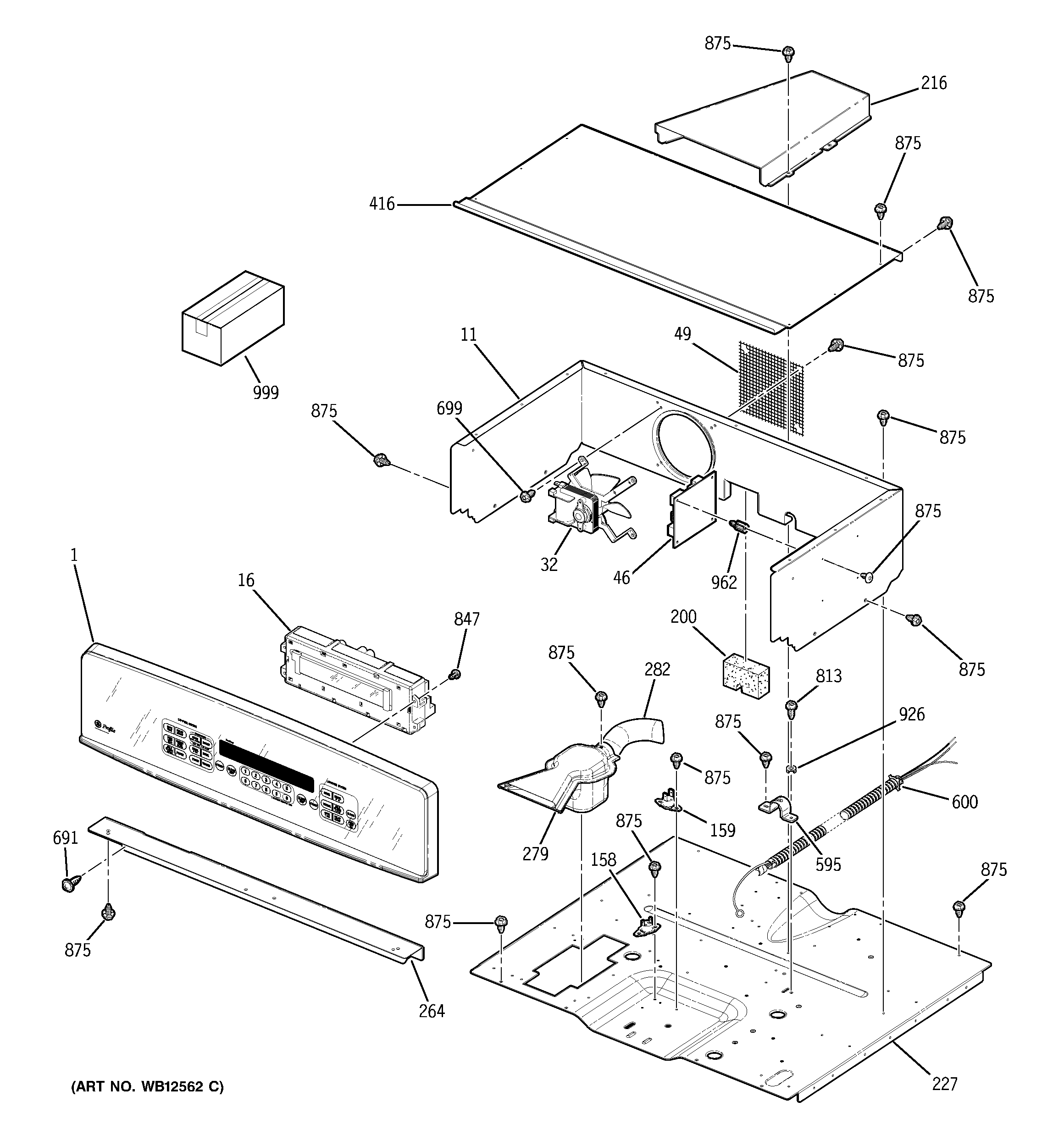

JK955BF3BB CONTROL PANEL & COOKTOP

JK955BF3BB CONTROL PANEL & COOKTOP

Written by

in

JK955BF3BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10611
11GEN WB02T10158
16WB27T10429 GE Oven Control ERC3DD
16GEN WB27T10438
32GEN WB64T10028
32WB26T10018 GE Oven Fan Motor
46WB27T10569 GE Oven Range Control Board
49WB34T10091 GE Oven Fan Screen
158GEN WB24T10076
158WB24T10067 GE Oven Limit Switch Lower
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10307
264GEN WB07T10324
279WB38T10019 GE Oven Vent Box Assembly
282GEN WB28T10082
282WB38X33650 GE Vent Tube
282DUCT VNT INLET-UPR
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
962GEN WB18T10269
999GEN WB18T10364
999GEN 31-14022
999GEN 31-10551
999GEN 49-80130
999WB18T10342 GE Oven Logic/Display Harness
999GEN 31-10514
999GEN 31-10523
