JK955BF7BB CONTROL PANEL & COOKTOP

JK955BF7BB CONTROL PANEL & COOKTOP

Written by

in

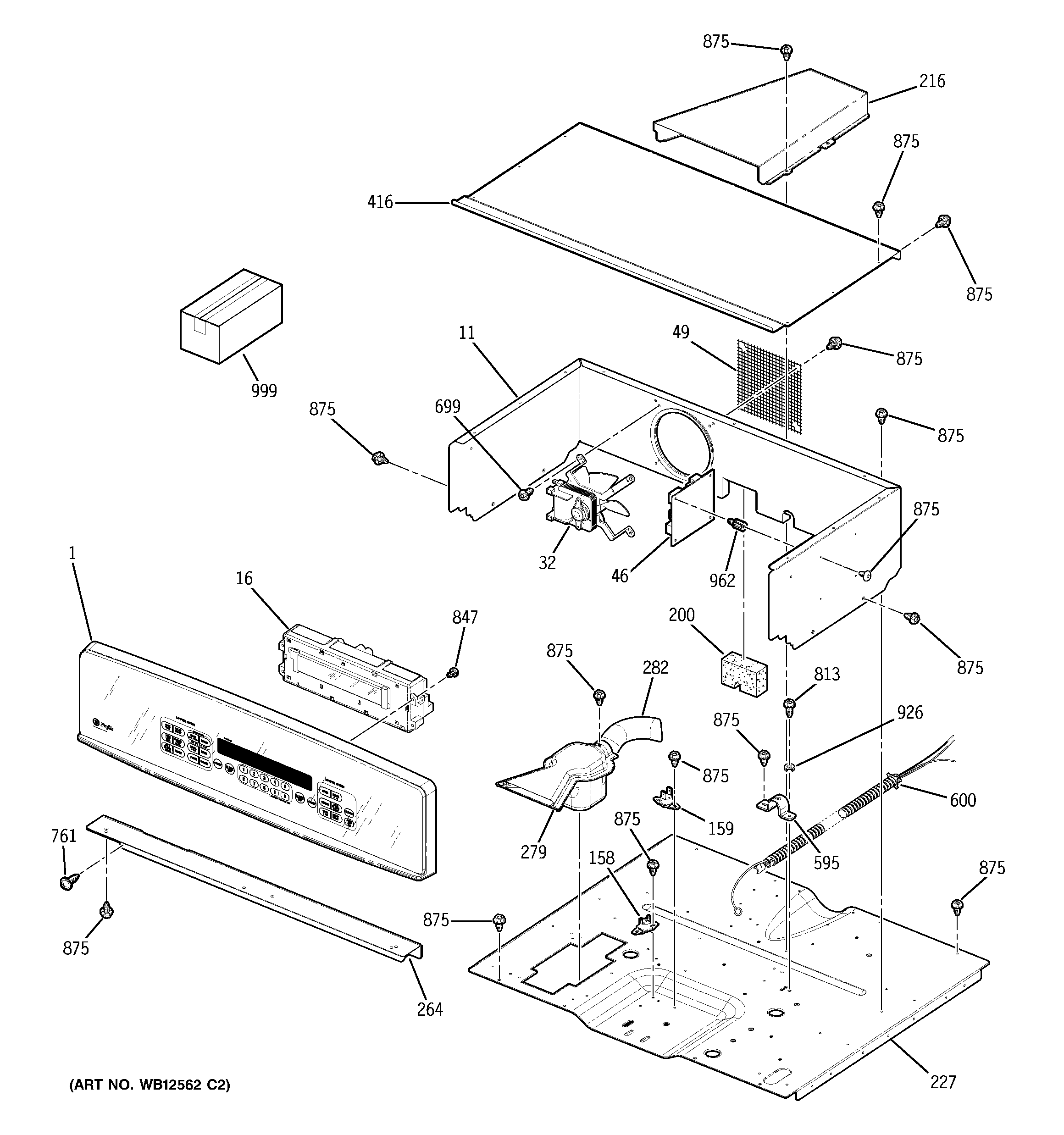

JK955BF7BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB36T10868
11GEN WB02T10158
16GEN WB27T10648
32WB26K5061 GE Oven Upper Fan Assembly
46WB27T10569 GE Oven Range Control Board
49WB34T10091 GE Oven Fan Screen
158WB24T10067 GE Oven Limit Switch Lower
158GEN WB24T10076
159WB24T10060 GE Oven Safety Thermostat
200GEN WB02T10167
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10159
264GEN WB07T10307
279WB38T10019 GE Oven Vent Box Assembly
282WB38X33650 GE Vent Tube
282GEN WB28T10082
282DUCT VNT INLET-UPR
416GEN WB35T10060
595WB2K5126 GE Oven Condenser Clamp
600WB18T10225 GE Oven Wire Conduit Assembly
699WB1M1 GE Oven Screw
761WB1K5029 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
926GROUND WASHER
962WB02T10160 GE Oven Circuit Board Standoff
999GEN 31-10523
999GEN 31-14022
999GEN 49-80334
999WB18T10371 GE Oven Ribbon Connector GLS Touch
999GEN 31-10551
999GEN 31-10514
