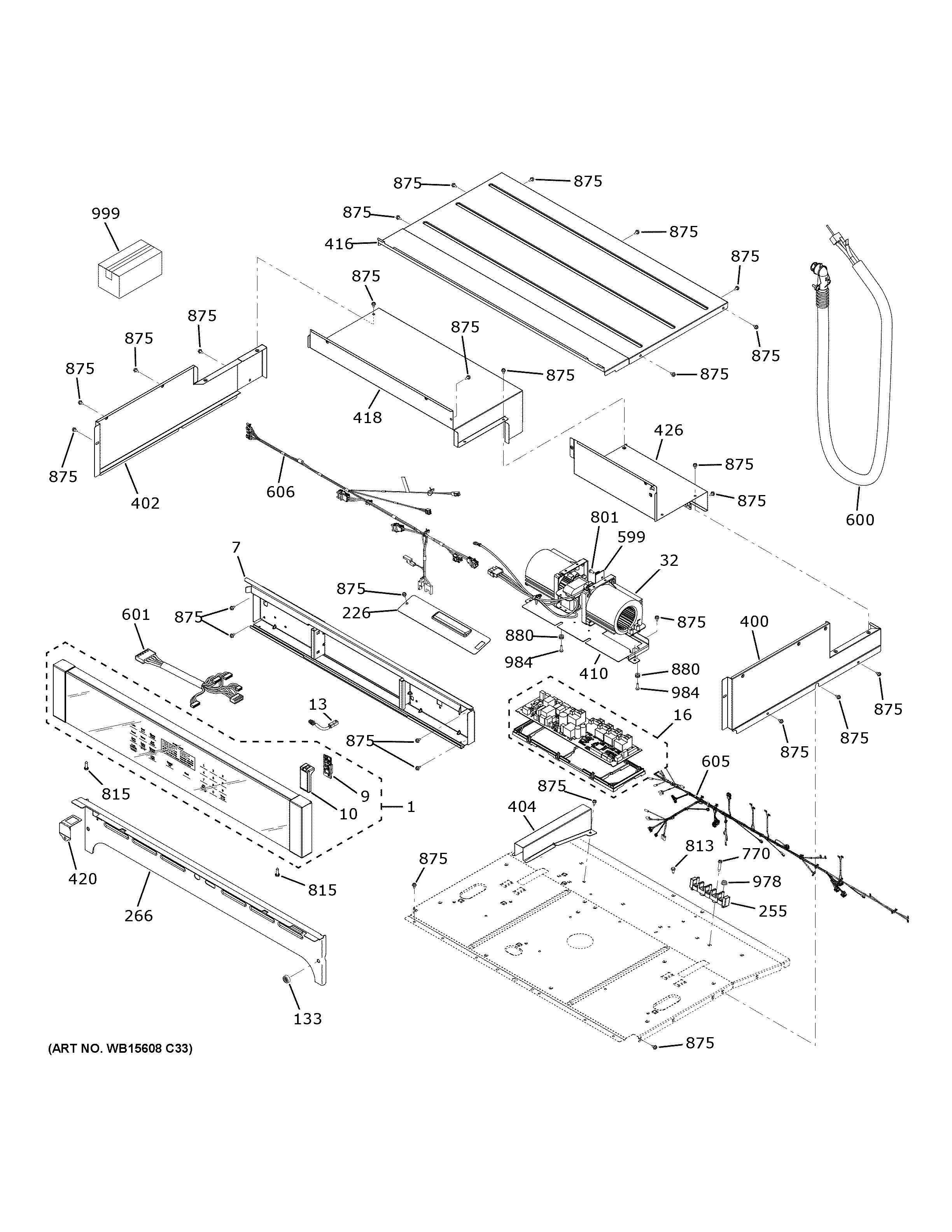

JKD3000DN1WW CONTROL PANELadmin2025-04-26T10:43:53+00:00JKD3000DN1WW CONTROL PANEL ProductsPositionProduct1WB27X39824 GE White UI LCD Control Panel7WB07X32470 GE Control Panel Mounting BRack9WB27X33353 GE Wi-Fi Module Kit10WB02X20265 GE Transceiver Housing13WB18X30704 GE Jumper16WB27X36811 GE Control Flash32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper226WB34T10161 GE Access Latch Cover255WB17K10001 GE Oven Block Terminal266WB07X33065 GE Upper Vent Trim400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34T10159 GE Oven Top Front Cover418TOP REAR COVER420WB24X33028 GE RJ45 Bracket426COVER WIRE REAR599WB27T11463 GE Oven Fan Sensor Board600WB18X33486 GE Conduit Wire Assembly600WB18T10574 GE Oven Wire Conduit Assembly601WB18X33043 GE COM Harness Wire605WB49X35794 GE Double Oven Main Harness606WB18X33042 GE Dishwasher Latch COM Harness Wire606WB18X47029 GE Latch Wire Harness770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WB1X1261 GE Oven Screw815WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999PM WI FI INSTRUCTIONS999PM INSTALL INSTRUCTIONS999PM OWNERS MANUAL999PM MINI MANUAL AND WIRING999MANUAL U&C TIP SHEET999INSTRUCTION INSTALL
