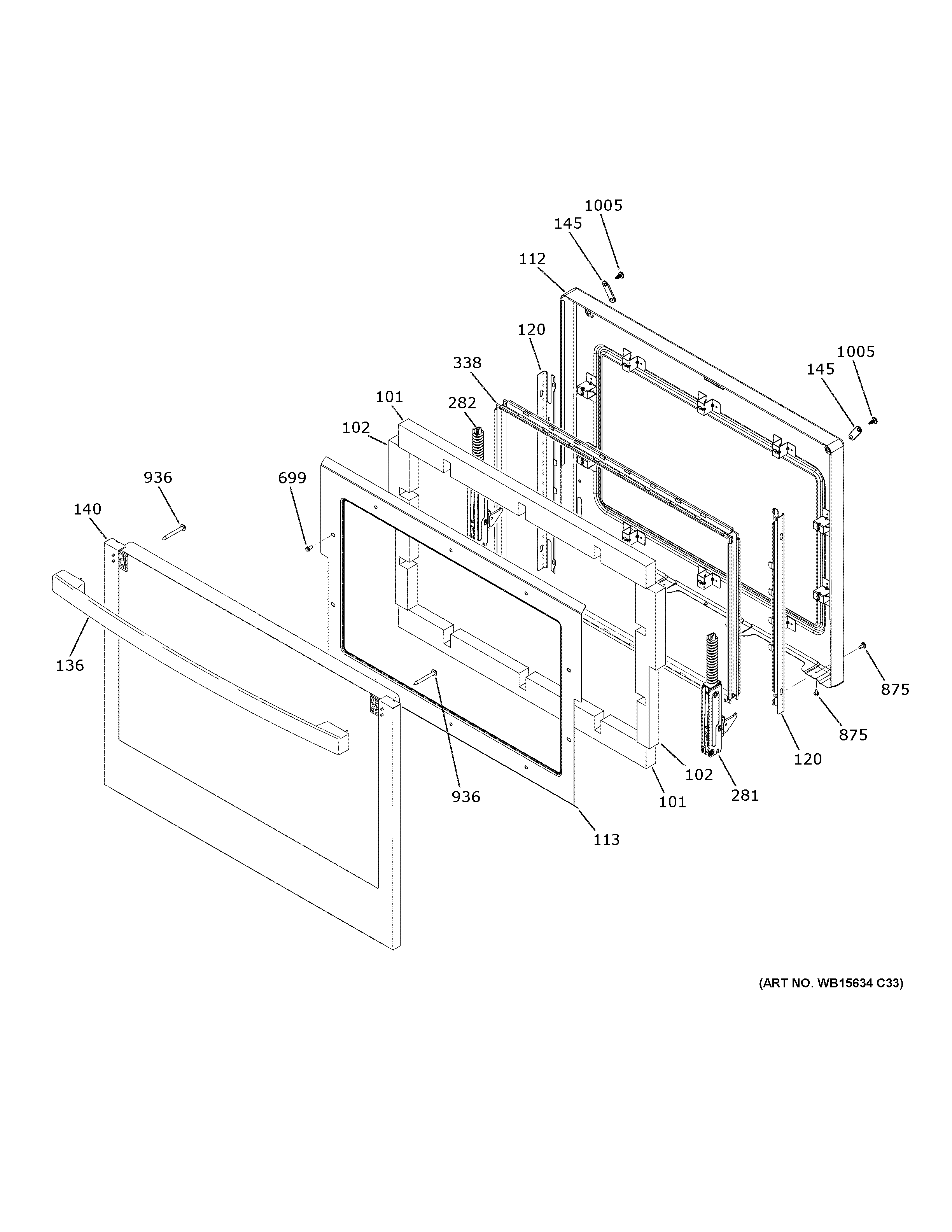

JKD3000DN3WW UPPER DOOR

JKD3000DN3WW UPPER DOOR

Written by

in

JKD3000DN3WW UPPER DOOR

Products

PositionProduct
102WB35X31513 GE Door Side Insulation
112WB63X32570 GE Oven Door Liner Assembly
113WB34X31515 GE Door Insulation Retainer
120LINER SUPPORT
136WB15X32868 GE White Handle and End Cap
140OUTER DOOR W/O BADGE-WHITE
145WB02X32816 GE Oven Door Liner Plug
281WB10X30577 GE Oven Right Door Hinge
282WB10X30578 GE Oven Left Door Hinge
338WB56X27502 GE Oven Inner Door Glass
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
936WB01T10132 GE Oven Hex Screw 10-32 1 3/4"
1005WB01T10008 GE Oven Screw 10-32
